• Model NO.：GY-G -004
• Fishing Gear Winch Type：N
• Fishing Auxiliary Machinery Type：N
• Certification：CE, QC
• Condition：New
• Finished processing machinery：by CNC Machine
• Material：Gears by 20crmnti
• Transport Package：Cartoon or Wooden
• Specification：1hp,2hp,3hp
• Origin：Made in China
• Production Capacity：2000PCS ,Mon

No.

Item Name

Quantity

Reference

1

Motor

1 set

1/2/3/4HP, cast iron body with 100% copper wire

2

Reducer

1 set

Arcuate-bevel gear, cast Iron body, ratio 1: 14,print two colors for  protecting the gearbox in working

5

Shaft

1

304# Stainless steel

6

BOX

1PC

STEEL

7

 GEARBOX Cover

1PC

new plastic

8

gears



20CRMNTI

10

Screw And Nut

1bag

SS

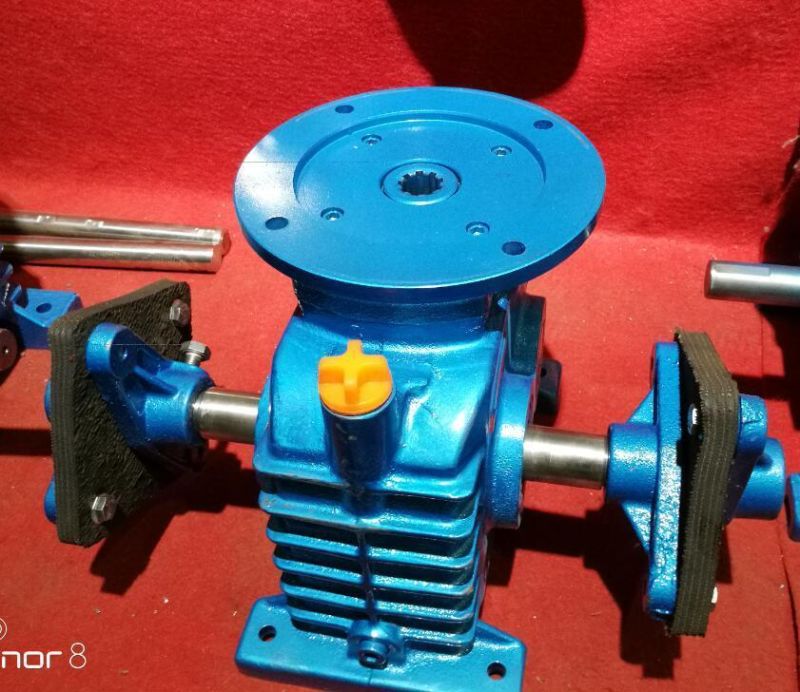

Gearbox fit for those model paddle wheel aerator :


Model	Motor power KW	Capacity of oxygen enrichment kg/h	Power efficiency kg/(h·kW)	Suit for water area(M2)	Noise dB(A)
YC-0.75	0.75	≥1.1	≥1.25	666~3996	≤78
YC-1.5	1.5	≥1.9	≥1.25	1998~6666	≤80
YC-2.2	2.2	≥2.0	≥1.5	2664~7992	≤80
YC-3.0	3.0	≥2.2	≥1.5	3330~9990	≤80

Gearbox works for Paddle wheel aerator ,and Paddle Wheel Aerator is normally used in shrimp or fish ponds for increasing dissolved oxygen and improving the water′s quality, which can prevent fish and shrimp from dying because of oxygen shortage. Meantime, Paddle Wheel Aerator could improve the fish and shrimp′s living conditions, increase cultivation thickness and speed up the fish and shrimp′s growth. It is a necessary machine for aqua culture.
