• Model NO.：RM500JOY
• Max . Splitting Force：30ton
• Max. Log Dia.：500mm
• Max. Log Length：500mm
• Max. Splitting Lift Height：230mm(Hydraulic)
• Engine Power：24HP Lifan Engine, Electric Start Optional: Gx630h
• Hydraulic Feeding：1800X390mm (L* W)
• Firewood Conveyor：Standard Length: 3.5m, Belt Width:300mm
• Control Type：Joystick
• Cycle Time：6s
• Cylinder Size：4.5 Inch
• Saw Working Length：24′′
• Saw Speed：10000rpm
• Hydraulic Pump Flow：50L,Min
• Hydraulic Tank Capacity：40L
• Transport Package：Wooden Box
• Specification：1000kg
• Trademark：RIMA
• Origin：China
• HS Code：846590000
• Production Capacity：100pieces,Month

Basic Info.

Model NO. RM500JOY Max . Splitting Force 30ton Max. Log Dia. 500mm Max. Log Length 500mm Max. Splitting Lift Height 230mm(Hydraulic) Engine Power 24HP Lifan Engine, Electric Start Optional: Gx630h Hydraulic Feeding 1800X390mm (L* W) Firewood Conveyor Standard Length: 3.5m, Belt Width:300mm Control Type Joystick Cycle Time 6s Cylinder Size 4.5 Inch Saw Working Length 24′′ Saw Speed 10000rpm Hydraulic Pump Flow 50L/Min Hydraulic Tank Capacity 40L Transport Package Wooden Box Specification 1000kg Trademark RIMA Origin China HS Code 846590000 Production Capacity 100pieces/Month

Product Description

Product Description

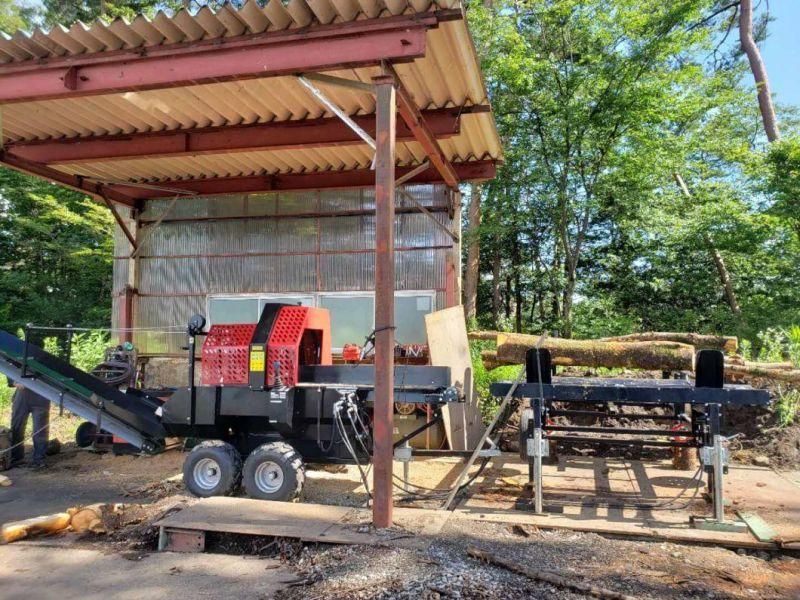

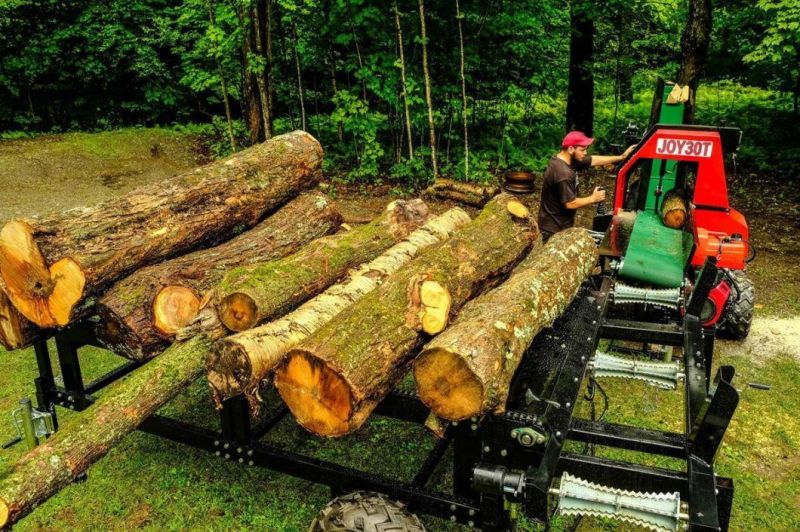

RM500 JOY firewood processor is designed to be operated by a single worker. It can handle 53cm logs up to 33cm in diameter and features a super fast, 6 second cycle time. The firewood processor also has 188F LIFAN gas engine and comes standard with a 4 way wedge. Optional accessories include a log conveyor, 6-way wedge, 14HP KOHLER gas engine, hydraulic feeding, and log lifter or log table.

Model	RM500 JOY
Max . Splitting Force	30Ton
Max. Log Dia.	500mm
Max. Log Length	500mm
Max. Splitting Lift Height	230mm(hydraulic)
Engine Power	24HP LIFAN Engine, Electric start Optional: GX630HONDA, Electric start
Hydraulic Feeding	1800x390mm (L* W)
Firewood Conveyor	Standard Length: 3.5m, Belt width:300mm
Control Type	Joystick
Cycle Time	6s
Cylinder Size	4.5 inch
Saw Working Length	24"
Saw Speed	10000rpm
Hydraulic Pump Flow	50L/min
Hydraulic Tank Capacity	40L
Knife	6 way
Traction	50mm ball
Wheel	22x11-10 ATV(4pcs)
Weight	1000kg
40" Container	10pcs



Main Features

certificate

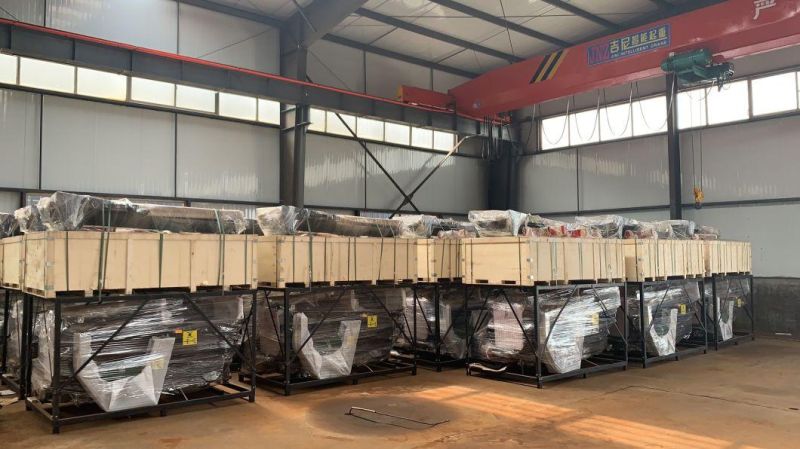

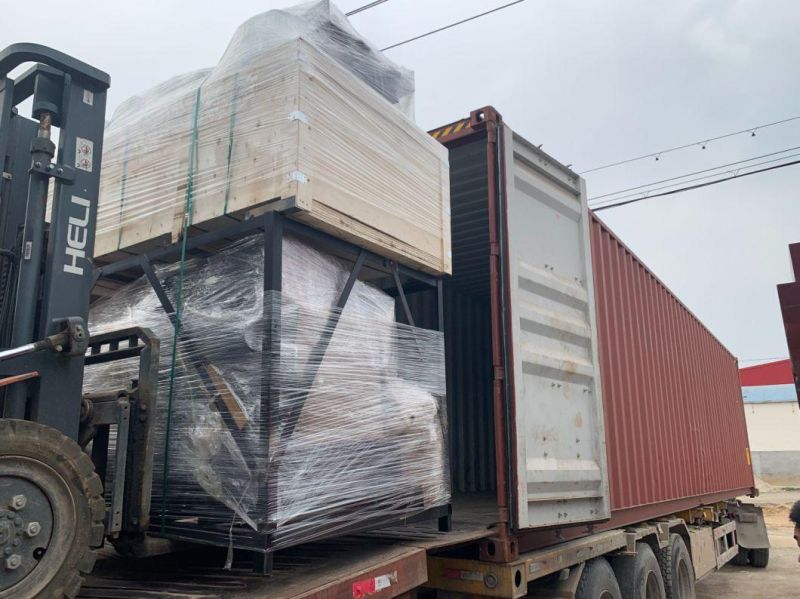

Packing



FAQ

1. Nice quality with competitive price
2. Quick delivery time
3.Money refund in case of bad quality
4.Small order welcome
5.Alibaba trade assurance payment for safety
6.QC for each pc before delivery
7.Nice after sale service
We trust we will be your trustworthy supplier in China if we have a chance to serve you!!!  So please don't hesitate to contact us by the following ways, if any machines you are interested in!
