Driving Discs Plow for Tractor
Shandong Weituo Group Co., Ltd.- Type：Disc Harrow
- Application Field：Agriculture
- Farming Policy：Dry Cultivating Machinery
- Power Source：Tractor
- Operation：Soil Preparation Machinery, Fixed Operation
- Traction Type：Traction
Base Info
- Model NO.：Tractor with 18 to 65hp Matched Power
- Drive Type：Gear Drive
- Arbor Configuration：Horizontal Axis
- Certification：CE
- Color：as Customers Requirements
- Transport Package：Steel Frame
- Specification：ISO9001, CE approved
- Trademark：weituo
- Origin：China
- HS Code：8432100000
- Production Capacity：50, 000pcs,year
Description
Basic Info.
Model NO. Tractor with 18 to 65hp Matched Power Drive Type Gear Drive Arbor Configuration Horizontal Axis Certification CE Color as Customers Requirements Transport Package Steel Frame Specification ISO9001, CE approved Trademark weituo Origin China HS Code 8432100000 Production Capacity 50, 000pcs/yearProduct Description

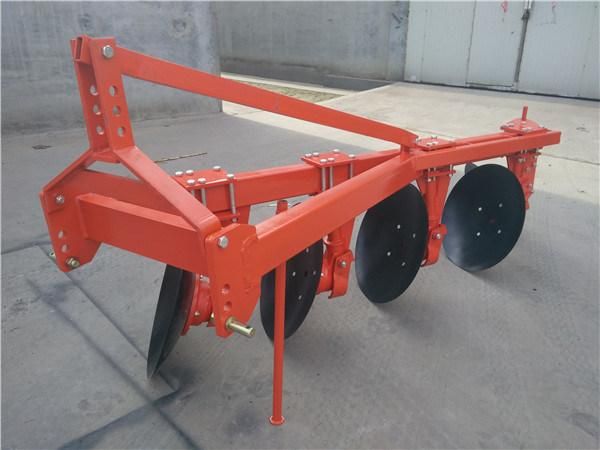

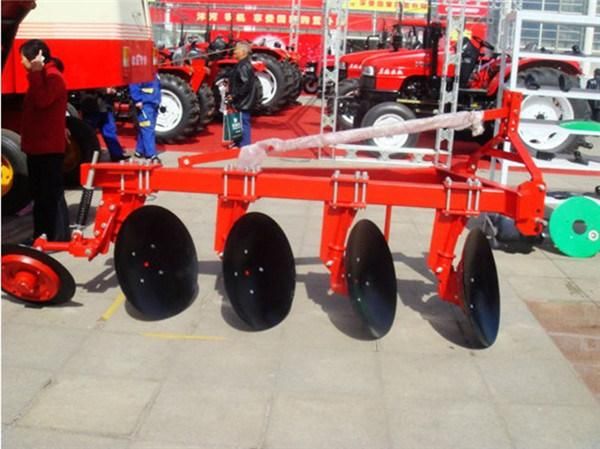

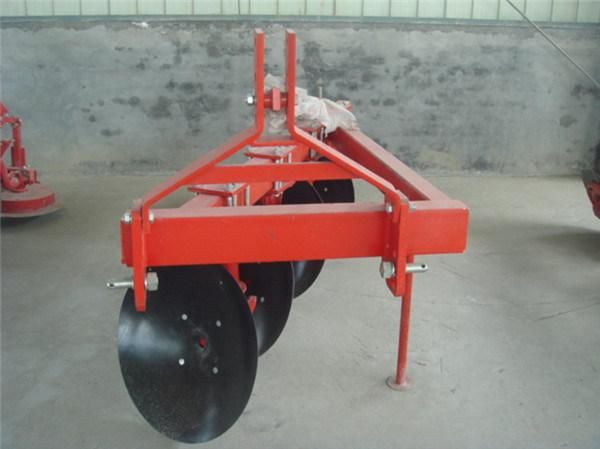

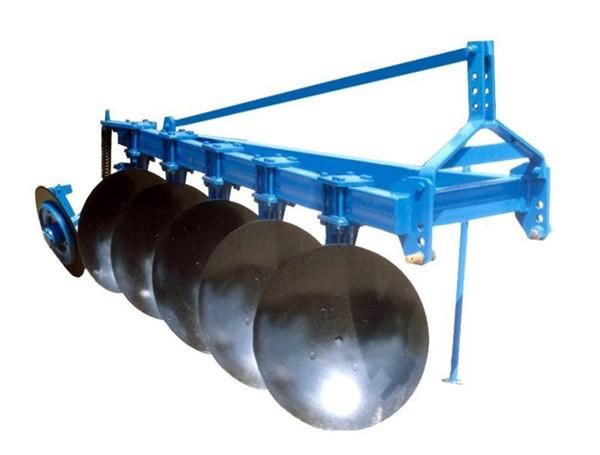

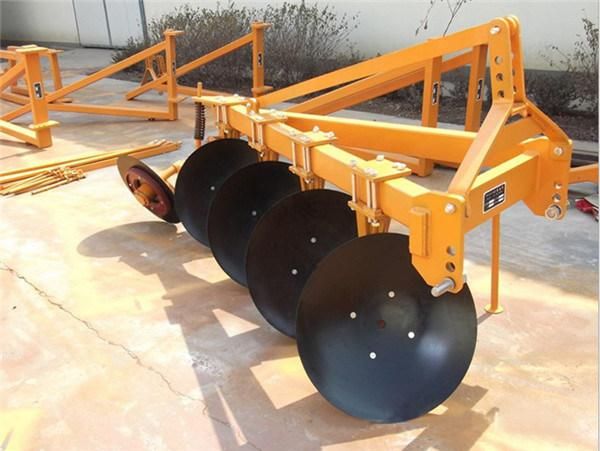

1LYQ series of rotary-driven disc plough is mounted with tractor by the rear 3-point suspension device and drives the plough discs to rotate in the way of delivering power by tractor's rear PTO to the disc plough's gear box. This machine is mainly used for cultivating on paddy field with the advantages of non-tangling weeds, high quality and efficiency.
Model | Matched power(hp) | Working width mm | Working depth cm | No.of disc | Total weight(kg) | O.D. mm (L*W*H) | |
| 1LYQ-320 | 12-18 | 660 | 12-20 | 3 | 180 | 865*1165*1050 | |
| 1LYQ-420 | 18-25 | 880 | 12-20 | 4 | 216 | 965*1365*1050 | |
| 1LYQ-520 | 25-30 | 1100 | 12-20 | 5 | 276 | 1075*1585*1050 | 4800 |
| 1LYQ-622 | 40-50 | 1320 | 12-20 | 6 | 321 | 1210*1805*1050 | 5800 |
| 1LYQ-722 | 60-80 | 1540 | 12-20 | 7 | 357 | 1325*2025*1050 | 6000 |
| 1LYQ-822 | 70-80 | 1760 | 12-20 | 8 | 393 | 1440*2245*1050 | 6300 |
| 1LYQ-922 | 80-90 | 1980 | 12-20 | 9 | 430 | 1555*2465*1050 | 6500 |
