Cocoa Kidney Green Mung Bean Gravity Separating Machine

Hebei Ruixue Grain Selecting Machinery Company Limited
  • Item:Bean Gravity Separating Machine
  • Model:5xz-6
  • Capacity(T/H):5000 Kg,H
  • Dimension (L*W*H):2600*1500*2100mm
  • Weight (Kg):1300kg
  • Color:White

Base Info

  • Model NO.:5XZ-6
  • Application:All Type Grain, Seeds
  • Function:Remove Immature, Damaged, Moldy Ones
  • Type:Air Blowing Type
  • Warranty:1 Year
  • Transport Package:Wooden Case or Container
  • Specification:ISO9001-2008, TUV, SGS SONKAP
  • Trademark:SYNMEC gravity separating machine
  • Origin:China
  • HS Code:84371090
  • Production Capacity:1000 Set,Year


Basic Info.

Model NO. 5XZ-6 Application All Type Grain, Seeds Function Remove Immature, Damaged, Moldy Ones Type Air Blowing Type Warranty 1 Year Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC gravity separating machine Origin China HS Code 84371090 Production Capacity 1000 Set/Year

Product Description

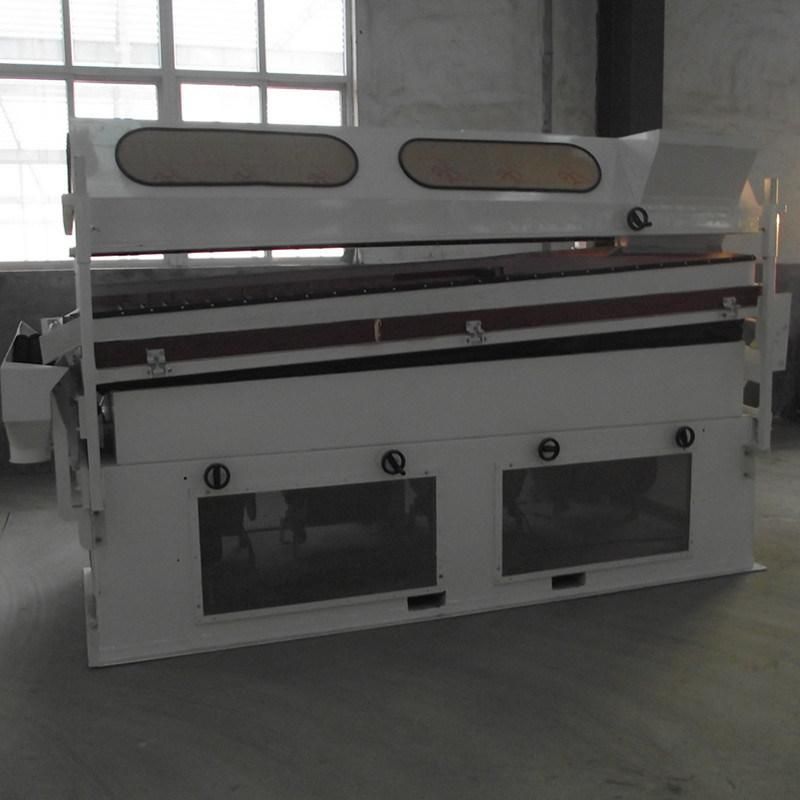

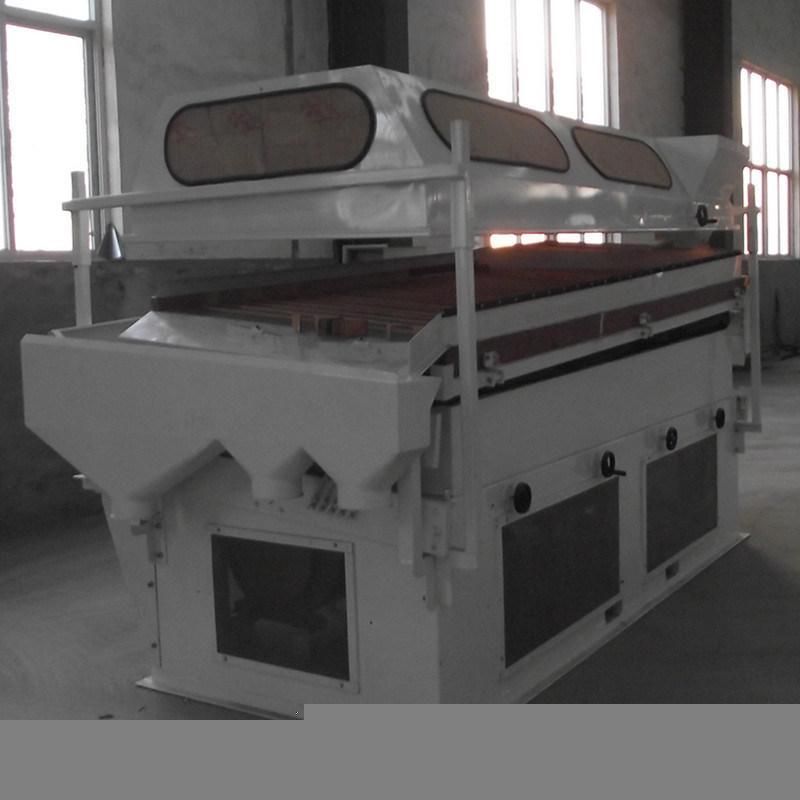

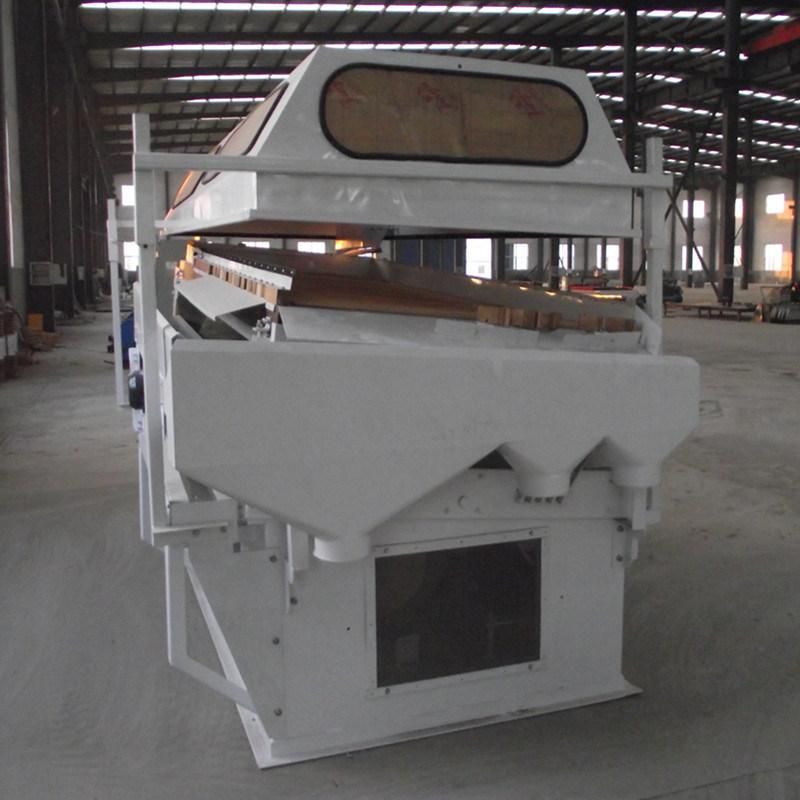

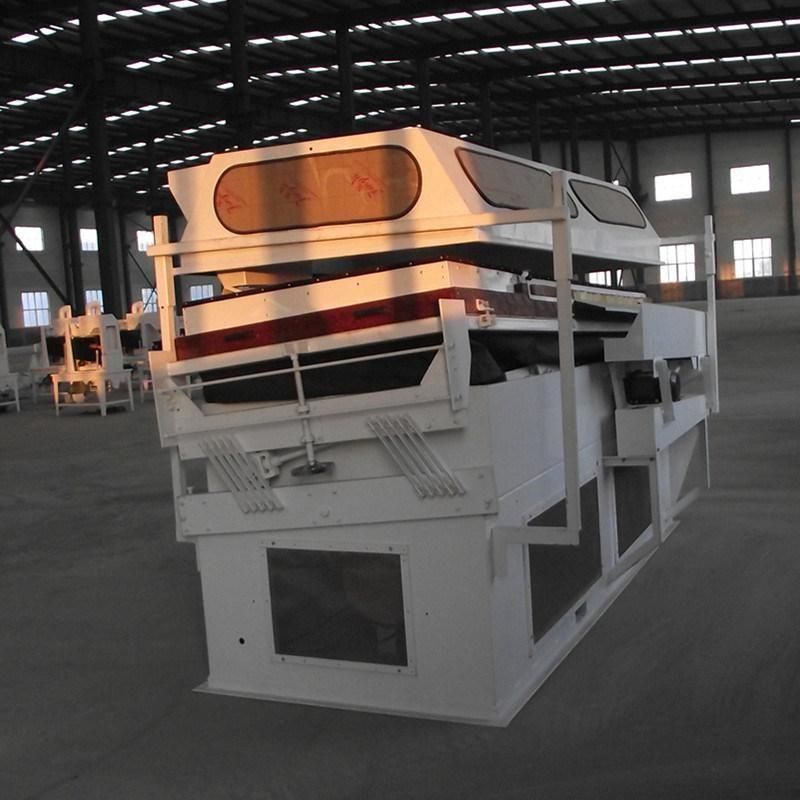

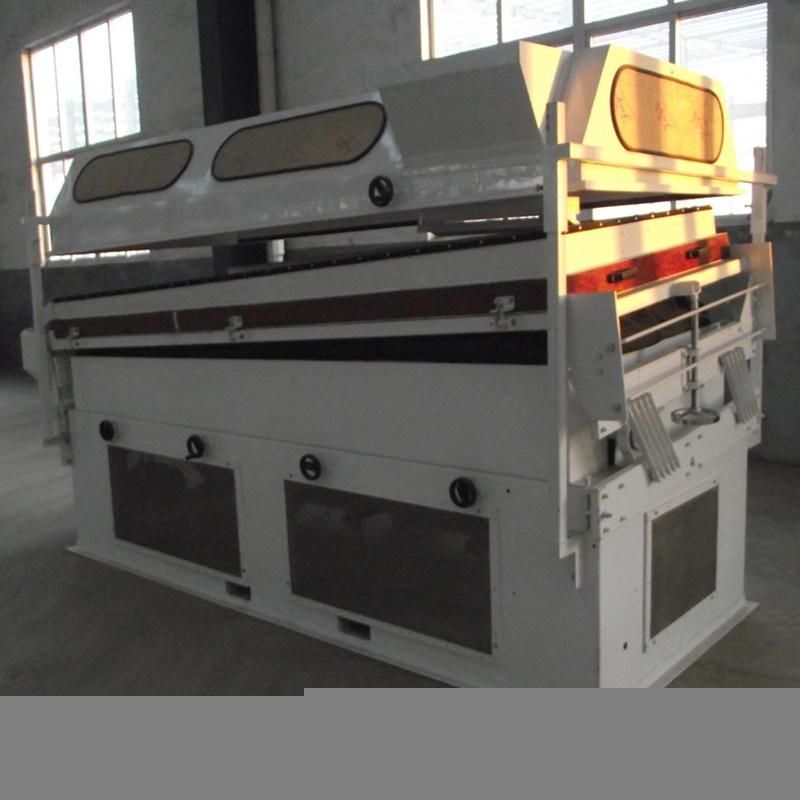

bean gravity separating machine
Introduction of 5XZ-6 gravity separating machine :

5XZ-3 gravity separating machine is the blowing type High Quality Stanard Gravity Separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.

Application of 5XZ-6 gravity separating machine :

The gravity separating machine can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The High Quality Stanard Gravity Separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
The gravity separating machine also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.

Working Principle of 5XZ-6 gravity separating machine :

The gravity separating machine works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

Specification of 5XZ-6 gravity separating machine :
ModelCapacity (KG/H)Power(KW)Weight(KG)Dimension(mm)

Cocoa Kidney Green Mung Bean Gravity Separating MachineCocoa Kidney Green Mung Bean Gravity Separating MachineCocoa Kidney Green Mung Bean Gravity Separating MachineCocoa Kidney Green Mung Bean Gravity Separating MachineCocoa Kidney Green Mung Bean Gravity Separating Machine
