Agricultural Machinery

Home > Product > Baler

Automatic Rice Wheat Grass and Straw Mini Round Hay Baler

Weifang Guoan Engineering Machinery Co., Ltd.
  • After-sales Service：Acceptable
  • Type：Round Baler
  • Automatic Grade：Automatic
  • Power Source：Tractor
  • Warranty：1 Year
  • Certification：ISO, CE

Base Info

  • Model NO.：870
  • Usage：Hay
  • Name：Mini Round Baler
  • Baler Size：131*146*138cm
  • Pickup Width：80cm
  • Bale Size：60*80cm
  • Bale Weight：20-30kg
  • Productivity：2-5km,H
  • Efficiency：1500-3000kg,H
  • Match Power：25-50HP
  • Transport Package：Iron Package with Film Covering
  • Specification：450kg
  • Trademark：Guoan
  • Origin：China
  • HS Code：8433400000
  • Production Capacity：1000 Sets,Week

Description

Automatic Rice Wheat Grass and Straw Mini Round Hay BalerAutomatic Rice Wheat Grass and Straw Mini Round Hay BalerAutomatic Rice Wheat Grass and Straw Mini Round Hay Baler



Specifications:
round baler is widely used in picking up hay,straw,alfalfa ,wheat ,rice ,then bale them into round size. Round baler is driven by tractor PTO,easy to transport

Automatic Rice Wheat Grass and Straw Mini Round Hay BalerAutomatic Rice Wheat Grass and Straw Mini Round Hay Baler

Specifications:

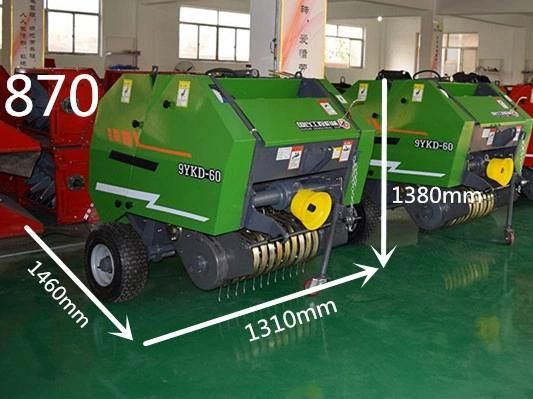

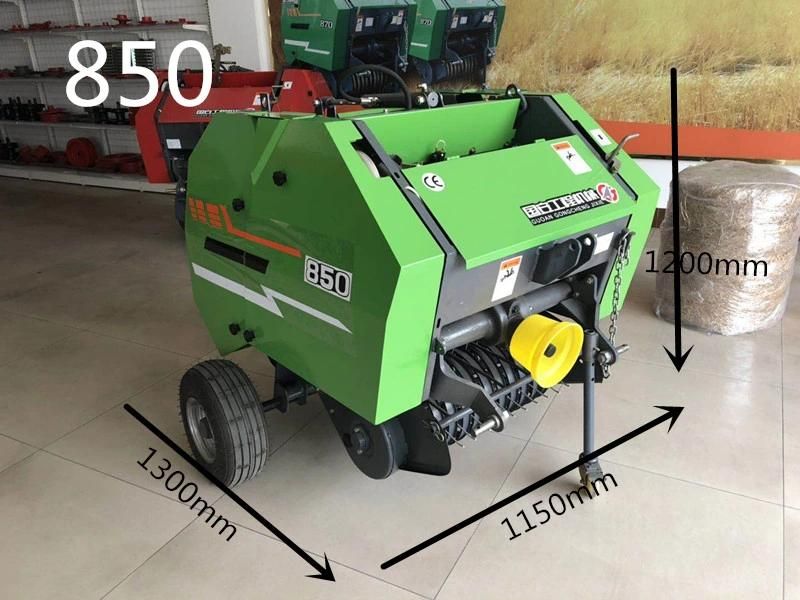

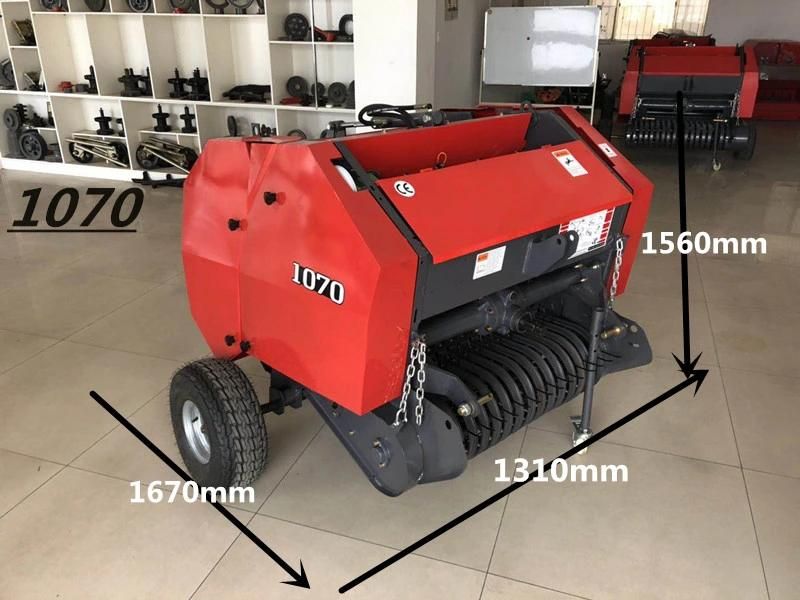

Model850870/870F1070/1070F1090/1090FPickup Width700mm800mm950mm950mmDimension
(L*W*H)115*130*120cm131*167*156cm131*167*156cm157*167*170cmBaler Size
(dia*width)50*70cm60*70cm62*95cm80*95cmEfficiency2-5km/h2-5km/h3-8km/h3-8km/hProductivity80bales/h80bales/h80bales/h80bales/hDensity≥115kg/m3≥115kg/m3≥115kg/m3≥115kg/m3PTO Speed540r/s540r/s540r/s540r/sMatch Power25-50hp25-50hp25-50hp25-50hpWeight400kg450kg550kg600kgForce Feeding/870F have1070F have1090F have
Advantages:ContrastCommon BalerGuoan BalerPickup systemWhen common pickup system pick the wet corn stalk, it can lead to pluggingOur new Force Feeding model solve this problemMolding rollerCommon machine roller is made of welding, welding parts easy to fall off when it working ,the equipment and the operator has hidden a huge safety trouble.Our equipment is made of a stamping forming technology, is not easy to wear and tear, no hidden dangers.Automatic senoloid valveCommon machine is semiautomatic to release the bale, solenoid valve also will rust,etcOur latest automatic solenoid valve can automatically put the bale, and the main material is aluminum alloy, not easy to rust.Sealed bearingCommon equipment use no seal or single sealed bearing, poor sealing effect, easy to dust, life is short, and easily damaged.All parts are made of double sealed bearing, bearing using time is longer, equipment operation effect is better.High strength chainCommon chain is rough and thinner, not wear-resisting, easy to fracture.Our chain adopt high quality alloy, it is not easy to fracture, long life, good transmission effect.1.automatic baling and automatic release the bale
2.a molding roller, safe and durable
3.low fault rate and not blocked
4.it can be connected to small, low-power tractors.
5.it can be used in places with steep slopes and where access is limited to narrow passageways.
6.it can produce small bales that can be carried manually.


Main Features:

Force feeding system : it won't produce congestion. At the same time, it can pick up hay for comb; make hay baling orderly and higher density, easy storage and transportation.
Automatic baling system: Our latest automatic solenoid valve can automatically put the bale, and the main material is aluminium alloy, not easy to rust, it can use for many years.
Molding roller:Our equipment is made of a forming technology, is not easy to wear and tear, no hidden dangers.

Others:

1.3 point linkage, easy to lift and pass from one place to another place
2.High efficiency, make the picking and bundling up at one time.
3.buzzer warning after one bale finished,bale density adjustable.
4.natural hemp twine, harmless to animal.
5.Each bale weights about 25kg,one hour can bale about 80-120 bales.
6.Our baler can use tractor hydraulic system or hydraulic pump on itself, these are optional.

Our Service:Model 850870/870F1070/1070F1090/1090F20 FT20164440 FT403688


Sending Inquiry Information:

1.Delivery time: Within 15days after receiving clients' payment
2.Payment Terms :T/T/L/C/paypal /trade assurance
3.Quality Gurantee: Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers.
4.We Supply 24 hours online service, if you have any questions on Mini Round Hay Baler and other farm machinery, do not hesitate to connect with us!
5.Gald to service for you And Welcome to contact us for more details!

If u like our Mini round baler or other kinds machines , please feel free to contact Miss Lucky , I will reply u ASAP . Best regards!
