Potato Harvesting Machine Onion Harvester with Automatic Loading Device

Shijiazhuang Kudou Import and Export Trading Co., Ltd.
  • After-sales Service:1 Year
  • Type:Potato Harvester
  • Application:Potato, Sweet Potato
  • Power Source:Tractor
  • Harvest method:Uprooted
  • Drive Type:Traction

Base Info

  • Model NO.:4U
  • Transmission:Hard Shaft
  • Portable Harvester Type:Traction
  • Certification:UL, QS, GMP, ISO9001:2008, CE, SGS Soncap
  • Color:Red
  • Condition:New
  • Application Field:Agriculture
  • Warranty:1 Year
  • Power:50-100HP
  • Weight:1500kg
  • Working Depth:250-300mm
  • Working Width:1300mmmm
  • Suitable Row Spacing:400-650
  • Dimension:2900*1800*1700mm
  • Matching Type:Traction Rear Suspension
  • Payment:T,T
  • Transport Package:Container
  • Specification:2900*1800*1700
  • Trademark:KUDOU
  • Origin:China
  • HS Code:8433530090
  • Production Capacity:100set Per Month

Description

Basic Info.

Model NO. 4U Transmission Hard Shaft Portable Harvester Type Traction Certification UL, QS, GMP, ISO9001:2008, CE, SGS Soncap Color Red Condition New Application Field Agriculture Warranty 1 Year Power 50-100HP Weight 1500kg Working Depth 250-300mm Working Width 1300mmmm Suitable Row Spacing 400-650 Dimension 2900*1800*1700mm Matching Type Traction Rear Suspension Payment T/T Transport Package Container Specification 2900*1800*1700 Trademark KUDOU Origin China HS Code 8433530090 Production Capacity 100set Per Month

Product Description

Potato harvesting machine onion harvester with automatic loading device
Potato Harvesting Machine Onion Harvester with Automatic Loading Device
Potato Harvesting Machine Onion Harvester with Automatic Loading DevicePotato Harvesting Machine Onion Harvester with Automatic Loading Device
ModelPower
(HP)
Weight
(kg)
Working depth
(mm)
Working width
(mm)
Suitable row spacing
(mm)
Dimension
(L*W*Hmm)
Matching type
4U-3/1.350-1001500250-3001300400-6502900*1800*1700Traction rear suspension
4U-3/1.660-1201600250-3001600550-8002900*2100*1700Traction rear suspension

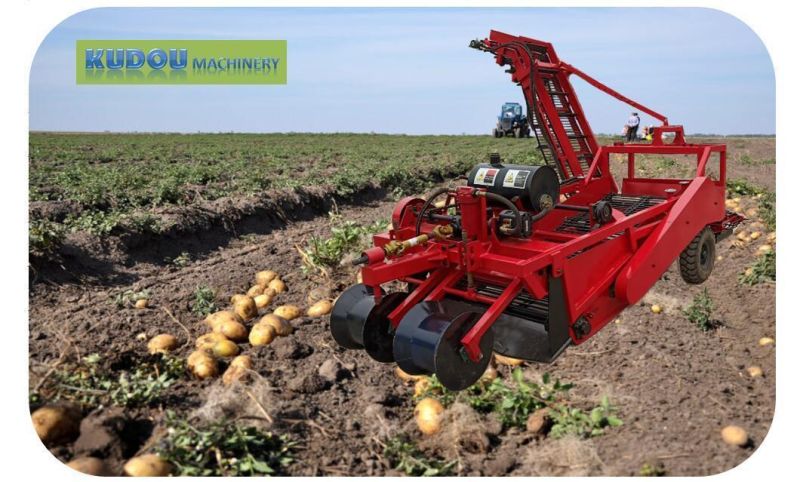

the 4U-3 seriePotato harvesting machine onion harvester with automatic loading device is mainly used to harvest underground rootstock crops such as potatoes, garlic, sweet potatoes and peanuts. The machine has the characteristics of high harvesting efficiency, low damage rate, light operation, no vibration, no grass blocking, fast soil leakage, simple structure and long service life. The machine adopts a side-by-side automatic loading device to make up for the shortage of small harvesters that can not automatically collect crops, improve production efficiency and save manpower and material resources. The machine has obtained two patents for utility model and design approved by the National Patent Office.
The 4UQL-160 potato harvester consists of a frame, digging shovel, working screen, gear box, drive shaft, traction hanger, suspension frame, depth limit wheel, rear tail wheel, rear lifting device and other components.
The tractor and the harvester are connected by a drive shaft and driven by the power output shaft of the tractor to drive the working screen. The digging shovel will shovel the crops to be harvested. The two sides of the disc cut the soil and the weeds. Digging the shovel and shovel the soil into the soil. The conveyor chain transports the potatoes backwards. The crops are transported to the rear by the rotation of the working sieve chain. In the device, during the transportation process, the vibration of the vibrating wheel of the universal Nazan is effective to separate the crop from the soil. The rear lifting device uses the side loading device to load the crop into the transport vehicle on the right side, saving manpower and material resources and improving production efficiency.
Potato Harvesting Machine Onion Harvester with Automatic Loading Device
Potato Harvesting Machine Onion Harvester with Automatic Loading Device
Potato Harvesting Machine Onion Harvester with Automatic Loading Device
Potato Harvesting Machine Onion Harvester with Automatic Loading Device


Potato Harvesting Machine Onion Harvester with Automatic Loading Device
Potato Harvesting Machine Onion Harvester with Automatic Loading Device


Potato Harvesting Machine Onion Harvester with Automatic Loading Device
