Agricultural Machinery

Vegetable & Flower Seeds Automatic Soil Filling and Seed Sowing Plug Tray Seeder Line with High Speed and Precision

Jiangsu Grow-Green Agricultural Science and Technology Co., Ltd.
  • Application:Wheat, Rice, Corn, Peanut, Tubers, Beans, Trees, Fruit
  • Application Field:Agriculture
  • Function:Sowing
  • Planting Machine Type:Seedling Planting Machine
  • Power Source:Electric
  • Mechanization:Automatic Planting Machine

Base Info

  • Model NO.:GG750
  • Sowing:Precision Seeder
  • Transport Package:Pallet
  • Trademark:Grow-Green
  • Origin:China
  • Production Capacity:100PCS,Month

Description

Speed750 trays/hourTrays Cells32-288 cellsTrays Size54*28 cmMachine Size3350*890*1220Seed Size 0.1-5 mm Seedling Rate95% for round, 90% for others Operater 2 Persons


I,Overview
This Vacuum Plug Tray Precision Seeder is designed and produced according to the
actual request of domestic vegetable flower seedling production, research and development. It
fully meets the technical request of seed planting from large and medium-sized seedling
production enterprises, agricultural production cooperatives, private farms and flower production
base. It greatly increases the efficiency for plug tray seedling planting and seedling productivity. It
also greatly reduces the labor costs in planting seedling production.
This Plug Tray Seeder is easy to operate. Users only need provide 220v universal power and it can
work immediately, no need professional maintenance staff. The machine is small size, light
weight,      flexible      operation       and     simple      structure.       Completing       hole     pressing      /seed

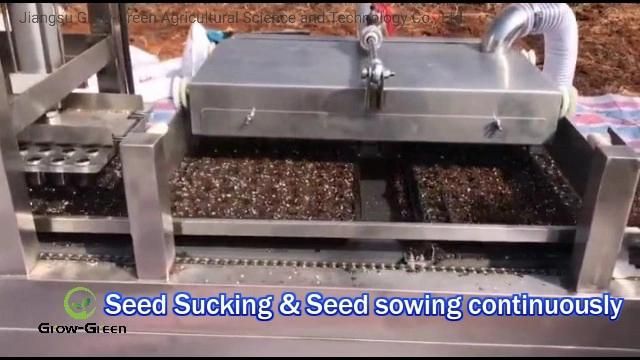

sucking/seed sowing continuously.

1.750w high quality turbo fans with strong suction power.
2.Main structure is made of high-quality stainless steel.
3.According to different seeds and sowing requirement, it will be equipped with corresponding
sowing plate and the suction needles. The machine is applied to the biggest seeds like pumpkin,
peas, corn, peas, melons, etc., the smallest seeds like petunias (tens of thousands of grain per
gram), celery, cabbage, etc. and conventional seeds like hot pepper, tomato, grass, etc.
4.The optional sowing plates can match international standard 54*28cm plug tray with 288, 200,
128, 105, 98, 72, 50, 32 holes. (This machine is specially equipped with full set of plates for 288
holes, 200 holes and 105 holes. For big seeds like pumpkin seed, please use 105-hole and
below plug tray)
5.One tray at a time while sowing. Sowing speed 750 trays per hour. Sowing rate: 95% - 98%.


Vegetable & Flower Seeds Automatic Soil Filling and Seed Sowing Plug Tray Seeder Line with High Speed and Precision
Vegetable & Flower Seeds Automatic Soil Filling and Seed Sowing Plug Tray Seeder Line with High Speed and Precision

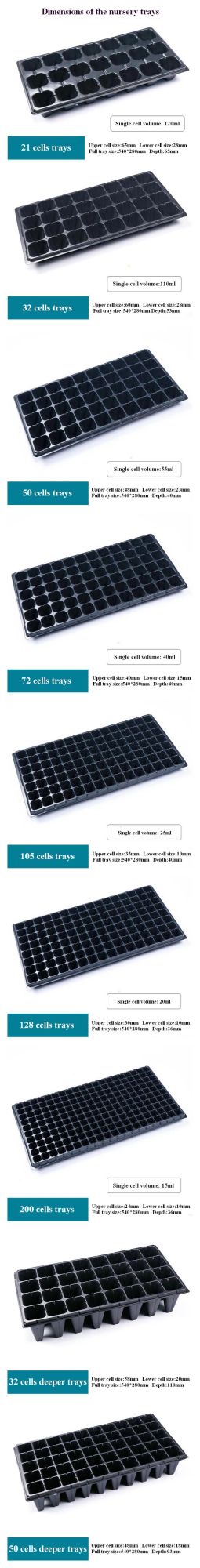

Our machine is suit for many kinds of plug trays


Vegetable & Flower Seeds Automatic Soil Filling and Seed Sowing Plug Tray Seeder Line with High Speed and Precision

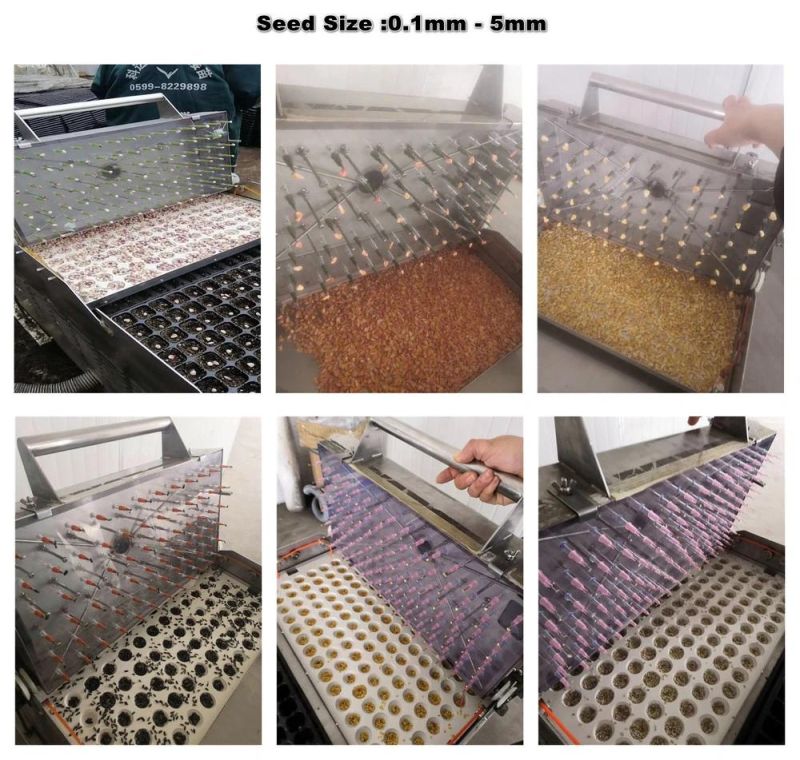

Our machine is suit for different kinds of plant seeds

Vegetable & Flower Seeds Automatic Soil Filling and Seed Sowing Plug Tray Seeder Line with High Speed and Precision


Vegetable & Flower Seeds Automatic Soil Filling and Seed Sowing Plug Tray Seeder Line with High Speed and Precision

Watering Part is not standard, if need this part, there are extra cost.




Vegetable & Flower Seeds Automatic Soil Filling and Seed Sowing Plug Tray Seeder Line with High Speed and Precision
