• Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
• Certification：ISO9001:2008, CCC, CE, QS, RoHS
• Condition：New
• Application Field：Agriculture, Fisheries
• Color：as Your Like
• Voltage：110V,220V
• Wire：Copper,Aluminium
• Impeller：Brass,PPO,Stainless Steel
• Inlet/Outlet：1",2",3",4‘’
• Shaft：Stainless Steel ,Steel
• Frequency：50Hz,60Hz
• Transport Package：Sea Worthy Carton (with Foam )
• Specification：0.5hp-2.0hp
• Trademark：ELESTAR
• Origin：China
• HS Code：8413709990
• Production Capacity：50000-60000,Month

Basic Info.

Ground Drainage and Irrigation Machinery Type Pumping Irrigation Certification ISO9001:2008, CCC, CE, QS, RoHS Condition New Application Field Agriculture, Fisheries Color as Your Like Voltage 110V/220V Wire Copper/Aluminium Impeller Brass/PPO/Stainless Steel Inlet/Outlet 1"/2"/3"/4‘’ Shaft Stainless Steel /Steel Frequency 50Hz/60Hz Transport Package Sea Worthy Carton (with Foam ) Specification 0.5hp-2.0hp Trademark ELESTAR Origin China HS Code 8413709990 Production Capacity 50000-60000/Month

Product Description

DTM Series Centrifugal Pump
Centrifugal pumps with single impeller are able to offer high flow rates, provide smooth, not pulsating delivery, and regulate the flow rare over a wide range without damaging the pump.
For the correct functioning of the pump,, use clean water, or nonaggressive liquids charged with small solid impurities.
To be used in flow irrigation system in gardening, agriculture and industrial fittings.


OPERATING CONDITIONS
Liquid temperature up to 60°C
Ambient temperature up to 40°C
Total suction lift up to 9m
Continuous duty

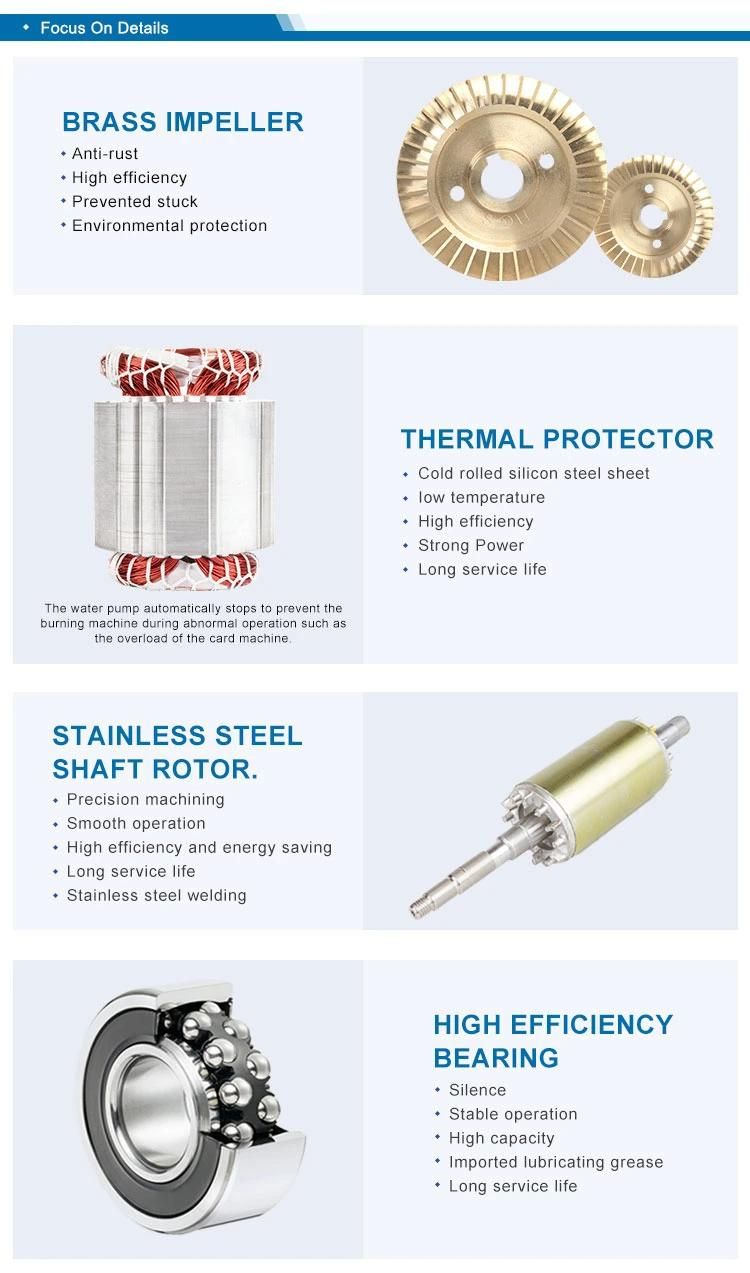

CONSTRUCT
PUMP
Pump Body:Cast Iron
Impeller:Brass
Mechanical Seal:Carbon/Ceramic/Aluminum with Brass Insert

MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing:Aluminum
Shaft:Carbon Steel/Stainless Steel
Insulation:Class B/Class F
Protection:IP44/IP54
Cooling:External Ventilation

Technical data of Product
Packing of Product:

    water pump could be packed:
   * in strong color carton box with two foams fixed.
   * in neutral carton box with two foams fixed.
   * in cellular carton box with two foams fixed.
