• Model NO.：200*60.2*60
• Links：60mm
• Color：Black
• Warranty：12 Months Under Normal Use
• Delivery Time：15 to 25 Days
• Exported Markets：Global
• Transport Package：Bare Packing or Wooden Pallet
• Specification：200*60.2*60
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai
• HS Code：8431499900
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 200*60.2*60 Links 60mm Color Black Warranty 12 Months Under Normal Use Delivery Time 15 to 25 Days Exported Markets Global Transport Package Bare Packing or Wooden Pallet Specification 200*60.2*60 Trademark No Marks or As Buyer′s Requests Origin Shanghai HS Code 8431499900 Production Capacity 5000PCS/Month

Product Description

Rubber Track 200*60.2*60 for Robot snowmobile:

Size:Width200*Pitch60.2*Links60

Link and lenght can be adjustable

Weight:28KG

Warranty:Guarantee one year under normal use


Application and Features:
1.Characteristics of rubber track:

   1).Less damage to the ground surface

   2).Low noise

   3).High running speed

   4).Less vibration;

   5).Low ground contack specific pressure

   6).High tractive force

   7).Light weight

2.Convontional type or interchangeable type rubber track

3.Application:miniexcavator, bulldozer, dumper, crawler loader, crawler crane, carrier vehicle, a

griculture machinery, paver and other special machine

4.Packaging & Delivery

   1).Packing: Bare package or Pallet

   2).Delivery time: 20days.

5. Other condiation:

  1).MOQ: 1 Piece

  2). Supply Ability: 5000 Pcs/Month

  3). Brand: OEM is ok

  4). Color: Black

6. Warranty: guarantee one year under normal use.



Applicable machines	agricultural machines
Material	rubber and steel
Specification	350*90;400*90;450*90
Installation position	Installed on the agricultural machines

Parameters:

size width*pitch	link	A	B	C	D	F	pattern	guiding
130*72	29-40	23	64.5	28	28	15	AF1	A2
150*60	32-40	22	64	22.5	24.5	15	AC	A2
150*72	29-40	23	64	23	23	15	AC	A2
170*60	30-40	19	57	22	22	13	CE	A1
180*60	30-40	23.5	64	21	21.5	15	AM	A1
180*72	31-43	25	68	29	29	15	BK	A2
180*72K	32-48	20	61	22	19.5	17	BB1	B2
B180*72	31-43	23	66	30	29	15	BB1	B2
H180*72	30-50	23	64	27	26	17	BK	A2
190*60	30-40	23.5	64	21	21.5	14	AM	A1
190*72	31-41	21	68	27.5	26.5	15	BF	A2
200*72	34-47	23	76	28.5	26.5	18	BB1	A2
200*72K	37-47	21	69	29.5	29	18	BM	A2
Y200*72	40-52	24	64	28.5	29.5	12	BK	A2
230*48	60-84	24	72	24	25	21	BI	B1
230*48K	60-84	24	66	21	20	19	BI	B2
230*72	42-56	24	82	30	26	18	AF1	A2
230*72K	42-56	20	69	29.5	28	16	BD	A2
230*96	30-48	25	68	23.5	25.5	22	BE	B1
230*101	30-36	25	74	22.5	29	19	BO	B1
250*47K	84	23	70	24	20	22	BD	B2
250*48.5K	80-88	24	66	21	20	19	CA	B2
250*52.5K	72-78	26	81	23	25	25	BA	B2
250*52.5	72-78	29	72	23	25	21	BI	B1
250*72	47-57	24	82	30	26	18	AF1	A2
B250*72	34-60	23	64	29	22	10	CI	A2
B250*72B	34-60	23	78	29	26	16	AB	B2
250*96	35-38	25	70	20	19	22	BB1	B2
250*109	35-38	40	89	24.5	14	20	CG	B1
260*55.5K	74-80	31	80	21.5	27	24	CA	B2
Y260*96	38-41	25	68	23	25.5	22	AB	B1
260*109	35-39	30	84	24	29	15	AB	B1
E280*52.5K	70-88	29	84	27	26	22	BI	B2
280*72	45-64	25	78	29.5	26	22	AL	A2
Y280*106K	35-42	30	80	27.5	28	20	AB	B2
300*52.5N	72-98	30	82	25	18	20	BI	B1
300*52.5W	72-92	43	96	22	23	22	BE	B1
300*52.5K	70-84	29	84	27	26	22	BI	B2
300*52.5KW	72-92	40	92	25	24	22	BI	C1
E300*52.5K	70-88	29	84	27	26	22	BI	B2
KB300*52.5	72-92	40	90	24.5	24.5	22	BI	C1
KB300*52.5N	72-98	30	82	23	20	25	BI	B1
JD300*52.5N	72-98	30	80	23.5	22	22	BI	B1
300*53K	80-96	31	88	25	19.5	21	BI	B2
300*55	70-88	29	86	25.5	27.5	23	BI	B1
300*55.5K	76-82	31	82	22	27	21.5	CA	B2
300*71K	72-76	42	106	23	24	40	BD	B2
300*72	36-40	23	75	40	34	18	BK	A2
BA300*72	36-46	26	76	29	27	19	AF1	A2
300*109N	35-42	29	82	27	28	25	BE	B1
300*109W	35-44	38	90	26	29	24	BB1	B1
K300*109	37-41	27	85	23.5	27.5	20	AB	B2
300*109WK	35-42	40	90	24.5	14	23	CG	B1
320*52.5	72-98	30	83	23.5	18	21	BI	B1
320*54	70-84	29	80	23	21	20	AB	B1
B320*55K	70-88	30	82	25	30	23	BE	B2
Y320*106K	39-43	31	80	26	27	24	AB	B2
350*52.5	70-92	40	94	22.5	19	30.5	BE	B1
E350*52.5K	70-88	29	84	27	26	22	BI	B2
350*54.5K	80-86	40	92	23.5	22.5	23	AD	B2
B350*55K	70-88	30	82	25	30	23	BE	B2
350*56	80-86	39	89	25.5	16.5	20.5	BC	B1
350*75.5K	74	37	98	24.5	25	25	CA	C2
350*108	40-46	40	90	24.5	14	25	CG	B1
350*109	41-44	40	92	26	20	25	BO	B1
Y370*107K	39-41	38	94	25.5	28	23.5	AB	B2
400*72.5N	70-80	38	100	26	24	25	AF3	B1
400*72.5W	68-92	51	108	26	24	25	BI	B1
Y400*72.5K	72-74	28	86	30	24.5	25	AF3	C2
KB400*72.5K	68-76	37	94	24	26	23.5	BA	B2
400*72.5KW	68-92	46	112	24	23.5	25	BI	B2
400*74	68-76	38	100	25.5	29.5	24	BH2	B1
400*75.5K	74	39	100	25	26	25	CA	C2
Y400*107K	46	38	89	27	25	25	AB	C2
K400*142	36-37	27	87	34	27	29	CF	C2
400*144	36-41	47	98	27	11	30	CF	B1
Y400*144K	36-41	35	126	29.5	26	25	BE	B2
450*71	76-88	42.5	115	29.5	17	30	BE	B1
DW450*71	76-88	44	114	31	27	25	BD	B1
450*73.5	76-84	42	118	31	34	28	CG	B1
450*76	80-84	48	122	30.5	31.5	26	BI	B1
450*81N	72-80	42	117	26	24	27	BE	B1
450*81W	72-78	58	140	29	32	30	BI	B1
KB450*81.5	72-80	42	110	31.5	27.5	26	BD	B1
K450*83.5	72-74	42	112	24.5	25	28	BI	B1
Y450*83.5K	72-74	38	113	24	27	26	CA	B2
K450*163	38	38	114	27	28	30	AB	B2
485*92W	74	62	142	34	33	30	BE	B2
K500*71	72-76	41	106	23	24	42	BE	B2
500*92	72-84	48	130	27	26	29	BI	B1
500*92W	78-84	64	155	32.5	35.5	33	BI	B1
K500*146	35	40	106	26.5	24.5	50	BB1	A2

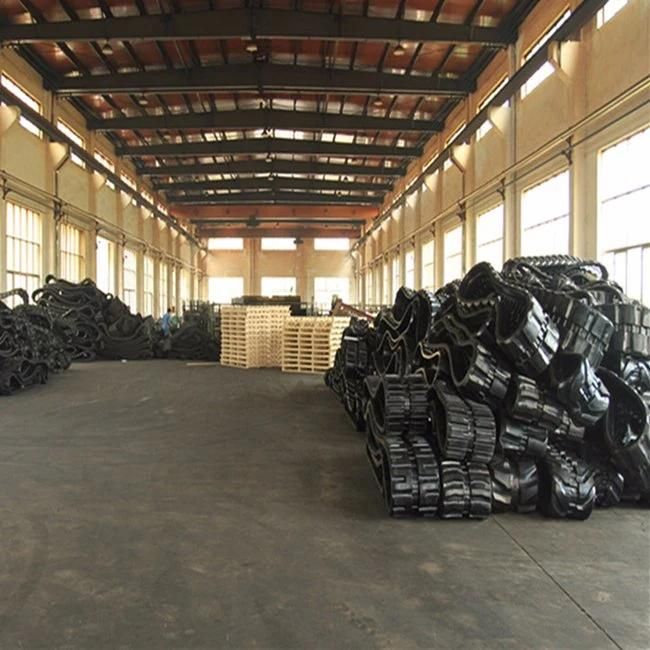

Warehouse:
