• Model NO.：YZYX120WZ
• Press Materials：Cottonseed
• Condition：New
• Customized：Non-Customized
• Application：Cooking Oil
• Product Name：Cotton Seeds Oil Press with Good After-Sale Servic
• After-Sales Service Provided：Engineers to Service Machinery Overseas
• Wearing Parts：Squeeze Bars, Squeeze Spiral and Loop
• Port：Shanghai, Chongqing, Guangzhou, etc
• Delivery Time：7~30days Once Order Confirmed
• Advantages：High Capacity, Easy Operation
• Color：Any Color You Like
• Automatic Grade：Semi-Automatic
• Transport Package：Wooden Box
• Specification：certificated: ISO, BV, SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：84792000
• Production Capacity：400pieces,Month

ItemYZYX120(-8,-9)WZ Revolving speed of spiral axis (r/min)32-40 Power of main electromotor (kw)11(6 poles)Electrical power of filtration (kw)2.2Power of temperature controlling   (kW)≥3.2Measurement (mm)2130*1350*1940Weight (kg)1080

YZYX120WZ is basic 2-step squeezing machine.

YZYX120-8WZ is 3-step squeezing machine. Besides of the advantages of 2 step squeezing machine YZYX120WZ, YZYX120-8WZ has bigger pressing force in the chamber. Users could get better economic profit when operate it properly. It is suitable for users with operation experience and stress on low oil content in cake.

YZYX120-9WZ is 4-step squeezing machine. The squeezing force in its chamber is bigger than that of YZYX120-8WZ. Practices proved its squeezing efficiency and the oil yield efficiency is better

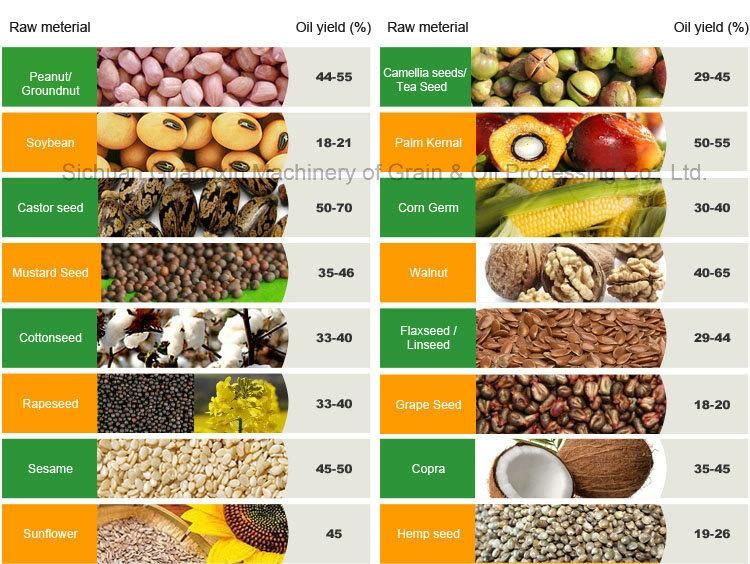

Suitable oil seeds

Guangxin Brand spiral oil press made by our company is suitable for squeezing many kinds of vegetable oil, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds, sesame seeds, corn germ, palm kernel, etc.

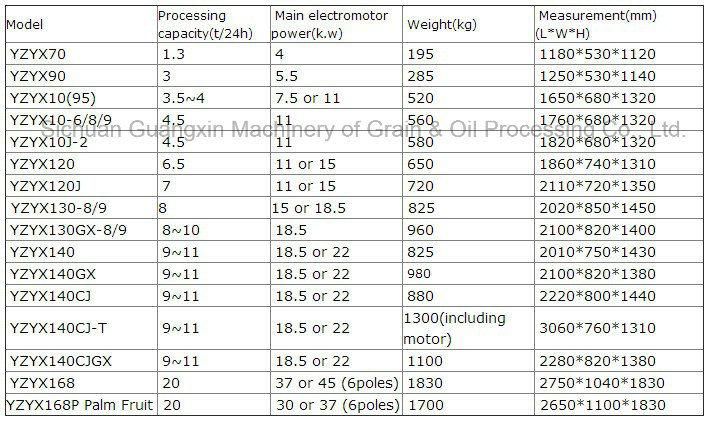

Single Sprial oil pressModelYZYX70YZYX90YZYX10(95)YZYX120YZYX130YZYX140YZYX168Processing capacity (t/24h )1.333.5~46.589~1120Oil content of dry cake(%)≤7.8≤7.8≤7.8≤7.0≤7.6≤7.6≤7.4Oil press power(K. W )45.57 or 1111 or 1515 or 18.518.5 or 2237or 45Measurement(LxWxH)1090*405*8061200*550*10001620*580*11951860*622*12751950*742*15002010*690*14302670*1000*1726Spiral axes rotate speed (r/min)36-4232-4232-4232-4028-4028-3832-38Weight (kg)1952855705908258061800

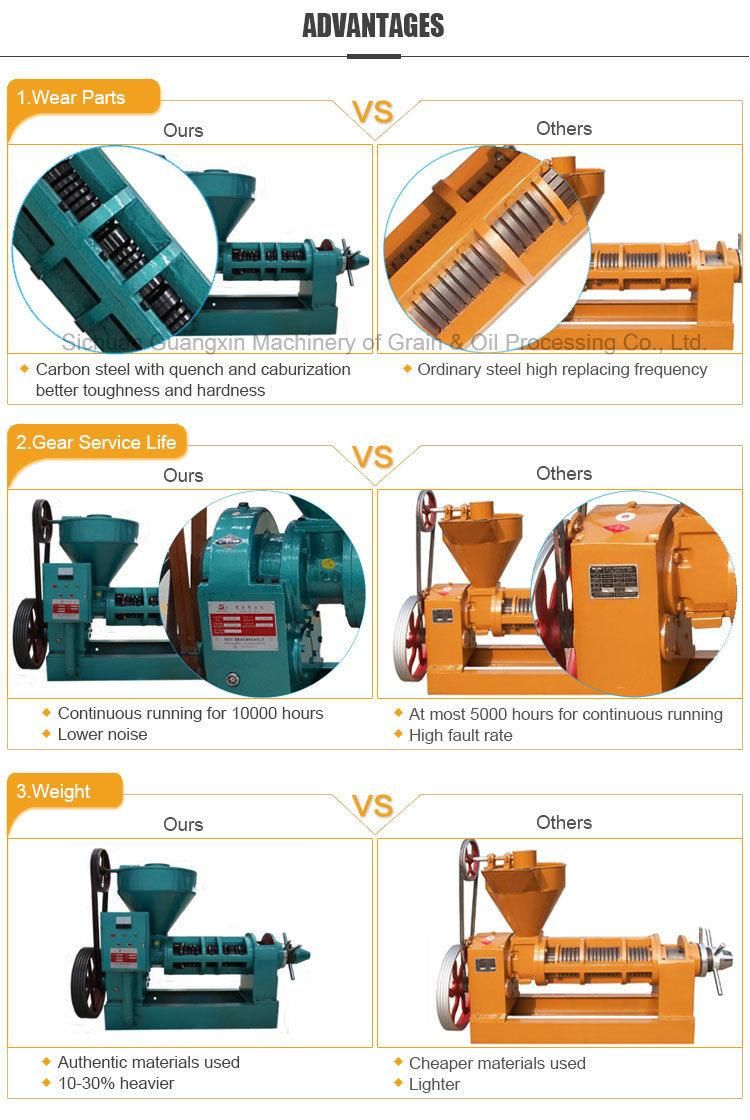

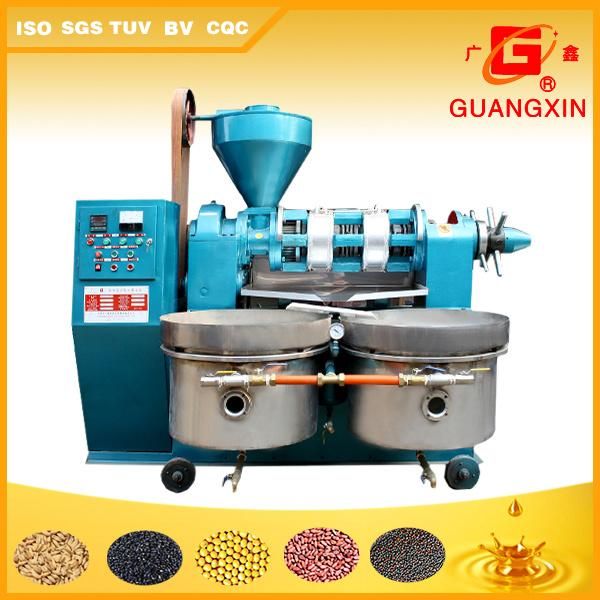

Characteristics of Guangxin YZYX120WZ Combined Oil Press Machine

1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.

2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.

3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.

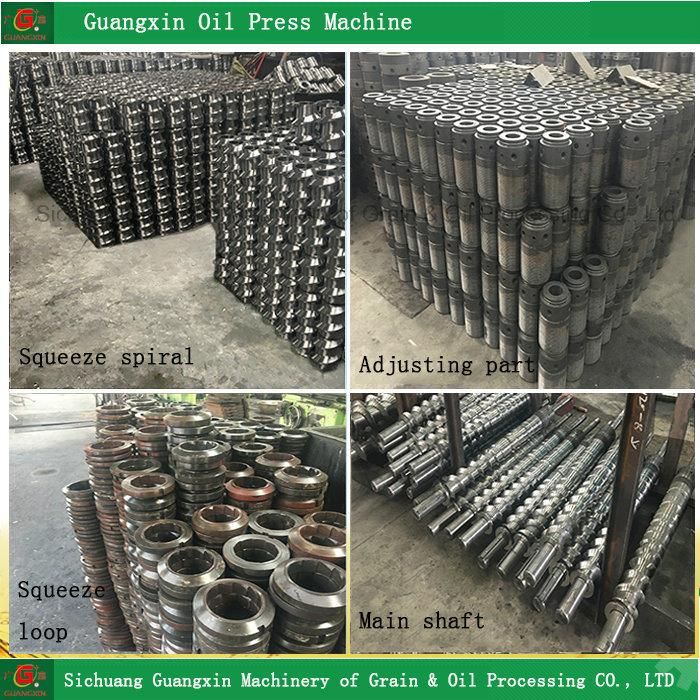

4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
9~11ton/ Day Spiral Oil Press High Efficiency Edible Oil Press Machine With Factory Wholesale


Note: YZYX series oil press machine is HIGH OIL YIELD oil press machine. Every model has been guaranted with ISO certifications. ALL GEAR IN GEAR BOX ARE BEVEL GEARS

* Model YZYX oil press machine is easy to operate and repair, performs reliably.
* Residue oil in cake is less than 7.8%, high oil yield.
* Wearing parts are forged and quenched treated, hardness reaches HRC57-64, wearable for 1200tons oil material.
* Life time more than 12 years
* And is capable of processing a wide range of More than 30 types of oil plants rapeseed, sesame mustard seed ,castor seed cotton seed, soybean, peanut, flax seed, sunflower seed and palm kernel, jatropha, linseed and other vegetable oil plants,etc .
9~11ton/ Day Spiral Oil Press High Efficiency Edible Oil Press Machine With Factory Wholesale

Company Information

Our Services

1. 1 year free warranty,whole lifetime maintenance.
2.Supplying wearing parts all year around
3.Supplying technical solutions at any time
4.Helping design and plan the oil plant's construction
5.Providing installation vedeo
6.Tried orders are available
7.Developing agents with good policies around world.
9~11ton/ Day Spiral Oil Press High Efficiency Edible Oil Press Machine With Factory Wholesale

FAQ

Q: If I don't know how to operate this machine? How can I do?
A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.

Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.

Q:Can i be a distributor of Guangxin oil press?
A: Of course you can.

Q:What are the benefits of being a Guangxin distributor?
A: - Special discount .
     - Marketing protection.
    - Supporting of marketing development
     - Point to point technical supports and after sales services.

Q: How can i become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.

Make order right now! And why?

One of our clients called us for buying wearing parts and he told us that his machine bought from us in 1990s. Its really! So, don't worry about the quality. Its beter than your think!

30YEARS FACTORY ---------- your honest partner
