Agricultural Farm Equipment Machinery for Processing Grain
Hebei Ruixue Grain Selecting Machinery Company Limited- Warranty：1 Year
- Capacity (T/H)：5
Base Info
- Model NO.：5XZC
- Power(Kw)：7.74
- Weight(T)：1.6
- Color：White or Green
- Dimension (L*W*H)：4970*1900*3100
- Advantage：Installed Cyclone Dust Separater
- Transport Package：Plywood Case
- Specification：ISO9001 TUV SGS
- Trademark：SYNMEC
- Origin：Hebei China
- HS Code：84371090
- Production Capacity：100 Set,M
Description
Basic Info.
Model NO. 5XZC Power(Kw) 7.74 Weight(T) 1.6 Color White or Green Dimension (L*W*H) 4970*1900*3100 Advantage Installed Cyclone Dust Separater Transport Package Plywood Case Specification ISO9001 TUV SGS Trademark SYNMEC Origin Hebei China HS Code 84371090 Production Capacity 100 Set/MProduct Description
Agricultural farm equipment machinery for processing grain1. Range of use for 5XZC-5DH Grain Seed Cleaning Machine
2016The Hottest Grain Seed Cleaning and Graing Machine (5XZC-5DH) is used for cleaning and grading seeds, grains, cereals, and other granule products, such as wheat, paddy, rice, maize, millet, cumin, sunflower seed, soybeen, coffee bean, cocoa bean, oil seed, etc. Seed Cleaning and Grading machine can be equipped to suit a variety of special jobs and purposes.
2. Working principe of The Hottest Grain Seed Cleaning and Graing Machine (5XZC-5DH)
Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from outlets.

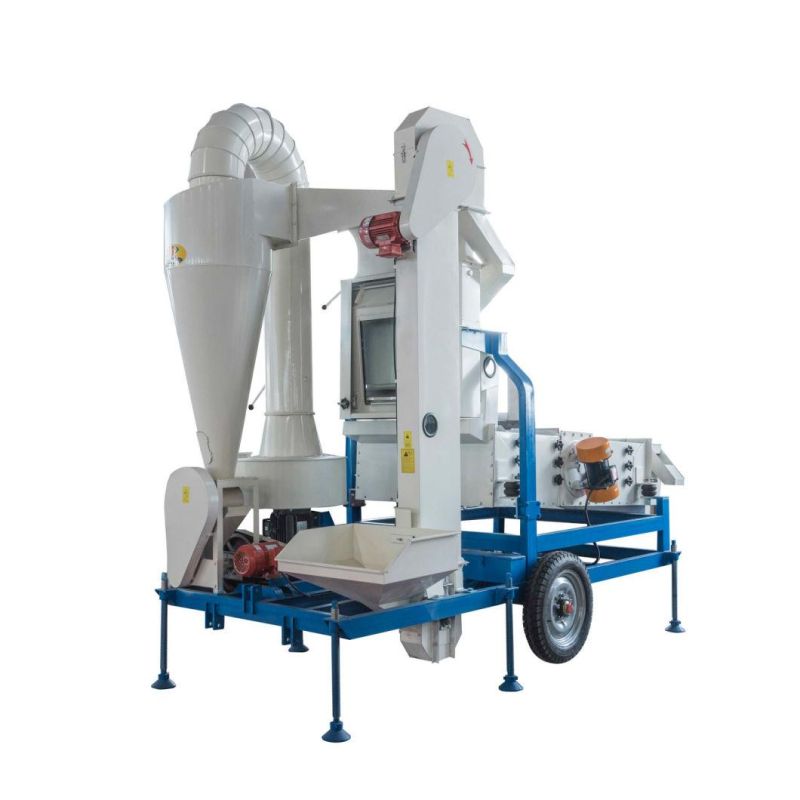

3.2016 The Hottest Grain Seed Cleaning and Graing Machine (5XZC-5DH) Installs cyclone dust separator.
| mode | Capacity(T/H) | Power(KW) | weight(MT) | Dimension(MM) | Remarks |
| 5XZC-3A | 3 | 8.5 | 1.3 | 3750*1950*2750 | Installed Maize Thresher |
| 5XZC-5A | 5 | 12.74 | 1.6 | 4650*2120*3100 | Installed Maize Thresher |
| 5XZC-15A | 10 | 20.93 | 2.2 | 5400*2450*3250 | Installed Maize Thresher |
| 5XZC-3B | 3 | 4.25 | 1.2 | 3750*1650*2750 | Grain cleaniing and grading functions |
| 5XZC-5B | 5 | 6.99 | 1.5 | 4650*1850*3100 | Grain cleaning and grading functions |
| 5XZC-5DH | 5 | 6.99 | 1.6 | 4650*1850*3100 | Double Dust separading systems |
| 5XZC-25 | 20 | 20.95 | 2.9 | 5820*2650*3600 | Double air cleaning system |
| 5XZC-7.5F | 7.5 | 10.1 | 1.8 | 5150*2160*3400 | Double air cleaning ,stone removing and grading all in one |
| 5XZC-3C | 3 | 7.25 | 1.3 | 3750*1650*2750 | Installed Wheat Huller and Cyclone Dust Separator |
| 5XZC-5C | 5 | 10.99 | 1.6 | 4650*1850*3100 | Installed Wheat Huller and Cyclone Dust separator |
