• Model NO.：D30L-8
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：890mm*750mm*1680mm
• Max Pesticide Load：25kg
• Aircraft Medicine Box Capacity：30L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：66kg
• Aircraft Weight：26kg
• Flight Attitude：Less Than 20m
• Flight Duration：13-25minutes
• Battery Capacity：16000mAh*2
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. D30L-8 Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 890mm*750mm*1680mm Max Pesticide Load 25kg Aircraft Medicine Box Capacity 30L Flight Radius Less Than 5000m Max Takeoff Weight 66kg Aircraft Weight 26kg Flight Attitude Less Than 20m Flight Duration 13-25minutes Battery Capacity 16000mAh*2 Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

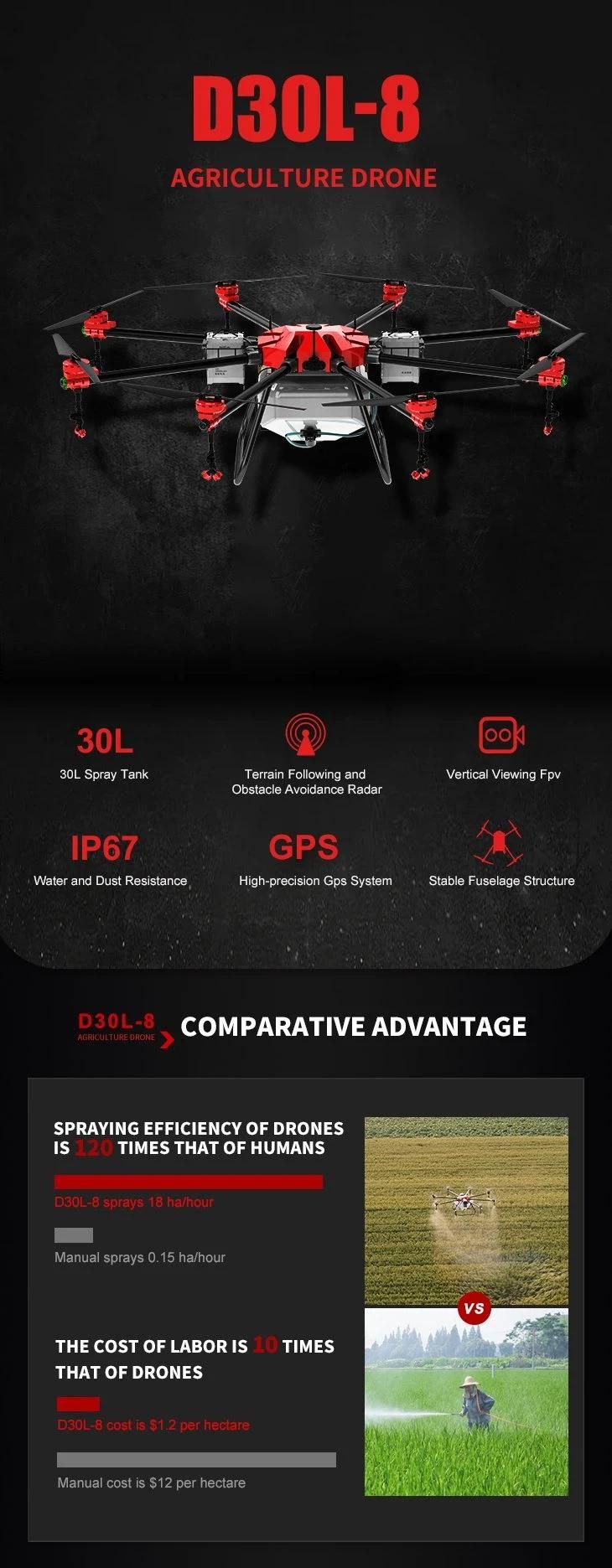

30L load agricultural drones crop spraying crop sprayer aircraft
- OEM  & ODM Service -              Our products and services are all over the world, and we are committed to promoting the development of global agricultural automation.At present, more and more countries and regions begin to contact and use our agriculture drone(uav)for spraying and sowing operations.While improving the work efficiency, it greatly reduces the cost of agricultural operations and reduces the working time.We will solve problems for you with our mature technical support and products and services.- Features -1.The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation.
2.Modular design of functional components, easy maintenance and upgrade.
3.Using intelligent plug-in battery
4.Use quick-plug medicine barrel
5.The arm can be quickly disassembled.
6.7075 aviation aluminum (high grade) is used for the folding part.
7.Wear the case, optimize the whole machine, and hide the medicine circuit.
8.High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
9.The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation.
10.The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good automization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration.
11.Alternating spraying function, the spray head can be switched independently. - Product Parameter -

Model	D30L-8
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	3090mm*3090mm*830mm
Product folding size	890mm*750mm*1680mm
Packaging size	1800mm*1000mm*900mm
Maximum takeoff weight	66KG
Aircraft weight	26KG
Pesticide Barrel	30L
Flight altitude	≤20 meters
Fly time(unloaded)	15~25 minutes
Fly time(loaded)	5~13 minutes when fully loaded
Flight speed	≤15 m/s
Structure lift span	≥10 years
Spray width	6-12 meters
Hovering in the air	Hovering in any direction
Spray flow	3-10L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Agricultural special controller
Spray efficiency	≥12hectares / hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	50.4V  (Full charge)
Charer	AC Input 100-240V
Lithium-polymer battery	12S   16000mAh*2
