• Model NO.：diaphragm type
• Drainage & Irrigation Mode：Ground Drainage and Irrigation Machinery
• Pump Type：Turbine Pump
• Material：Metal
• Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
• Certification：ISO9001:2008
• Condition：New
• Application Field：Agriculture
• Warranty：1 Year
• After-sales Service：video
• Maintance：Easy and Simple
• Working Life：Longer
• Setup：Vertical & Horizental Any Degree
• Transport Package：Plywood Cases or Carton Palletized
• Specification：3,4"-1-1,4", 1-1,2"-4", DN50-DN200
• Trademark：sitg fluidtech
• Origin：China
• HS Code：8481100001
• Production Capacity：10000sets
• Package size per unit product：35.00cm * 35.00cm * 30.00cm
• Gross weight per unit product：15.000kg

Basic Info.

Model NO. diaphragm type Drainage & Irrigation Mode Ground Drainage and Irrigation Machinery Pump Type Turbine Pump Material Metal Ground Drainage and Irrigation Machinery Type Pumping Irrigation Certification ISO9001:2008 Condition New Application Field Agriculture Warranty 1 Year After-sales Service video Maintance Easy and Simple Working Life Longer Setup Vertical & Horizental Any Degree Transport Package Plywood Cases or Carton Palletized Specification 3/4"-1-1/4", 1-1/2"-4", DN50-DN200 Trademark sitg fluidtech Origin China HS Code 8481100001 Production Capacity 10000sets

Packaging & Delivery

Package size per unit product 35.00cm * 35.00cm * 30.00cm Gross weight per unit product 15.000kg

Product Description

Automatic Hydraulic valve for irrigation system

Type: Diaphragm
Materials:

BODY	COVER	DIAPHRAGM	SPRING	PILOT
GGG	GGG	EPDM	SS304	SS304/PA

Design for the application of pressure control and drain use in water filter/ irrigation equipment
With various pilot mounted, can be archieved to be:
                           Solenoid valve for open and close use in pipe line and drain use

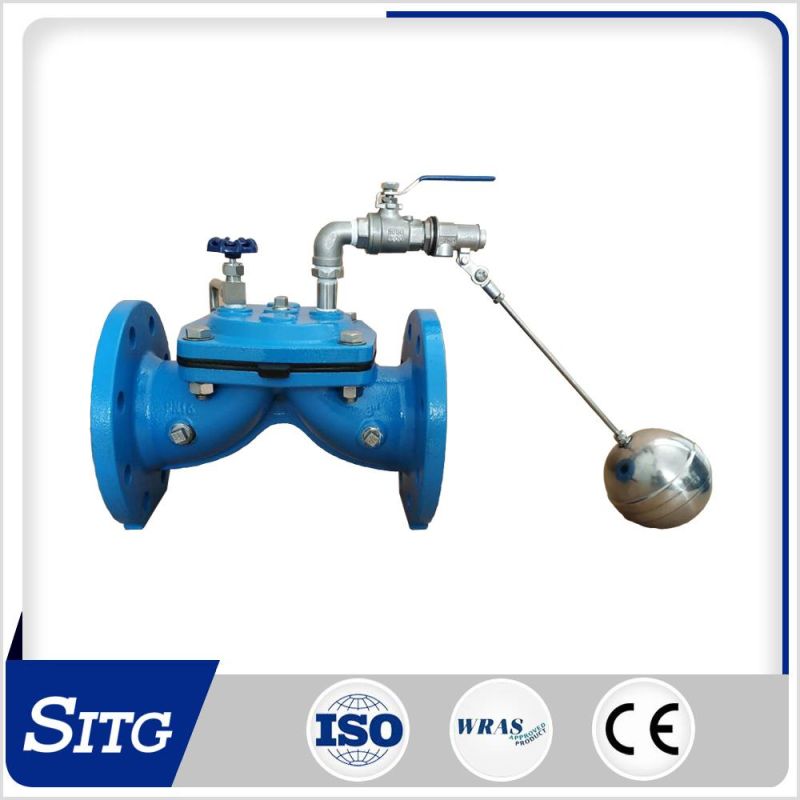

                           Remote float control valve in water tank

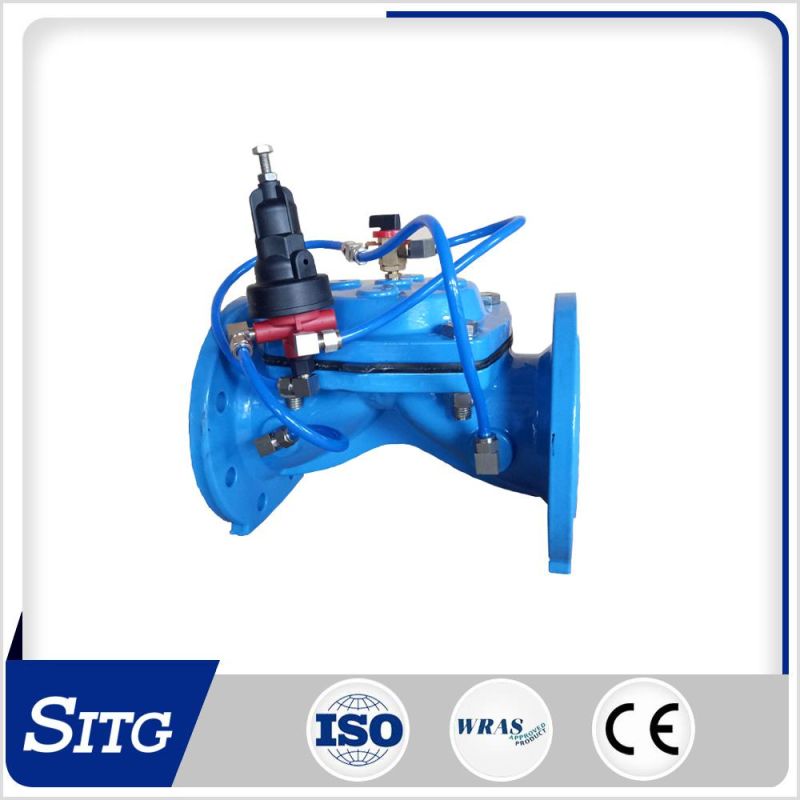

                           Pressure reducing valve
                           Pressure sustaining/relief valve
                           etc.

Operating start pressure:  0.3Bar

Working pressure: PN10/16
Temperature:         normal



Special specs. available upon request.

More photos:


General Conditions:
Standard Packing: In cartons, with or without pallets

Leading time: 45 days in normal (rush order please check us, we keep some stock but not for all sizes).

Terms of shipment: EXW,FOB, CFR/CIF, DAP, DDU

Who we are:  SUNTEX is the leading valve producer with own design-know how-technique, located in Hebei province, China.With more than 20 years experience on water treatment scope, provide one stop supplies for customers all over the world.
Distributor wanted worldwide
