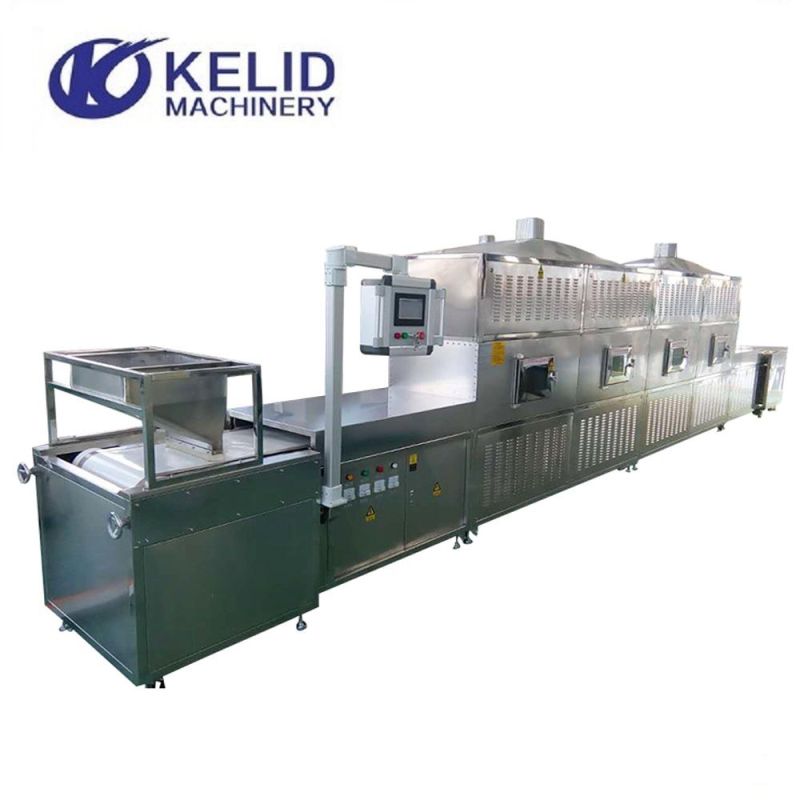

Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine

Jinan Kelid Machinery Co., Ltd.
  • After-sales Service:Provided
  • Warranty:1year
  • Movement Way:Fixed
  • Material Status:Bulk
  • Heating Mode:Transmission
  • Drying Medium:Superheated Steam

Base Info

  • Model NO.:KLD
  • Operation Pressure:Atmospheric Pressure
  • Application Fields:Application Fields
  • Material:304 Stainless Steel
  • Voltage:220V,380V
  • Usage:Food Industry Equipment
  • Heating Method:Electricity
  • Color:Customer Demand
  • After Warranty Servic:Video Technical Support, Online Support, Spare PAR
  • Advantage:Easy Operation High Efficiency
  • Package:Plastic Film
  • After-Sales Service Provided:Field Installation, Commissioning and Training
  • Transport Package:Containership
  • Specification:Customized
  • Trademark:Jinan Kelid Machinery Co., Ltd.
  • Origin:Jinan, Shandong, China
  • HS Code:8419200000
  • Production Capacity:20- 1500 Kg,H

Description

Basic Info.

Model NO. KLD Operation Pressure Atmospheric Pressure Application Fields Application Fields Material 304 Stainless Steel Voltage 220V/380V Usage Food Industry Equipment Heating Method Electricity Color Customer Demand After Warranty Servic Video Technical Support, Online Support, Spare PAR Advantage Easy Operation High Efficiency Package Plastic Film After-Sales Service Provided Field Installation, Commissioning and Training Transport Package Containership Specification Customized Trademark Jinan Kelid Machinery Co., Ltd. Origin Jinan, Shandong, China HS Code 8419200000 Production Capacity 20- 1500 Kg/H

Product Description

Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine

Introduction of microwave

The microwave is an electromagnetic wave has a frequency of 300MHz-300GHz. The moisture in the heated mediu are polar mocules, under the cation of rapidly changing high-frequency electromagnetic fields, their polar orientation will change with the change of the external electric field, causing molecular motion and mutual friction effects. At this time, the field energy in the microwave field is converted into thermal energy in the medium, so that the temperature of the material is increased, and a series of physicochemical processes of the heating and expansion are fenerated to achieve the purpose of microwave heating and drying.

Industrial microwave dryer is used for drying and sterilizing various kinds of food---snack food,

agricultural products, fish slice, slice dried meat, bean products, instant noodles, fast food, dried fruit, tea, herbs, karaoke powder, fruit and vegetable in the form of powder, granules, slice,

Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine

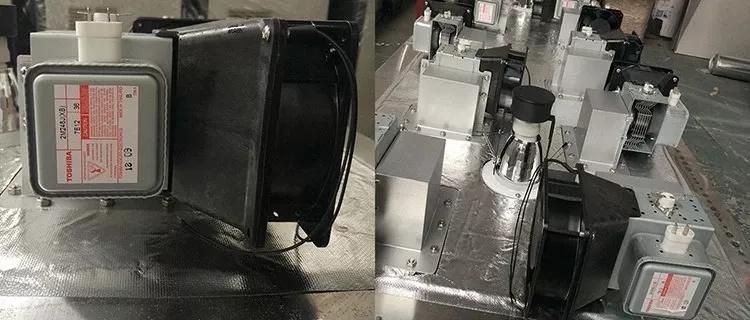

Product Details

Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying MachineStainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine
Equipment ModelKLD-Microwave Sterilizing EquipmentKLD-Microwave Sterilizing Equipment
Operating frequency2450±50MHZ2450±50MHZ
Rated input apparent power≤60KW≥120KW
Microwave output≥50KW≤110KW
Temperature70-200ºC(controlled)70-200ºC(controlled)
Type of coolingWater-Cooling/Air coolingWater-Cooling/Air cooling
Inlet and outlet height40-100mm40-100mm
Height of conveyor600-1000mm600-1000mm
Transmission speed0~10m/min(adjustable frequency)0~10m/min(adjustable frequency)
Dehydration Rated40-50KG/hour40-50KG/hour
Contour dimension12500mm*1600mm*2200m
(customized)
12500mm*1600mm*2200m
(customized)
Width of conveyor belt750±100mm(customized)1000±100mm(customized)
Microwave leakage standardISO≤5mw/cm²ISO≤5mw/cm²

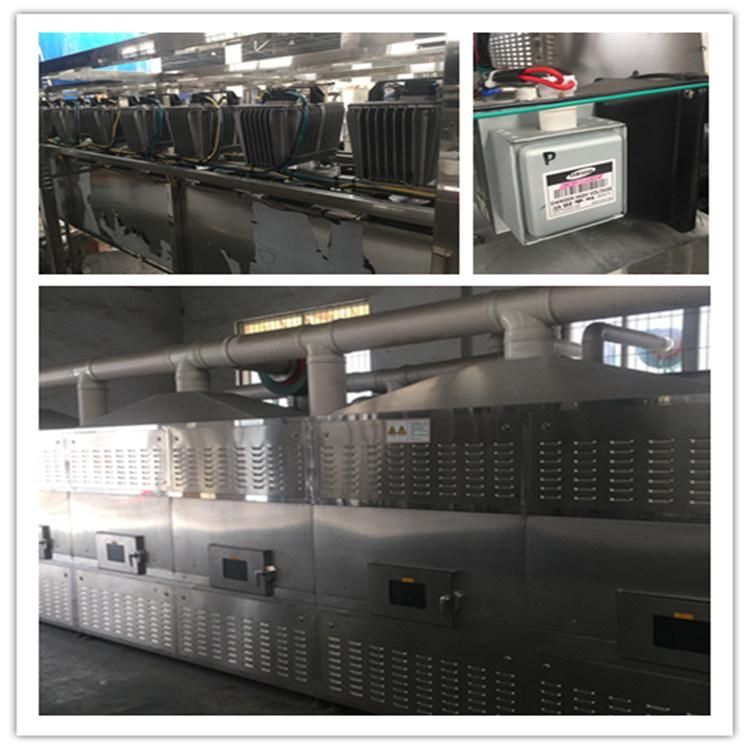

Sample Pictures
Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine
Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine
Our services


Service
Pre-sale services
1).Provide professional advisory services
2).Communicating with customer and learn your requirement
3).Welcome to visit our factory


Services during the sales
1).Confirm every terms and details and sign contract with customers
2).Inspect the machine before leaving the factory.
3).Packing machines and delivery on time

After-sale services
1). Provide installation, commissioning and training
2). Provide necessary technical support and update information

Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine

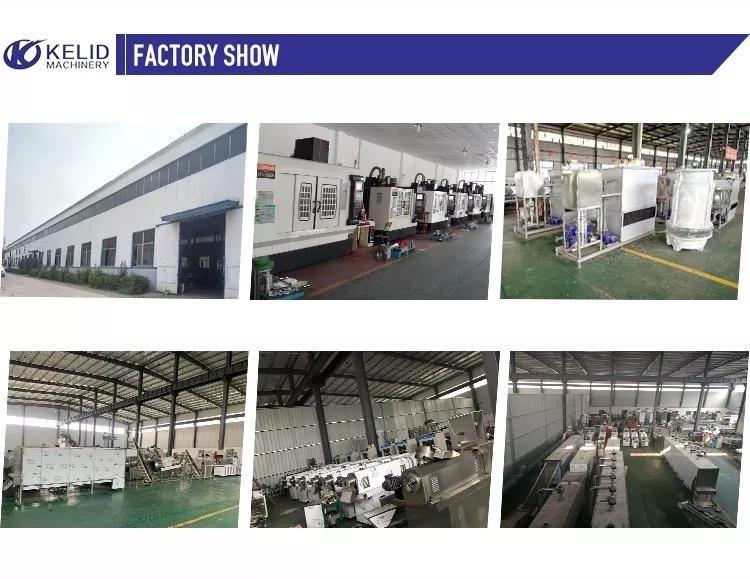

Company InformationJinan Kelid Machinery Co., Ltd.Jinan Kelid Machinery Co.,Ltd is a modern science and technology enterprise that integrates R&D,manufacturing and sales services.Specializing in the production of microwave drying ,heating, sterilizing, thawing,extracting,equipment.
Kelid is professional manufacturer in the field of industrial microwave design,manufacturing and application.With experienced engineers,strong technical development team and over 10-year' s technology in industrial microwave equipment manufacturing, Kelid has built good cooperative relationship with domestic related research institutions.

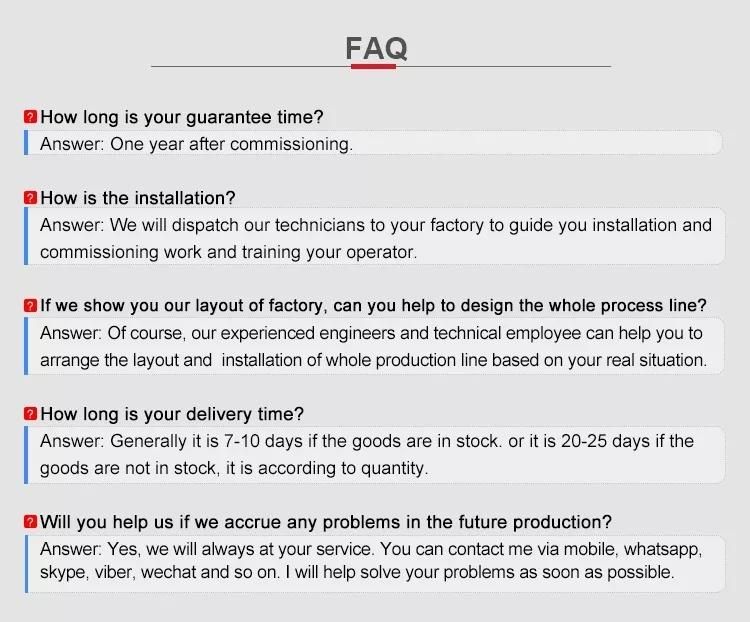

Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying MachineF&A

Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine

Packing:
 inside plastic bag, outside wooden case for Industrial tunnel microwave oven (Based on the customers' need adopt the wooden case or wooden pellets, etc.)


Transportation: shipping, train, express or what the client need

Stainless Steel Tunnel Microwave Herbs Tea Leaves Drying Machine
