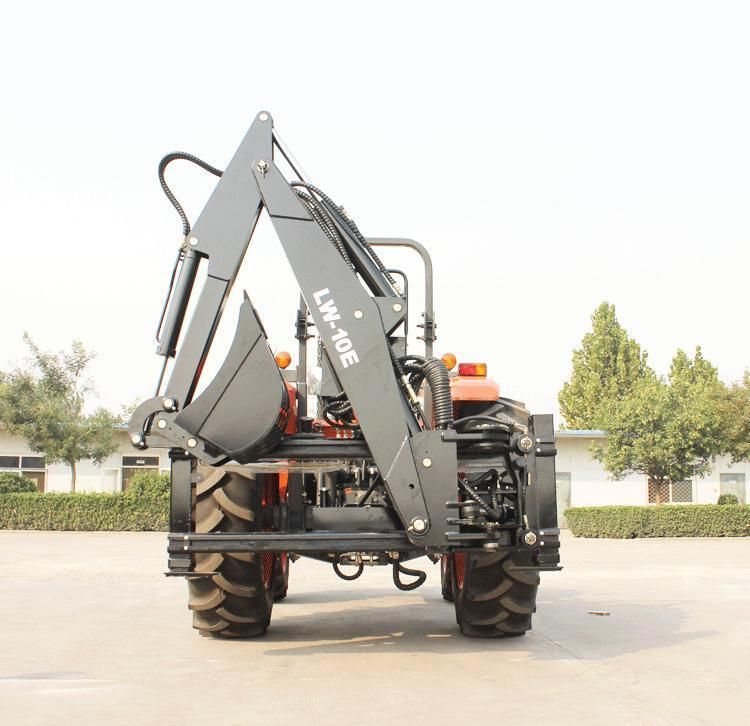

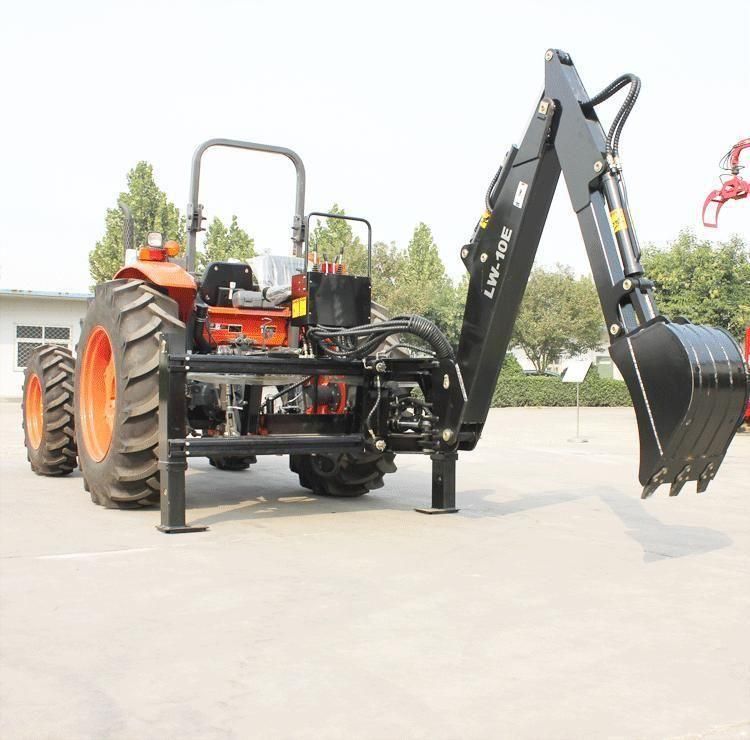

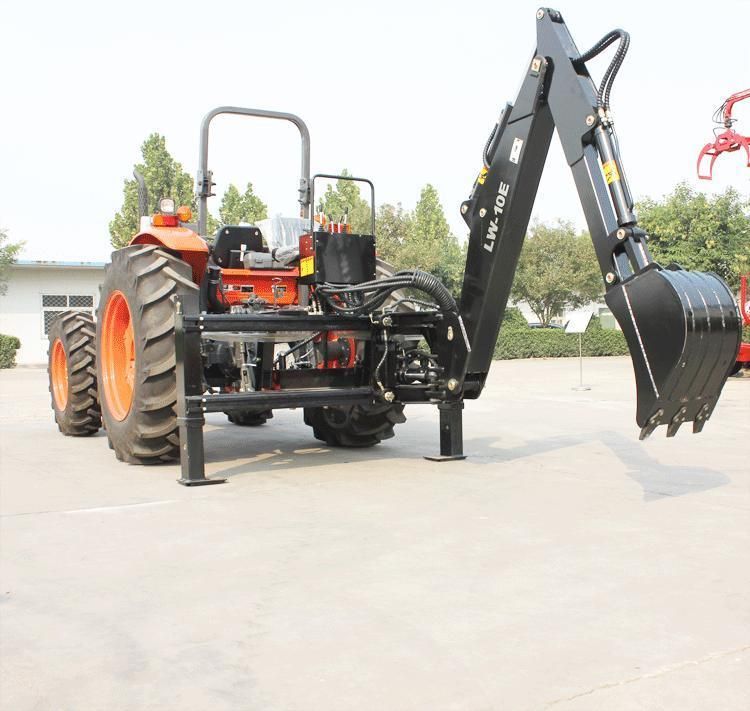

Small Attractive Tractor Towable Backhoe
Shandong Sunco AET Co., Ltd.- Usage：Agricultural Products Processing, Farmland Infrastructure
- Material：Stainless Steel
Base Info
- Model NO.：LW-6E
- Power Source：Tractor Power
- Weight：600kg
- After-sales Service：2 Years
- Warranty：2 Years
- Color：Red,Black,Blue,Customised
- Machine Type：Towable
- Max.Digging Depth：2000mm
- Max.Digging Height：1860mm
- Ground Clearance：450 Mm
- Transport Package：Steel Framework
- Specification：CE
- Trademark：SAMTRA
- Origin：Shandong
- HS Code：84306920
- Production Capacity：1000 Set Per Month
- Package size per unit product：2100.00cm * 1200.00cm * 700.00cm
- Gross weight per unit product：900.000kg
Description
20~3530~55 50~90 70~120 100~180 Max.digging depth(mm) A 1650 2000 2400 2800 3200 3655 Max.unloading
Height(mm) B 1530 1860 2050 2380 2650 3627 Max.digging height (mm) C 2600 2970 3210 3460 3770 5040 Working radius(mm) D 2300 2700 3140 3600 3920 4510 Ground clearance(mm) E 450 500 700 Side shift distance(mm) F 0 0 770 0 770 0 1000 0 1200 0 Min. transporting width(mm) G 1150 1700 1470 1700 1470 1700 1700 1850 2000 2100 Max.width of supporting legs(mm) H 2100 2200 1470 2200 1470 2200 1700 2300 2000 2550 Bucket width(in) 14 16 18 20 22 Bucket capacity(m³) 0.03 0.04 0.05 0.06 0.07 0.13 Weight (kg) 360 550 600 560 620 630 700 800 1000 1500 PTO hydraulic system 6/8/21 splines (option) Thumb grab option
