• Model NO.：WSP series
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Capacity：80-600kg H
• Key Word 1：Fish Feed Machine
• Key Word 2：Feed Pellet Machine
• Key Word 3：Floating Fish Feed Machine
• Transport Package：Wooden Cases
• Specification：ce co ccc
• Trademark：WS
• Origin：Henan
• HS Code：8474802000
• Production Capacity：80-600kg H

Basic Info.

Model NO. WSP series Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Powder Capacity 80-600kgH Key Word 1 Fish Feed Machine Key Word 2 Feed Pellet Machine Key Word 3 Floating Fish Feed Machine Transport Package Wooden Cases Specification ce co ccc Trademark WS Origin Henan HS Code 8474802000 Production Capacity 80-600kgH

Product Description

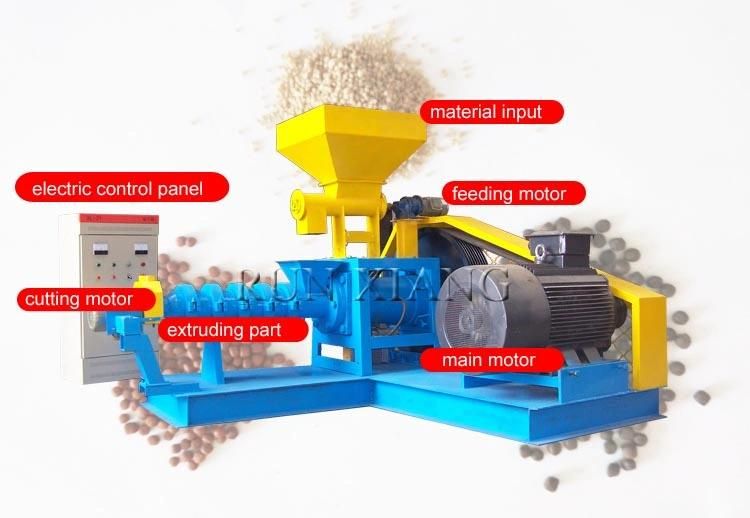

Floating fish food feed pellet making extruding machine

The poultry-fodder can feed chicken, rabbit, sheep, pig, horse cattles and so on. The pet-fodder can feed dogs, cats, goldfish etc. The Fishery-feed can feed the fish, shrimps, crab, eel,catfish, batrachia and so on.

1. Brief Introduction of Floating fish food extrusion animal feed feed extruded machine

Floating fish feed machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours. According to your requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.

2.Working process of Floating fish food extrusion animal feed feed extruded machine

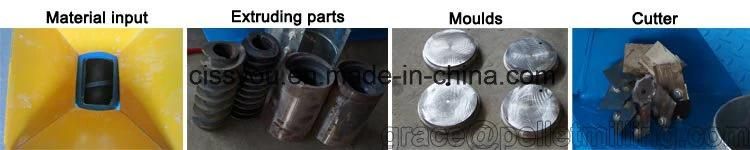

 After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.

3.Application and features of Floating fish food extrusion animal feed feed extruded machine

 Some customers use the processing machinery to produce some aquatic livestock fodder, namely, crab fodder, fin less EEL fodder, tortoise fodder, small-sized fish fodder, special fish food for goldfish, red parrot, dragon fishseawater ornamental fish.

1.Variety shapes of high-grade feed pellets for fish, shrimps .etc this machine can be  produced ,According to different requirements.

2.The finished pellets can keep floating for 5-10 hours without pollution to water.(Based on the materials of the feed )

3. By changing the mold,the Floating fish feed machine can make output of the feed pellet from dia.1.0mm-20mm.

4.The floating time can be controlled by the puffing degree adjustment.

5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.

6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.

7.The wet type Floating Fish Feed Machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

4.Raw material of the Floating fish food extrusion animal feed feed extruded machine

You can use different raw material,such as wheat,corn,soghum,etc., to make animal feed pellet by our machine.

The animal feed pellet is more nutrition and more convenient.

When make animal feed pellets,people usually add some vitamin and oil,so that animals like to eat them

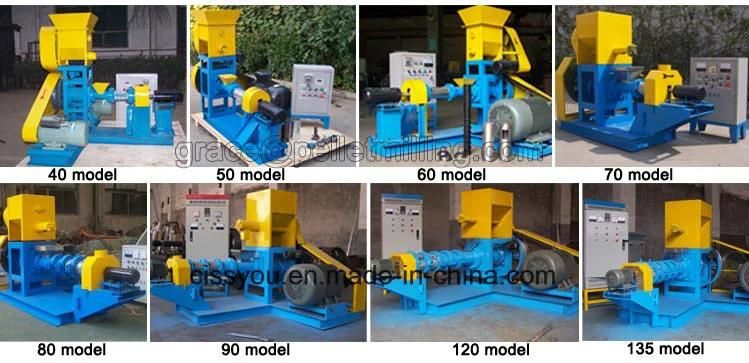

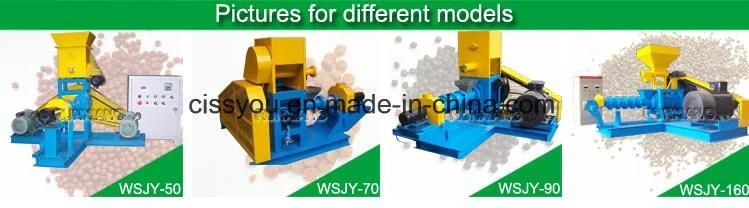

Model	Capacity(kg/h)	Motor power(kw)	Feed power(kw)	Screw Dia(mm)	Cutting power(kw)
WSJY-60	120-150	15	0.4	60	0.4
WSJY-70	180-250	18.5	0.4	70	0.4
WSJY-80	300-350	22	0.4	80	0.6
WSJY-90	400-450	30	1.1	90	0.6
WSJY-120	500-700	55	1.1	120	1.5
WSJY-135	800-1000	75	1.1	133	2.2
WSJY-160	1200-1500	90	1.5	155	2.2
WSJY-200	1800-2000	132	1.5	195	3.0
