55-70HP 3-Point Linkage Igna Agricultural Rotary Tiller Machine

Changzhou Kaideli Machinery Co., Ltd.
  • Type：Rotary Tiller
  • Application Field：Agriculture
  • Farming Policy：Dry Cultivating Machinery
  • Power Source：Tractor
  • Operation：Soil Preparation Machinery, Continuous Running Operation
  • Traction Type：Traction

Base Info

  • Model NO.：IGNA-180, IGNA-200
  • Drive Type：Gear Drive
  • Arbor Configuration：Horizontal Axis
  • Certification：CE
  • Color：Customize
  • Rotary Tiller：Ign90,105,125,135,150,180
  • Transport Package：Steel Crates
  • Specification：CE Standard
  • Trademark：Kaideli
  • Origin：Changzhou, China
  • Production Capacity：50PCS,Month

Description

Basic Info.

Model NO. IGNA-180, IGNA-200 Drive Type Gear Drive Arbor Configuration Horizontal Axis Certification CE Color Customize Rotary Tiller Ign90,105,125,135,150,180 Transport Package Steel Crates Specification CE Standard Trademark Kaideli Origin Changzhou, China Production Capacity 50PCS/Month

Product Description

Product Description
IGNA Rotary Tiller/Rotary Hoe
PTO driven, adjustable rear flap for safety as will as providing a smooth finish
~6 extra strong blades per flange for a more thorough tilling of top soil
~Height adjustable skids for depth control

IGNA series
ModelIGNA-180IGNA-200IGNA-220IGNA-230
Tractor HP55-77hp55-70hp55-70hp55-70hp
3-point linkageCat-2Cat-2Cat-2Cat-2
Length1030mm1030mm1030mm1030mm
Width1970mm2170mm2370mm2470mm
Height1145mm1145mm1145mm1145mm
Weight490kg498kg505kg512kg
Digging Width1800mm2000mm2200mm2300mm
Digging Depth180mm180mm180mm180mm



Product Specifications:
The rotary hoe has four models, available in category 2 three point linkage, form 6 to 7.5 foot for tractors up to 70hp.
Uses:
Whether you are laying turf around a golf course or growing small crops, the rotary hoe is perfect for preparing your top soil for planting~ creates a seed bed finish and is ideal for crop and lawn preparation~improving productivity, as well as presentation.
Features:
Adjustable rear flap for safety as well as providing a smooth finish~6extra strong blades per flange for a more thorough hoeing of top soil~height adjustable skids for depth control~extra string design for long life&reliability.

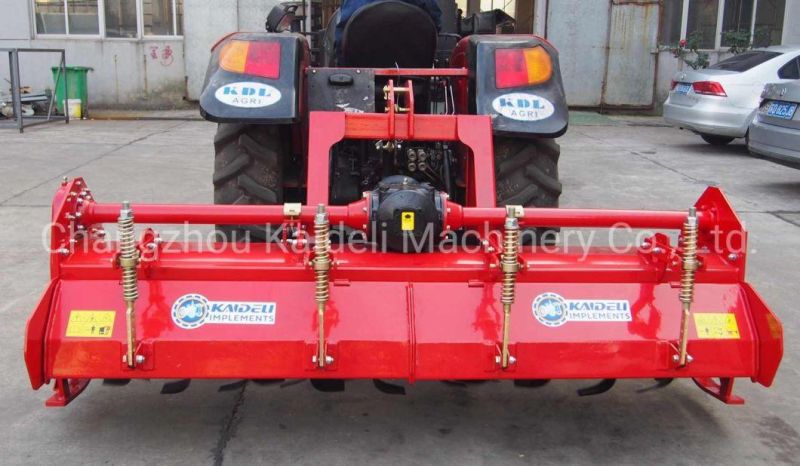

55-70HP 3-Point Linkage Igna Agricultural Rotary Tiller Machine

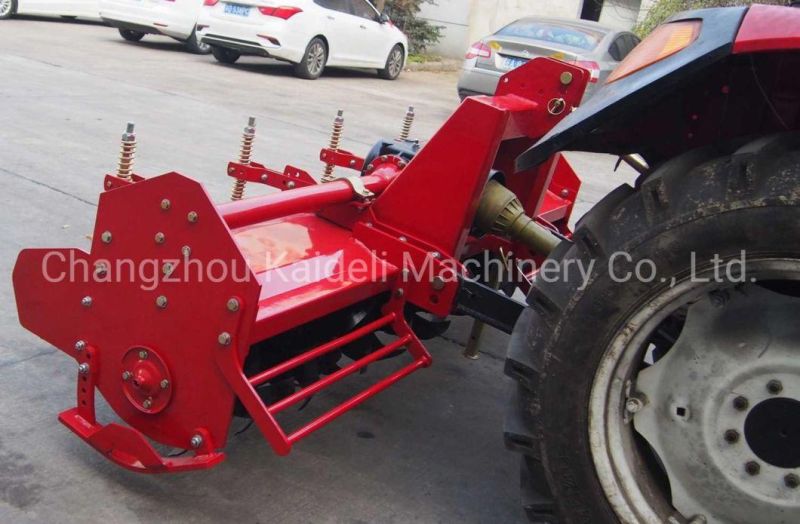

55-70HP 3-Point Linkage Igna Agricultural Rotary Tiller Machine

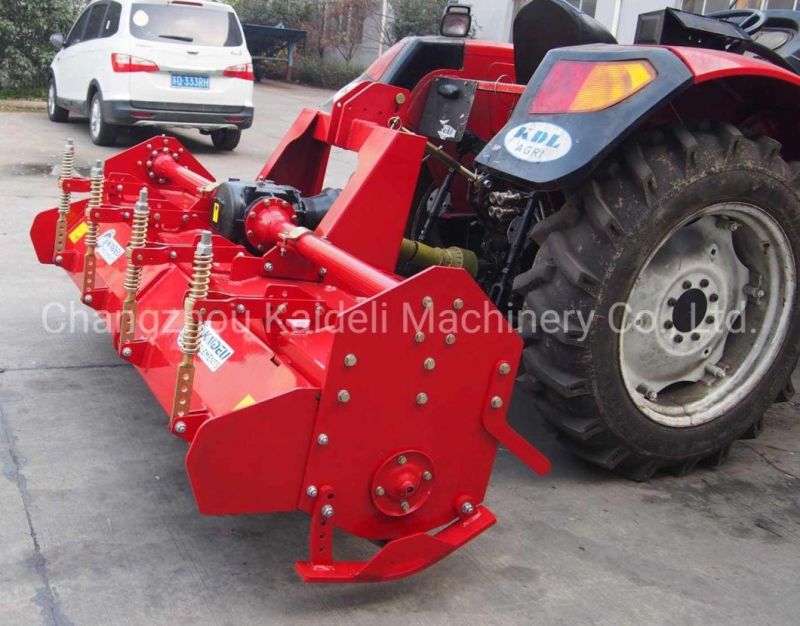

55-70HP 3-Point Linkage Igna Agricultural Rotary Tiller Machine






Your Professional  Manufacturer of Tractor &ATV,UTV Implements  (front end loader, backhoe, mower, rotary tiller, wood chipper,snow plow and so on, aslo OEM service provided)
