Lp35 Carbon Steel Animal Waste /Fall Lamella Conveying Pump with Large Capacity
Jiangsu Stord Works Ltd.- Processing Object:Animal-Derived Feed
- Processing Technics:Crushing-before-Mixing
- Screen Mesh:Without Screen Mesh
- Grinding Equipment Type:Roll Crusher
- Pellet Mill Type:Screw Granulator

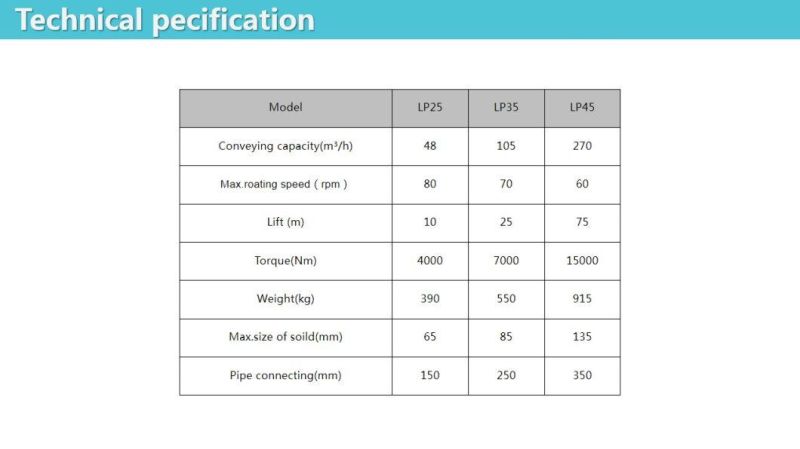

- Conveying Capacity:48m3 ,H (105 M3,H,270 M3,H)
Base Info

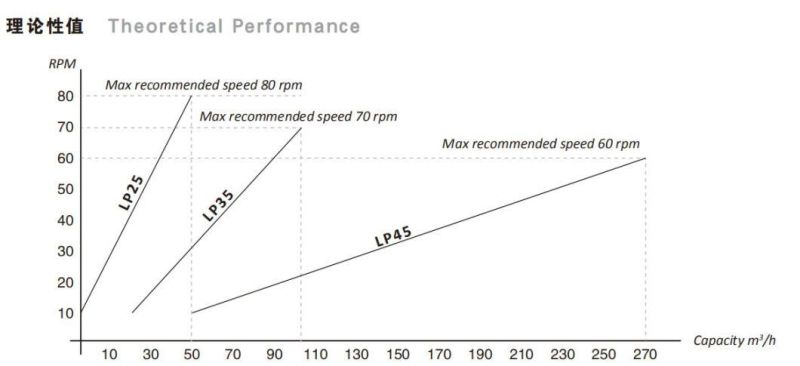

- Max. Rotating Speed:80rpm (70 Rpm,60 Rpm)
- Lift:10 M(25m,75m)
- Torque:4000 Nm(7000 Nm,15000 Nm)
- Weight:390 Kg (550 Kg,915 Kg)
- Max. Size of Slolid:65mm(85 mm,135 mm)
- Pipe Connection:150mm (250 mm,350 mm)

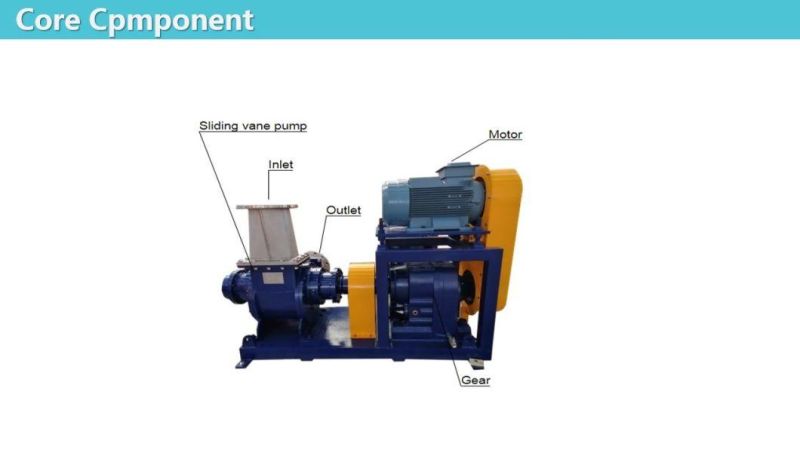

- Core Components:Motor
- Power:30kw-110kw
- Structure:Conveyor System
- Transport Package:New Design Bone Crusher Machine: Good Packed by Pl
- Trademark:stordworks
- Origin:Jiangsu. China
- Production Capacity:20sets,Mounth
Description
Basic Info.
Max. Rotating Speed 80rpm (70 Rpm,60 Rpm) Lift 10 M(25m,75m) Torque 4000 Nm(7000 Nm,15000 Nm) Weight 390 Kg (550 Kg,915 Kg) Max. Size of Slolid 65mm(85 mm,135 mm) Pipe Connection 150mm (250 mm,350 mm) Core Components Motor Power 30kw-110kw Structure Conveyor System Transport Package New Design Bone Crusher Machine: Good Packed by Pl Trademark stordworks Origin Jiangsu. China Production Capacity 20sets/MounthProduct Description

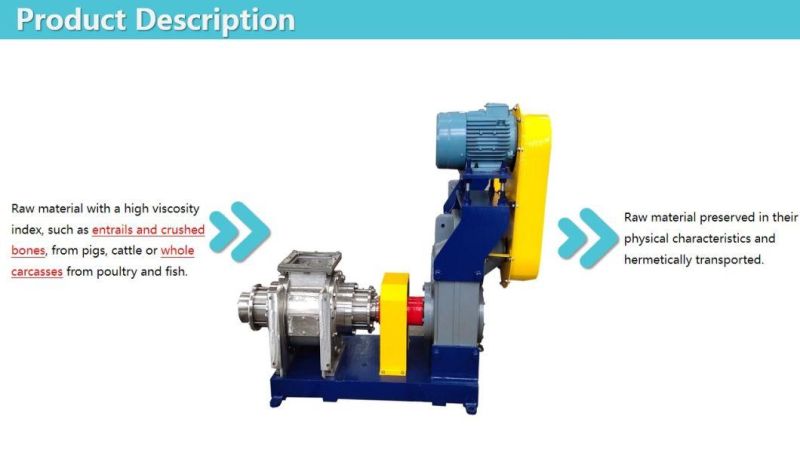

A tough and durable pump that is suitable for pumping large and hard particles such as fish and cut off's and animal by-products.
It is mainly used to convey liquid containing large particles and solid-liquid mixture with high viscosity e.g.pre-broken animal by-product,fish,pet food,etc
Key wearing parts like the rotor, Lamellas, wearing plates, cam discs, top- and bottom plates and wearing bars, can be supplied in tool steel quality stainless steel, with high strength, wear-resistance and excellent corrosion resistance.
Advantages
1.Clean and hermetic transport system;
2.Low energy consumption;
3.Easy maintenance access;
4.Comply with the requirements of the ISO standard.
5.Transport of materials for short and long distances, with a single actuation;
1) Carefully check the quantity and quality of equipment before packing.
2) Good packed by plastic wrap.
3) Fittings and spare parts are packed in wooden pallet .
4) Iron Frame, Suitable for land transport and sea freight.
5) Add labels and shipping mark.
