• Model NO.：4LZ-0.6
• Portable Harvester Type：Combine Type
• Certification：ISO9001:2008
• Color：Green
• Condition：New
• Application Field：Agriculture
• Name：Rice Wheat Combine Harvester
• Efficiency：0.06-0.08ha.,H
• Weight：320kg
• Cut Width：80cm
• Work Gears：4
• Engine Power：7.5HP
• Track Type：250mm
• Harvest Row：2
• Impurity Rate：<2%
• Fuel Consumption：<20kg,Ha.
• Transport Package：Wood Case
• Specification：2500*1100*1500mm
• Trademark：no
• Origin：China
• HS Code：87000
• Production Capacity：3000

Basic Info.

Model NO. 4LZ-0.6 Portable Harvester Type Combine Type Certification ISO9001:2008 Color Green Condition New Application Field Agriculture Name Rice Wheat Combine Harvester Efficiency 0.06-0.08ha./H Weight 320kg Cut Width 80cm Work Gears 4 Engine Power 7.5HP Track Type 250mm Harvest Row 2 Impurity Rate <2% Fuel Consumption <20kg/Ha. Transport Package Wood Case Specification 2500*1100*1500mm Trademark no Origin China HS Code 87000 Production Capacity 3000

Product Description

Agriculture Machinery Mini Rice Paddy Cutting Machine small Rice Combine Harvester
paddy light weight combine harvester
Introduction

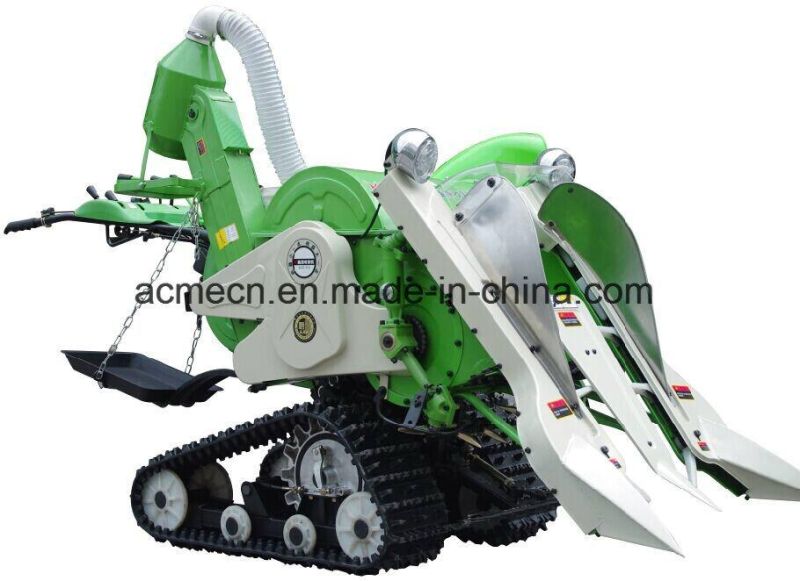

4LZ-0.6 gasoline combine harvester is track type, which can work in wet paddy filed with water and dry land.


Features of rice wheat combine harvester

the use of cylinder wheel institutions, convenient operation,the noise by vibrating screen institution,

mouth Lowered greatly throwing grain.

 1. Use of roller-typed running gear to adapt to deep-water fields, muddy fields and other poor working conditions of
 the rice harvest threshing operations.

2. In mountainous and hilly areas can be used flexibly

3. This kind of machines are easily operate and used widely.

Specification

Model		4LZ-0.6
Type		tracked
Structure		self propelled track
Working efficiency	ha/h.	0.06 to 0.08
Fuel consumption	kg/ha.	<30
Dimension	mm	2500*1100*1500
Weight	kg	320
Min. Ground clearance	mm	160
Cutting width	mm	920
Feeding capacity	kg/s	0.5
harvesting height	mm	650 -1200
Stubble height	mm	150-300
Walking speed	m/s	0.4-0.6
Working gears		5
working speed	m/s	fast 0.9 ,while slow 0.4
Engine output	kw	7.4kw/3600rpm
Fuel type		Gasoline oil
Engine model		188F
Engine type		10hp 188F air cooling gasoline engine, Single cylinder, 4 stroke
Rubber track		250mm width, ground touching length 870mm
Working Gear type		Blet and tension wheel type
Traveling gear type		Blet and tension wheel type
Harvest row number	rows	2
Breakage rate		less than 0.5%
loss rate		less than 1%
Grain Impurity rate		less than 2%

Pre-Sales Service

1) Production arrangement.
2) Production planning provided.
3) Workshop visiting available.
4) Detailed specifications of machines provided.
5) Able to provide deatield Solutions.



After-sales service
1) Assistance to build factory.
2) Repairing and maintenance if any problem occur in warranty.
3) Installation and clerks training.
4) Spare and wearing parts for free or with discounts.
5) Inspections in factory.
