• Model NO.：5BY-5B
• Weigh：700kg
• Delivery Date：15 Days
• Warranty：1 Year
• Transport Package：Usually Export Standard Wooden Boxes
• Specification：2200x850x2000MM, 2.3 ton
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：5 Ton,Hour

Basic Info.

Model NO. 5BY-5B Weigh 700kg Delivery Date 15 Days Warranty 1 Year Transport Package Usually Export Standard Wooden Boxes Specification 2200x850x2000MM, 2.3 ton Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 5 Ton/Hour

Product Description

5T/H vegetable seed wheat seed treating machine

Features of 5BY-5B Seed Coating Machine:

The 5BY-5B seed treater is controlled by the dosing pump, it can adjust the quantity and the ratio of medicine/ seed, so it is easy operate, and it can clean itself automatically.

Application of 5BY-5B Seed Treater Seed Coating Machine:
The 5BY-5B series seed coating machine is a good choice for coating seed. It applies for various crops, such as seed of wheat, barley, maize, sorghum, soybeans, cotton, vegetables, fruits etc.

Working Principle of 5BY-5B Seed Coating Machine:

Seeds can be continuously fed into inlet through feeding bucket, at the same time quantitative medicine will be atomized by the high speed centrifugal rotary disk and adhere to the surface of seeds, then the seeds will be completely mixed by the soft auger in the stainless steel cylinder.
High speed centrifugal rotary disk (for atomizing the liquid medicine) and large stainless steel cylinder (for mixing by auger rolling), can have a good coating effect.

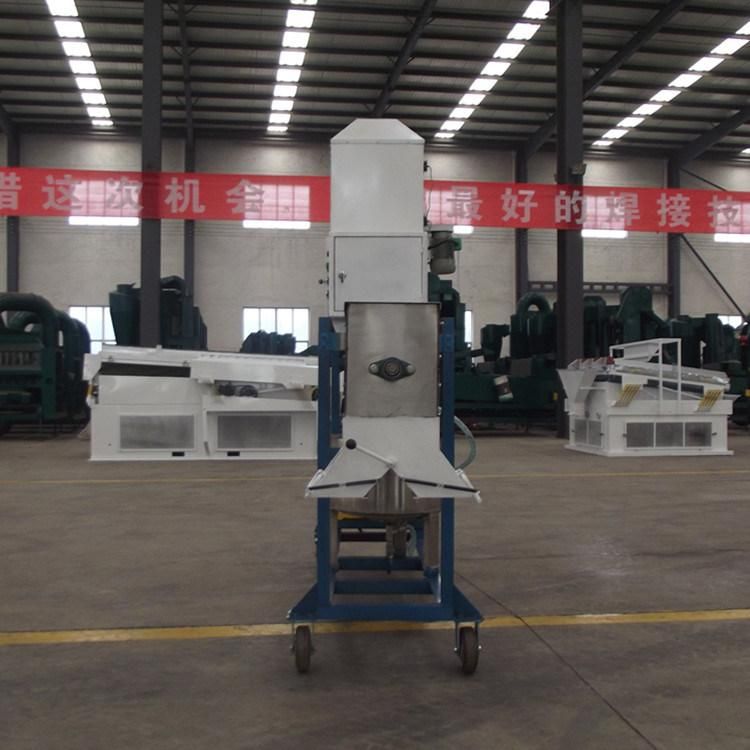

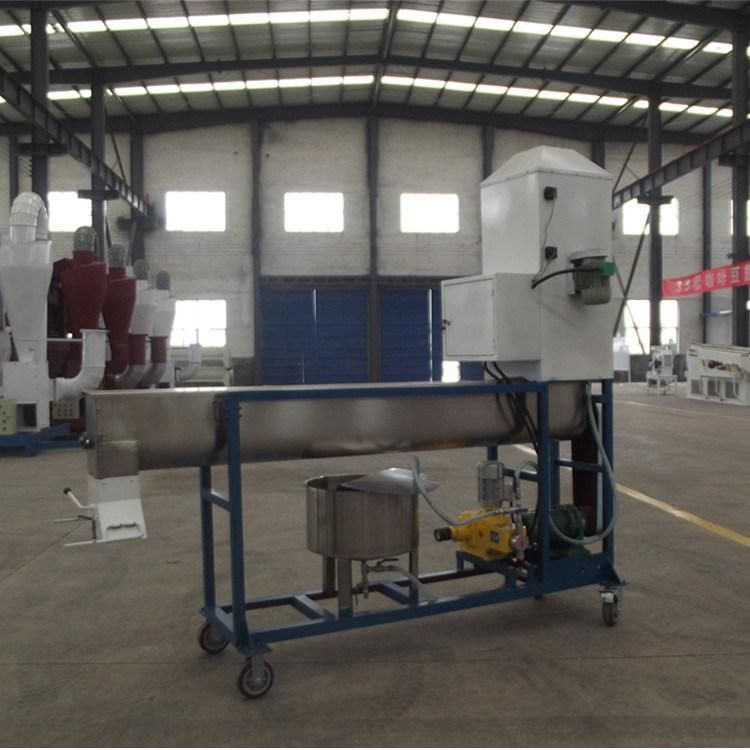

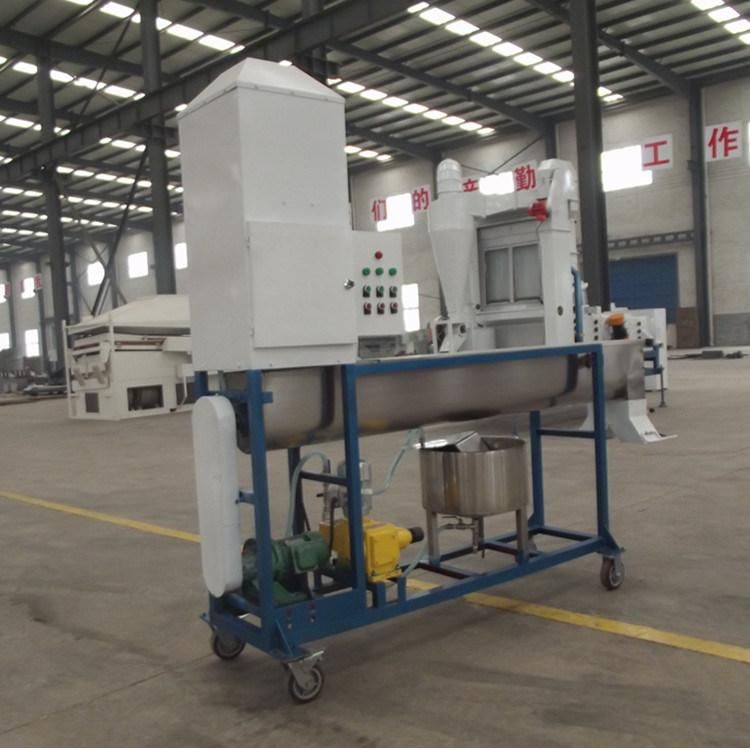

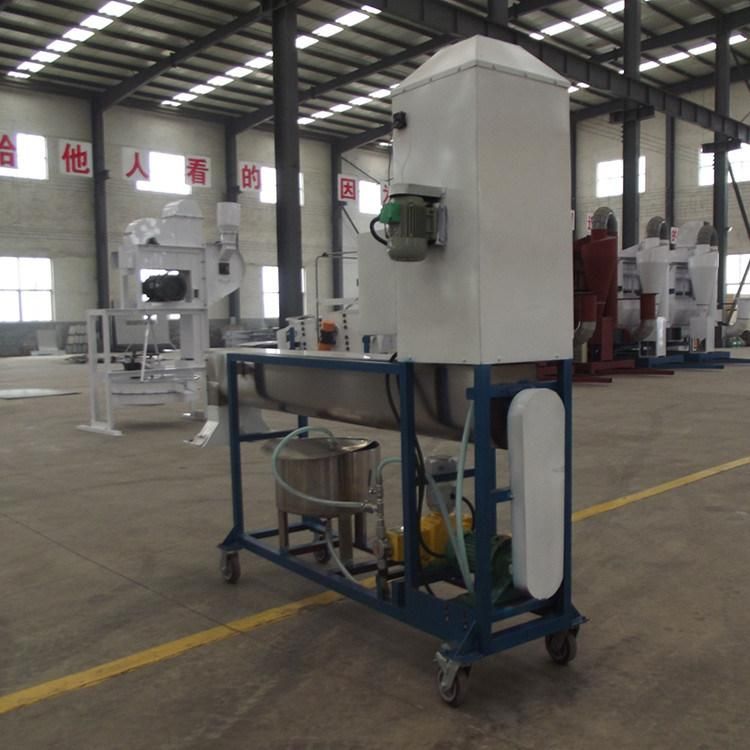

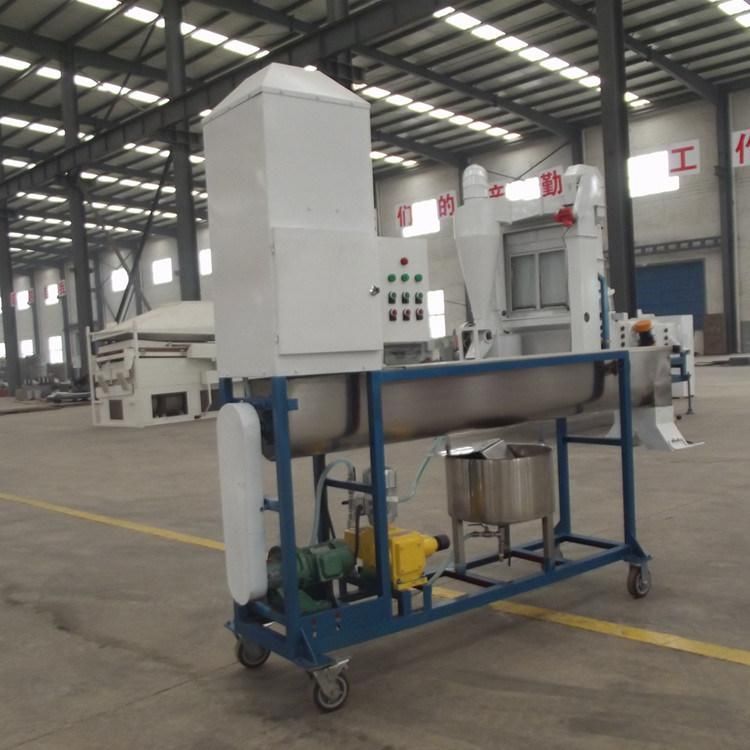

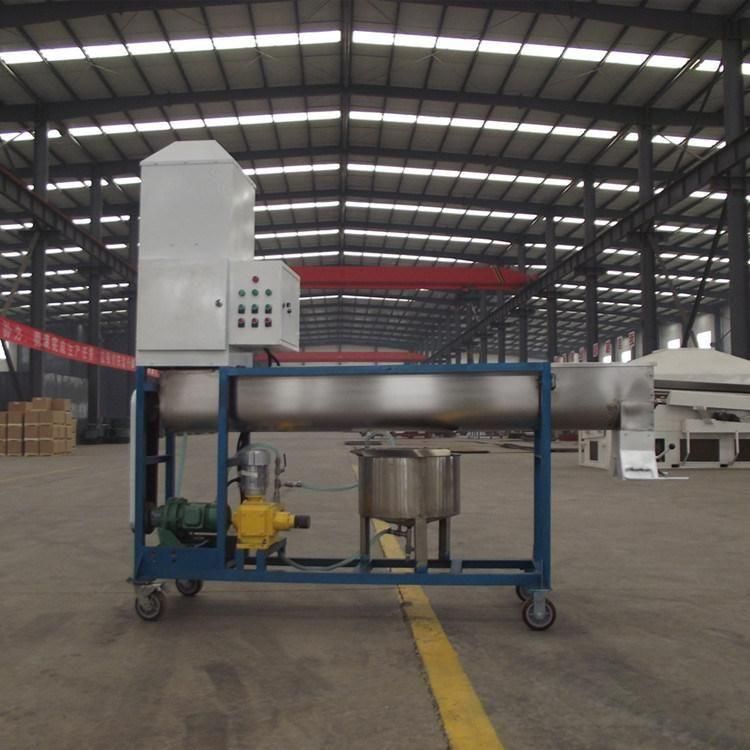

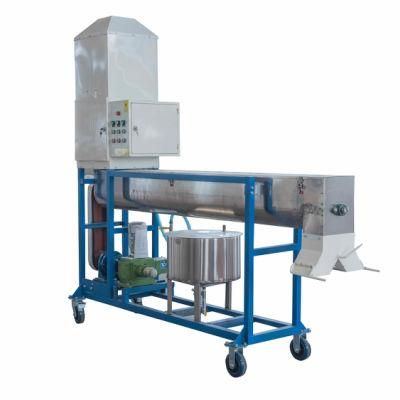

Photo reference of 5BY-5B Seed Coating Machine:

Type	Capacity (t/h)	Power (kw)	Weight (kg)	Dimension (mm)	Agent Supply Model
5BY-2 seed treater	2	1.47	200	1600× 800× 1500	Spoon
5BY-5A seed treater	5	6	800	2200× 900× 2500	Spoon
5BY-5B seed treater	5	2.3	700	2150 × 800× 2400	Dosing Pump
