• Model NO.：YHCZ90
• Production Capacity：150-200kg,H

Basic Info.

Model NO. YHCZ90 Production Capacity 150-200kg/H

Product Description

YHCZ90 Sunflower Peanut Soybean Palm Round Barrel Seeds Roaster with Capacity 150-200kg/h

30YEARS FACTORY OF OIL PRESS MACHINE ---GUANGXINOil Press Oil Mill Oil Extraction Oil Processing Machine Oil Filter Oil Refinery Seeds Roaster Machine

Suitable oil seeds

Guangxin Brand spiral oil press made by our company is suitable for squeezing many kinds of vegetable oil, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds, sesame seeds, corn germ, palm kernel, etc.

Round Barrel Seeds Roaster YHCZ90
Processing Capacity 150-200kg Per Hour

Specifications:
1. Help oil press to squeeze more oil, hot press, 1 time press.
2. Economic, fuel can be wood, coal, gas.
3.800~900kg/h.

1. Application range:
YHCZ series seeds frying machine are suitable for all kinds of oil seeds, it is also the main pretreatment equipment for hot pressing of small and medium screw oil pressers and also used on baking processing technical.
Suitable vegetable seeds: Rapeseeds, cotton seeds (remove fluff first), soybean, peanuts, flax seeds, sunflower seeds and palm kernel, etc.

2. Quality Standard:
Conform to JB/T9793.1-1999 of The People's Republic of China & ISO9001: 2008.
3. Co-operating customers' feedback:
Easy operation, high efficiency, it's good helper for screw oil press, especially good preparation for vegetable oil seeds before squeezing. Economic fuel take customer low cost.

4. Warranty terms:
A. Free replacement of accessories in 6 months from the date of purchasing.
B. Free replacement of main body in 12 months from the date of purchasing.

5. After-sale service:
A. We supply spare parts all year around at factory cost.
B. We afford technical solutions for buyers at any time.

Model	Processing Capacity (kg/h)	Available capacity (kg/t)	Revolving Speed (r/min)	Eletromotor (4P,KW )	The wheels And belts (mm)
YHCZ70	60~100	15~25	15~25	1.1	Φ75
YHCE80	100~150	25~35	15~25	2.2	Φ75
YHCZ90	150~250	35~50	15~25	2.2	Φ75
YHCZ100	200~250	50~60	15~25	2.2	Φ75
YHCZ110	300~400	75~100	15~25	2.2	Φ75



Guangxin Single Oil Press Machine Processing Capacity 1.3~20TPD (t/24h)

Model	Processing Capacity (t/24h)	Motor Power (kw)	Weight (kg)	Measurement(mm)(L*W*H)	Oil Content of Dry cakes (%)	Spiral Axes Rotate Speed (r/min)
YZYX70	1.3	4	195	1180*405*1120	≤7.8	33-42
YZYX90	3	5.5	285	1250*550*1140	≤7.8	32-42
YZYX10(95)	3.5-4	7.5 or 11	528	1650*730*1340	≤7.8	32-40
YZYX10-6/8/9	4.5	11	590	1760*730*1340	≤7.8	32-40
YZYX10J-2	4.5	11	600	1770*730*1340	≤6.0	32-40
YZYX120	6.5	11 or 15	680	1860*740*1275	≤7.0	28-40
YZYX130	8	15 or 18.5	825	2020*742*1420	≤7.6	32-40
YZYX140	9-11	18.5 or 22	806	2010*750*1430	≤7.6	32-40
YZYX120J	7	11 or 15	718	2110*780*1350	≤6.0	35-40
YZYX130GX	8-10	18.5	998	2100*820*1400	≤7.8	30-40
YZYX140GX	9-11	18.5 or 22	1000	2150*820*1420	≤7.8	30-40
YZYX140CJ	9-11	22	980	2220*750*1420	≤7.8	32-40
YZYX140CJGX	9-11	22	1100	2300*820*1420	≤7.8	30-40
YZYX168	20	37 or 45	1820	2750*1100*1830	≤7.4	36-44

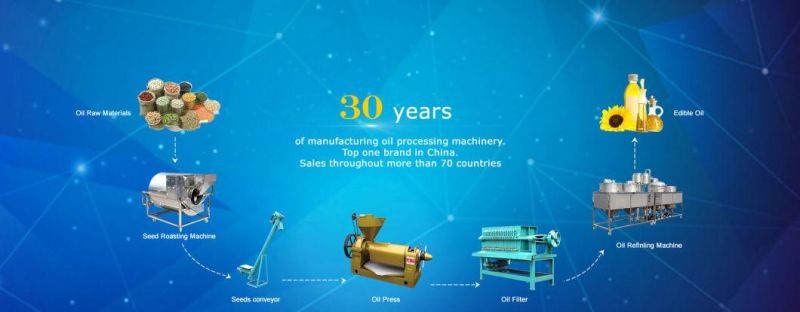

 Process of making edible cooking oil is as following:
