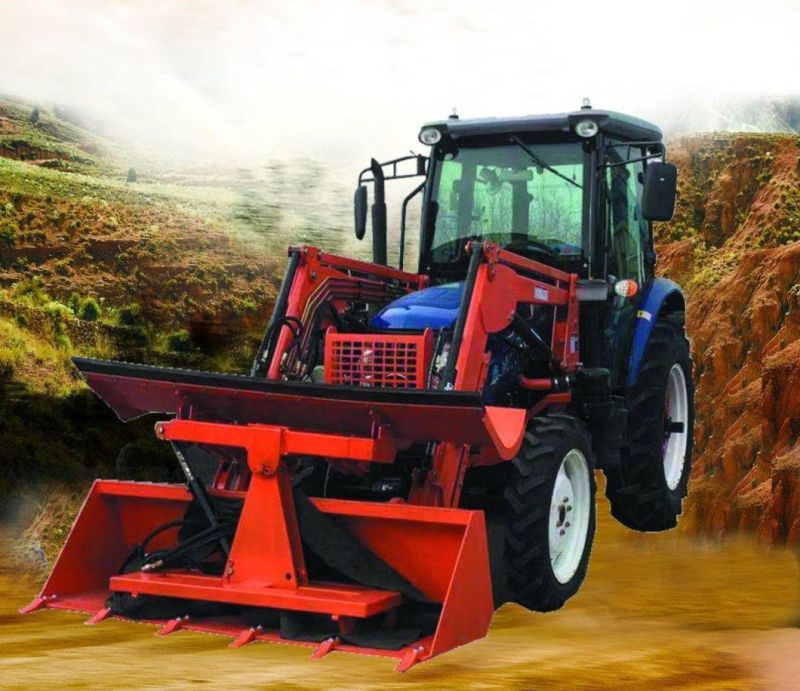

Ce Certificated Tractor Front End Loader for 20-50HP Tractor
Weifang Taihong Tractor Co., Ltd.- Type：Agriculture
- Application Field：Agriculture, Livestock, Aquaculture, Fisheries, Forestry
- Farming Policy：Mountain Machinery
- Power Source：Tractor
- Operation：Arable Machinery, Movable Operation
- Traction Type：Tractor Powered
Base Info
- Model NO.：TZ-4
- Drive Type：Hydraulic Transmission
- Certification：CE, ISO
- Color：Black
- Matched Tractor Power：30-45HP
- Bucket Capacity：0.23 Cbm
- Transport Package：Mounted on Tractor or Metal Frame
- Specification：4100*1600*1580mm
- Trademark：Taihong
- Origin：Weifang China
- HS Code：8430699000
- Production Capacity：1000 Units,Year
Description
Main specification of TZ series tractor front end loaderModel NO. TZ-3 TZ-4 TZ-8 TZ-10 TZ-12 TZ-16 Overall dimensions (mm) 4100×1600×1580 4100×1600×1580 4900×1739×2494 4900×1739×2494 5350×1800×3000 5850×2100×3600 Power (HP) 20~30 30~45 50~70 80~90 100~125 140-160 Max. dump height(mm) 1800 2000 2200 2400 2800 4100 Max. dump distance(mm) 900 900 960 1000 1100 1400 Bucket rollback angle 42° 42° 42° 42° 42° 42° Max. unloading angle 47° 47° 46° 46° 46° 46° Max. scraping depth(mm) 100 140 160 160 160 160 Lifting time to pivot pin(S) 7 7 8 8 10 12 Descending time(S) 3.5 3.5 4 4 10 12 Bucket capacity(m3) 0.2 0.23 0.43 0.6 0.65 1.45

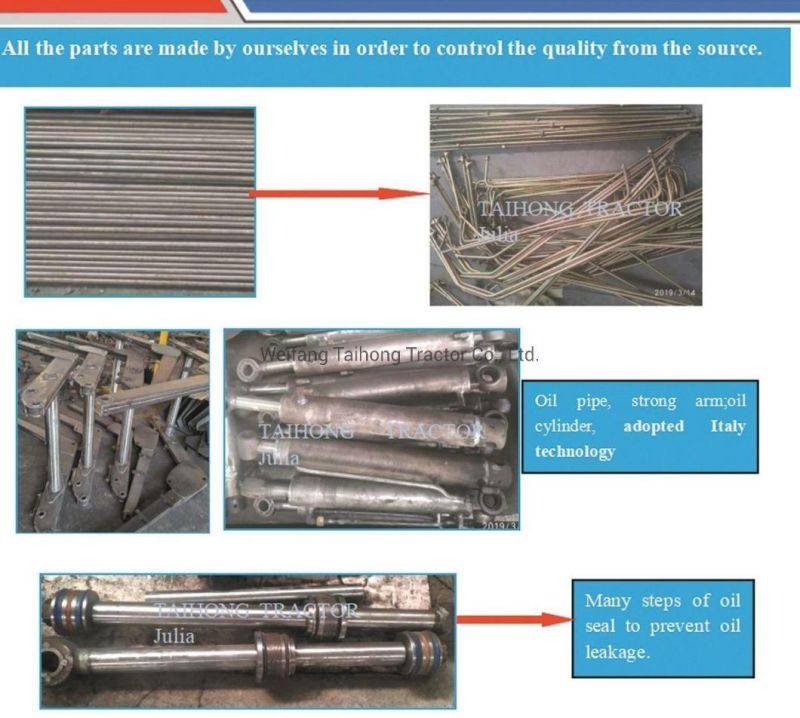

3. All the parts are made by ourselves to make the consistent quality.

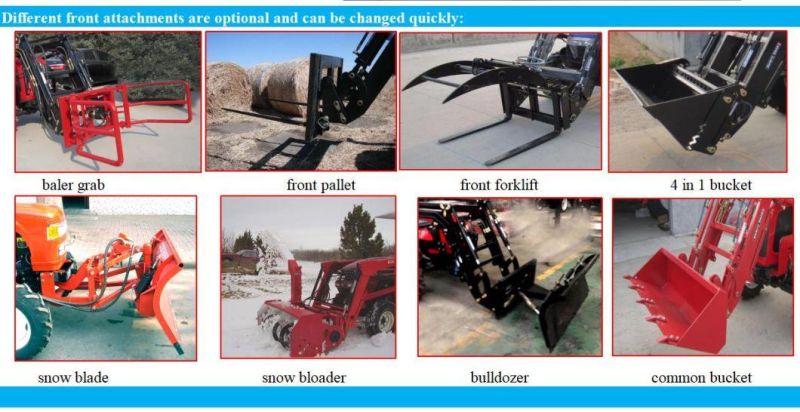

4. Other device can be attaced to tractor front: Baler grab, baler forklift, 4 in 1 bucket loader, snow blade, snowplow,
snow blower, bulldozer etc.
5. Contact us @ Ms Julia LiWeifang Taihong Tractor Co.,LtdAddress: West Baotong Street, Weifang City, Shandong Province, China.Tel:0086-536-8137298;Fax:0086-536-8139018Mobile :0086-15898945297 wftaihong.en.made-in-china.comhttps://wftaihong.en.made-in-china.com
3. All the parts are made by ourselves to make the consistent quality.
4. Other device can be attaced to tractor front: Baler grab, baler forklift, 4 in 1 bucket loader, snow blade, snowplow,
snow blower, bulldozer etc.
5. Contact us @ Ms Julia LiWeifang Taihong Tractor Co.,LtdAddress: West Baotong Street, Weifang City, Shandong Province, China.Tel:0086-536-8137298;Fax:0086-536-8139018Mobile :0086-15898945297 wftaihong.en.made-in-china.comhttps://wftaihong.en.made-in-china.com
