Agricultural Machinery

Automatic Hot-Galvanized Multi-Tier H Frame Battery Poultry Farm/Farming Equipment for Chicken Layer Hen Cage

Qingdao Muyuan Livestock Machinery Co., Ltd.
  • Type:Chicken Hen Cage
  • Usage:Chicken Layer Raising
  • Application:Chicken
  • Power Source:Electric
  • Heating and Ventilation Equipment Type:Air Duct
  • Epidemic Prevention Equipment:Mobile Vaccination Car

Base Info

  • Model NO.:9LDC8576
  • Computerized:Computerized
  • Certification:ISO9001:2008
  • Condition:New
  • Material:Hot Galvanised
  • Feature:Practical, Durable, Cheap
  • Tier:8 Tier
  • Capacity:256,288 Birds Per Unit
  • Automatic:Fully Automatic
  • One Unit Size:1200m*1560mm*5940mm (L*W*H)
  • One Cell Size:600mm*600mm*445(L*W*H)
  • Color:Sliver
  • Life Span:15~20 Years
  • Transport Package:Standard Packing
  • Specification:H frame layer cage
  • Trademark:Hengin
  • Origin:China
  • HS Code:84362900
  • Production Capacity:15000

Description

1.The distance between each legs is 1206mm, the tier height is 590mm, and the width (including feeding troughs) 1560mm.


Such cages have larger bearing capacity and the more breeding space, C shape leg is formed of hot dip galvanized sheet is easy to clean.


 2.Cage bottom mesh adopt Belgium Bekaert galvanized aluminum wire, the advantages of this wire is high intensity, good elasticity ,it can effectively alleviate the chicken fatigue.


Compared to hot-dip ,it's not only greatly enhance the arntirust effect, but also improve the cage surface smooth, to avoid the hurt of chicken scratch.

 3. The material of the steel frame is galvanized sheet , the material strength can reach more than 450Mpa, the galvanized zicn coating is 275g/sqm.

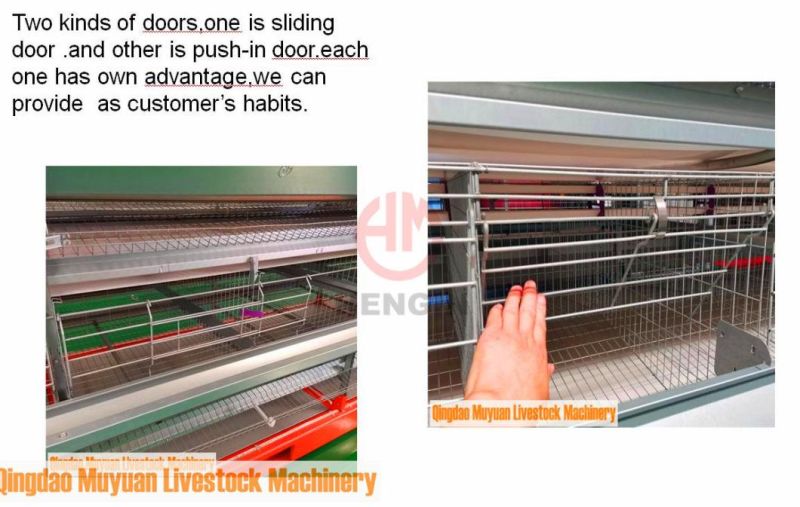

 4.Sliding door with lock is convenient to open and close. thus no layers can run away, and feed can not be thrown out of trough when eating.

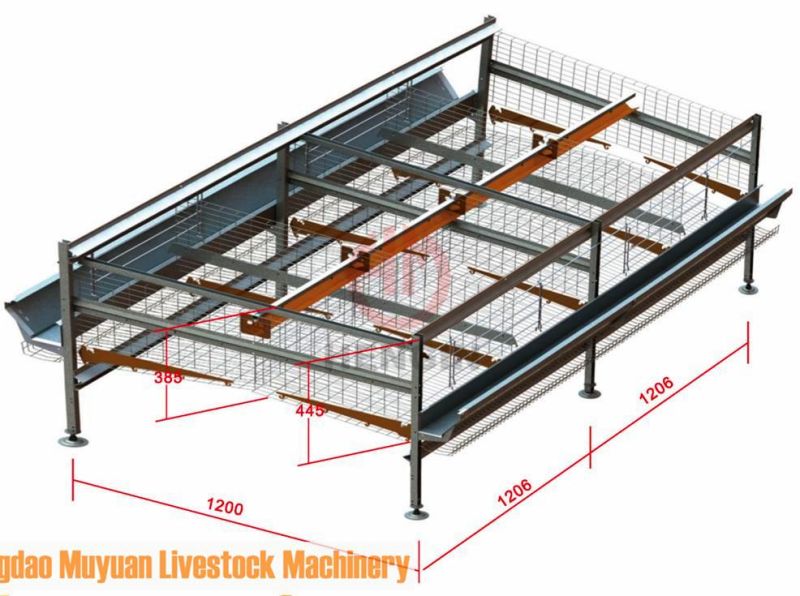

1).The distance between each legs is 1206mm, the tier height is 590mm.

  Automatic Hot-Galvanized Multi-Tier H Frame Battery Poultry Farm/Farming Equipment for Chicken Layer Hen Cage

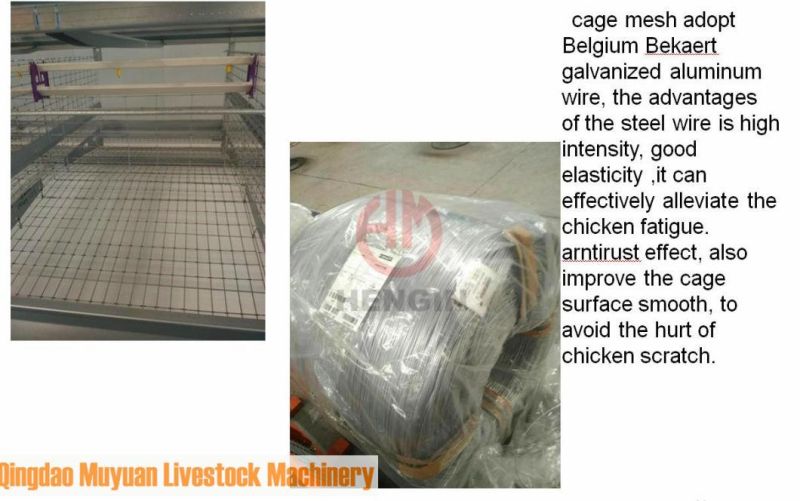

2).cage bottom mesh adopt Belgium Bekaert galvanized aluminum wire.


 Automatic Hot-Galvanized Multi-Tier H Frame Battery Poultry Farm/Farming Equipment for Chicken Layer Hen Cage

 3). Automatic Hot-Galvanized Multi-Tier H Frame Battery Poultry Farm/Farming Equipment for Chicken Layer Hen Cage


 3)The cage bottom adopt Belgium Bekaert galvanized aluminum wire,which advantage is high intensity, good elasticity , the surface is so smooth to reduce the egg breakage.



Automatic Hot-Galvanized Multi-Tier H Frame Battery Poultry Farm/Farming Equipment for Chicken Layer Hen Cage

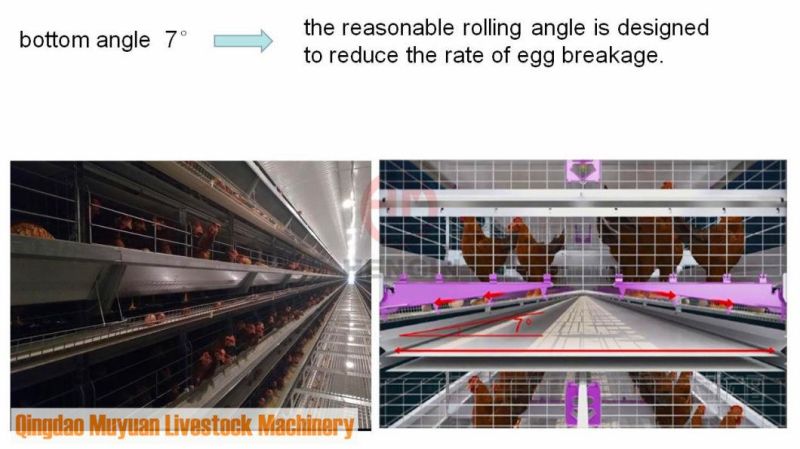

4). cage bottom angle is 7°,the reasonable rolling angle is designed to reduce the rate of egg breakage .



Automatic Hot-Galvanized Multi-Tier H Frame Battery Poultry Farm/Farming Equipment for Chicken Layer Hen Cage


Automatic Hot-Galvanized Multi-Tier H Frame Battery Poultry Farm/Farming Equipment for Chicken Layer Hen Cage

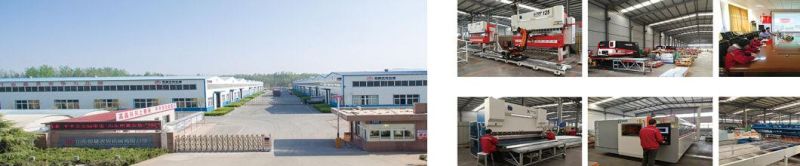

  Factory Introduction

 Our factory was founded in 2002 and has more than 800 employees,covers more than 100,000 square meters,is a professional manufacturer of poultry farming equipments including

"H"frame layer cage system,broiler cage system,duck-production cage system, ,egg-duck cage system ,layer rearing cage system,layer breeder parents cage system,feed silo,bulk feed transporting tank and feed machinery etc.


 Automatic Hot-Galvanized Multi-Tier H Frame Battery Poultry Farm/Farming Equipment for Chicken Layer Hen Cage

FAQ


Q1:How many types for layer chicken cage?

A1: We have two types, A frame and H frame.
A frame have two models, 3tiers and 4 tiers.
H frame have 7 models , including 3 tiers,4 tiers,5tiers,6tiers,8 tiers ,10 tiers



Q2:How much per set cage?
A2:Different model,price is different.In addition,there are other complement equipments.
Need know how many birds you want to rear,then we can give you a specific price list with house size.



Q3:How long is the warrenty?
A3:1 year.


Q4:Who is in charge of install ?
A4:We will arrange two engineers to your country to guide installation and provide training of full cage system.
