• Model NO.：GL-4E
• Production Capacity：1000sets,Year

Basic Info.

Model NO. GL-4E Production Capacity 1000sets/Year

Product Description

Zoomlion orchard harvester features the first groups of advanced multi-functional picking machines industry-leading in China. It is widely used in standard picking operations for apples, pears and other spherical fruits. With advanced technology and reliable performance, it effectively reduces labor load, and greatly improves fruit picking efficiency and harvest quality.



With diesel and lithium battery power available, these machines travel with wheel rim CVT, max speed up to 15km/h. While each machine needs 4-6 workers for picking operation, its picking capacity is around 1-2 tons/h.

With front-wheel and four-wheel steering mode switchable, its minimum steering radius is less than 3 meters, while capable of driving and turning around in orchard freely.

The frame is longitudinally adjustable at 8 degrees and laterally adjustable at 6, keeping the fruit frame level even on the sloping ground , ensuring the whole operation safety and reducing the fruit loss.



Left/right 2 picking platforms for independent control and operation without interference with each other.

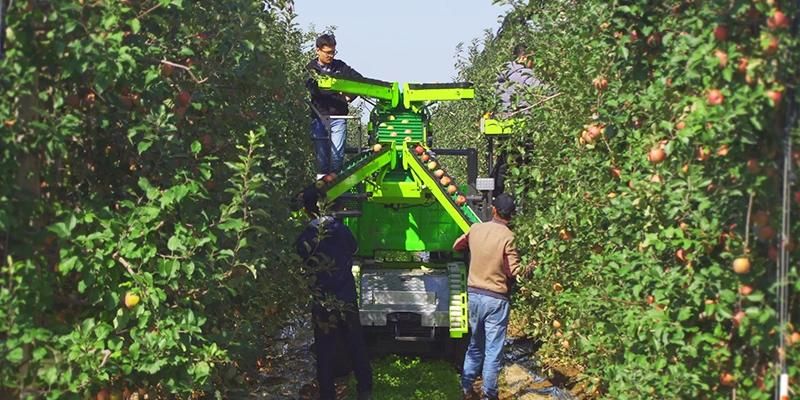

4 long and short picking arms help pickers to put fruits of different heights onto the conveyor belt and automatically collect fruit into the box.

The picking arm is able to hover at any position, facilitating fruit picking and placing.

The conveyor arm speed is steplessly adjustable as per the orchard fruit yield.



The fruit box rotates evenly while the fruit is being conveyed from the conveyor belt to the fruit box so as to avoid fruit accumulation.

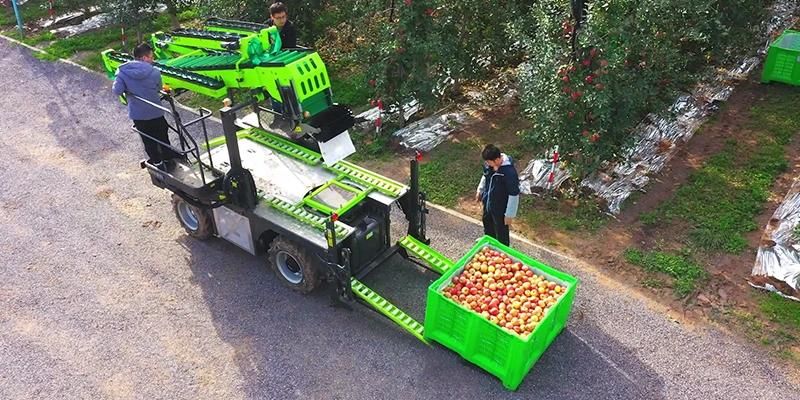

Fruit box pulls to unloading fork after fully loaded, and unloads onto the ground via hydraulic box unloading system.
CANBUS communication available for intelligent monitoring, diagnosing and alarming of system failure.


Type	Unit	GL-4E
Suitable row spacing	m	3~4
Battery type	/	LFP(lithium iron phosphate)
battery capacity	kwh	35/26 optional
Overall size (fully unfolded)	mm	7230×3200×2730
Shipping size (fully folded)	mm	4000×1850×2730
Overall quality	kg	2500
Front wheel size	/	10/75-15.3TL(14Level)
Rear wheel size	/	10/75-15.3TL(14Level)
Walking transmission mode	/	Hydraulic motor + planetary reducer
Maximum speed	km/h	15
Maximum climbing	%	26.8(15°slope)
Vertical leveling angle	°	8
Horizontal leveling angle	°	6
Picking efficiency in pure working hours	kg/h	1500-2000
Number of operators	/	4-6
Hydraulic oil tank volume	L	40
Wheelbase	mm	1935
Treadwheel span	mm	1225
Minimum ground clearance	mm	230
Minimum turning radius	mm	<5000
Short conveyor arm length	mm	1200
Long conveyor arm length	mm	2300
Number of picking platforms	/	2
Size of picking platforms (length×width)	mm	1100×400
Min height of the picking platform from the ground	mm	1160
Max height of the picking platform from the ground	mm	2300
Max horizontal extension width of the picking platform	mm	3200
Number of fruit baskets	/	3
