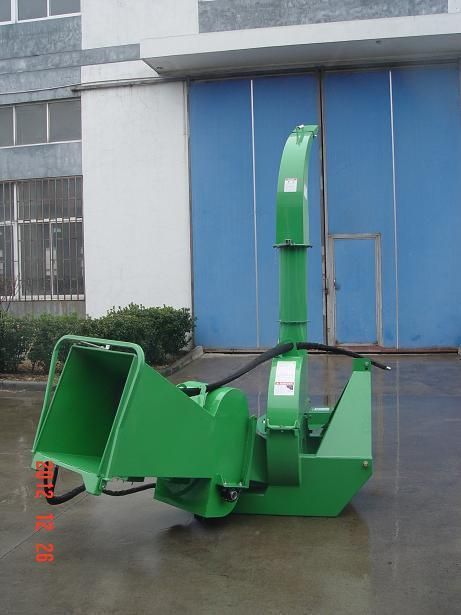

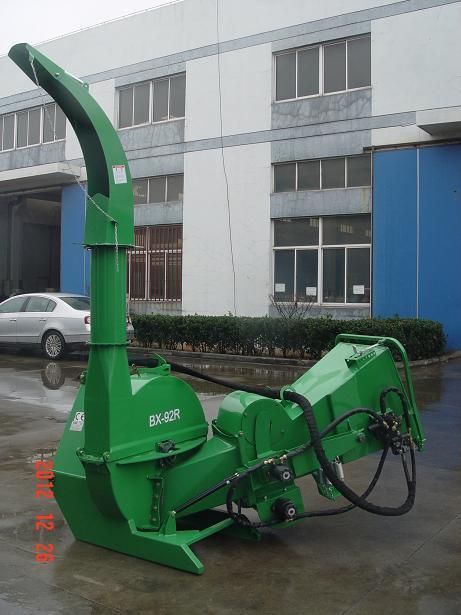

Th-8 Wood Chipper. Tractor Wood Chipper Machine, Wood Chipper Bx92r
Ningbo Lizhong Industry Co., Ltd.- Type：Wood Chipper
- Certification：CE
- Engine Type：Tractor
- Drive System：Direct Drive, Pto W, Shearbolt
- HP Range：65-150
- Chipper Capacity：10" Dia. (up to 14" Slab)
Base Info
- Rotor Size：36"
- Number of Rotor Knives：4
- Feeding System Feed：Hydraulic Feed
- Discharge Hood Rotation：360 Degree
- Discharge Hood Height：84"
- Transport Package：Steel Frame
- Specification：CE
- Trademark：Lizhong
- Origin：China
- Production Capacity：1000PCS,Month
Description
Basic Info.
Rotor Size 36" Number of Rotor Knives 4 Feeding System Feed Hydraulic Feed Discharge Hood Rotation 360 Degree Discharge Hood Height 84" Transport Package Steel Frame Specification CE Trademark Lizhong Origin China Production Capacity 1000PCS/MonthProduct Description
th-8 wood chipper.tractor wood chipper machine,wood chipper bx92r1. RotorAt The Heart Of The BX Chipper Is An Oversize Heavy Duty Rotor And Reversible Chipping Blades. The Large Diameter Rotor Has A Faster Tip Speed For Improved Chipping Action And The Heavy Gauge Steel Keeps Your Momentum To Power Through 6" Diameter Tree Trunks. 2. Blades
The Reversible Blades Are Precision Cut Tool Steel And Hardened, Keeping A Sharp Cutting Edge And Maximizing The Performance Of The Chipper.
3. Air Vents
Blowing Force Is Maximized With Air Intake Vents On The Side Of The Chipper. Air Enters Through The Vents And Powers The Chips Out The Chute Up To 20 Feet.
4. Twig Breaker Blower Paddles
Behind The Blades Are Blower Paddles With Integrated Twig Breakers Designed For Greater Output Force And Smaller Chips Exiting The Machine. This Provides More Consistent Chip Size And Allows You To Propel The Chips Further.
5. Adjustable Chute
Easily Control Where You Want The Chips With The Double Adjustable Exit Chute. The Chute Swivels 360 Degrees And The Top Deflector Adjusts The Distance.
6. Self-Feeding Hopper
The Self-Feed Hopper Is Designed To Angle The Brush Against The Rotor And Blades, Pulling The Branches Into The Chipper.
| Model | BX42 wood chipper | BX62/BX62R wood chipper | BX92R wood chipper |
| Drive System | Direct drive, PTO w/ shearbolt | Direct drive, PTO w/ shearbolt | Direct drive, PTO w/ shearbolt |
| HP requirements for max. cap. | 35-40 | 60-70 | 85-110 |
| HP Range | 18-50 | 30-100 | 65-150 |
| Chipper Capacity | 4" Dia. (max. 12" slab) | 6" Dia. (max. 12" slab) | 10" Dia. (up to 14" slab) |
| Chipper Housing Opening | 4"x10" | 6½" x 12" | 10½" x 14" |
| Rotor Size | 25" | 30" | 36" |
| Number of Rotor Knives | 4 | 4 | 4 |
| Knife Type | Hardened tool steel | Hardened tool steel | Hardened tool steel |
| Rotor Weight | 110 lbs. | 180 lbs. | 280 lbs. |
| Feeding System Feed | Self Feed | Self or Hydraulic Feed | Hydraulic Feed |
| Mounting System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
| Dimensions (Hopper Folded) | 40"L x42"W x 60"H | 50"L x 52"W x 74"H | 54"L x 52"W x 88"H |
| Hopper Opening | 20" x 20" | 25" x 25" | 25" x 25" (635X635mm) |
| Discharge Hood Rotation | 360° | 360° | 360° |
| Discharge Hood Height | 60" | 74" | 84" |
| Rated RPM | 540-1000 | 540-1000 | 540-1000 |
| Weight | 425 lbs.(195KG) | BX62S-770 lbs(346KG)./BX62R-1070lbs (485KG) | 1375 lbs. (620KG) |
