• Model NO.：DPG
• Pellet Mill Type：Screw Granulator
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 year
• CE,SGS：Yes
• English Manual：Yes
• Certificate of Origin：Yes
• Delivery Time：7-10days
• Payment Term：50% T,T as Deposit, The Balance Will Be Paid After
• Warranty Time：1 Year
• Installation and Adjustment：Yes
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：VIC
• Origin：China
• HS Code：84748020
• Production Capacity：300sets,Year

Basic Info.

Model NO. DPG Pellet Mill Type Screw Granulator Bulking Machine Type Twin Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Warranty 1 year CE,SGS Yes English Manual Yes Certificate of Origin Yes Delivery Time 7-10days Payment Term 50% T/T as Deposit, The Balance Will Be Paid After Warranty Time 1 Year Installation and Adjustment Yes Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China HS Code 84748020 Production Capacity 300sets/Year

Product Description

                      Floating Fish Feed Extruder, Feed Pellet Machine



1.Application:
The raw materials can be wheat, soybean, cake and other leftovers etc. The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.

2.Features:
(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.

(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.

(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.

(4)The main bearing is from Japanese and Sweden SKF bearing to ensure its safety. The main motor is Y-Series three phrase motor.

(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.

3.Photos:

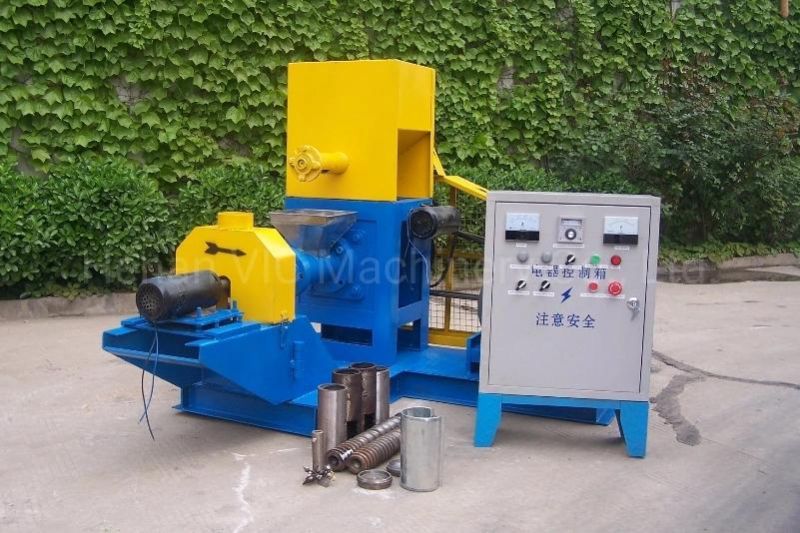

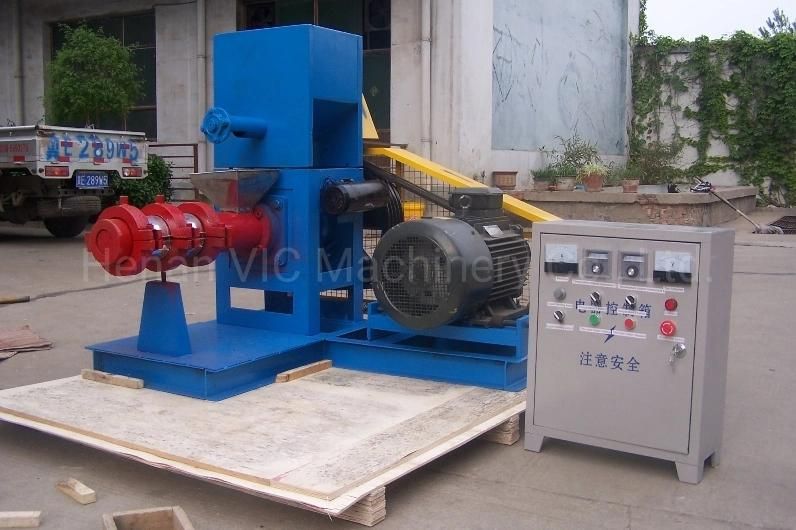

DPG50-C

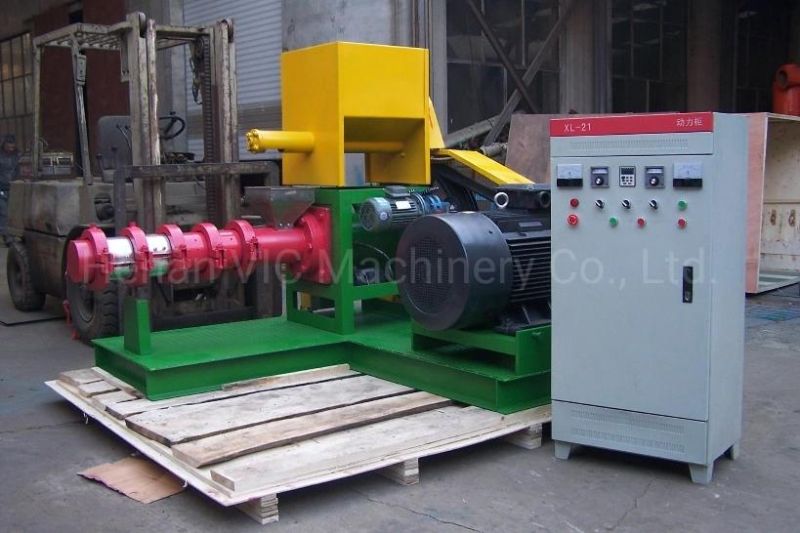

DPG80-B

DPG90-B

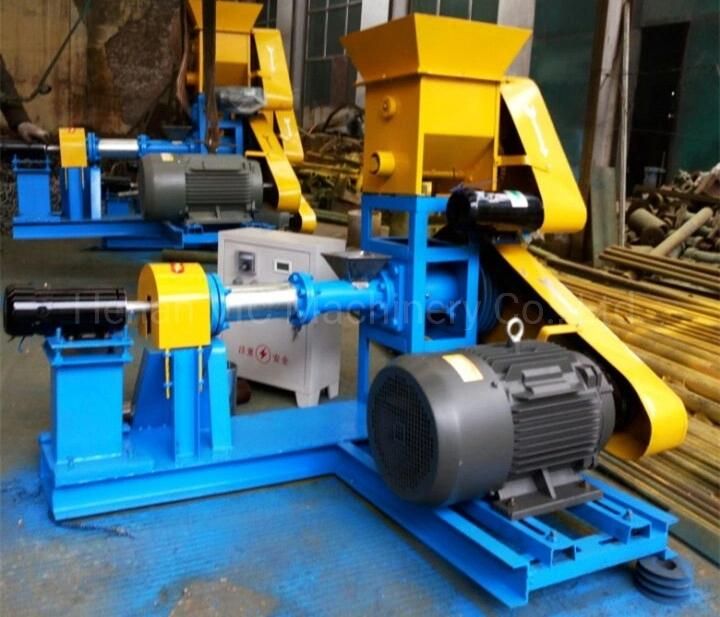

DPG120-B

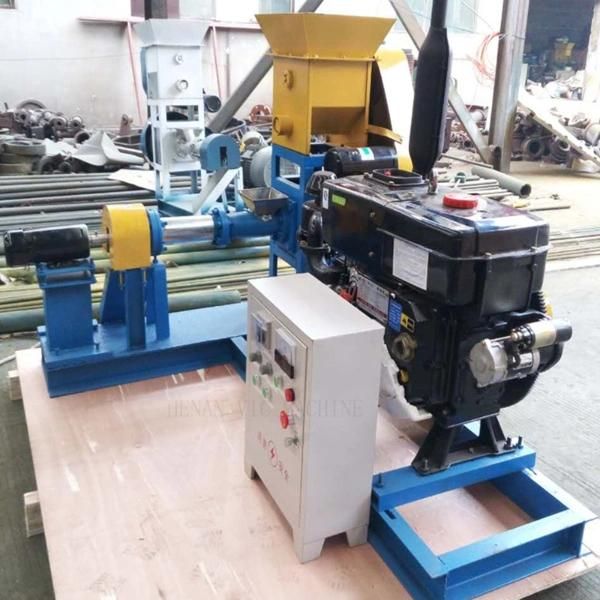

Diesel engine driven

Part


Partial finished product

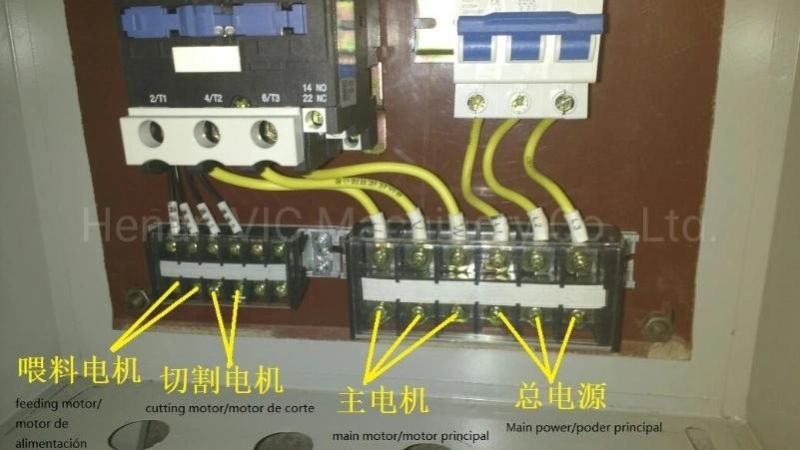

Electric control box internal picture

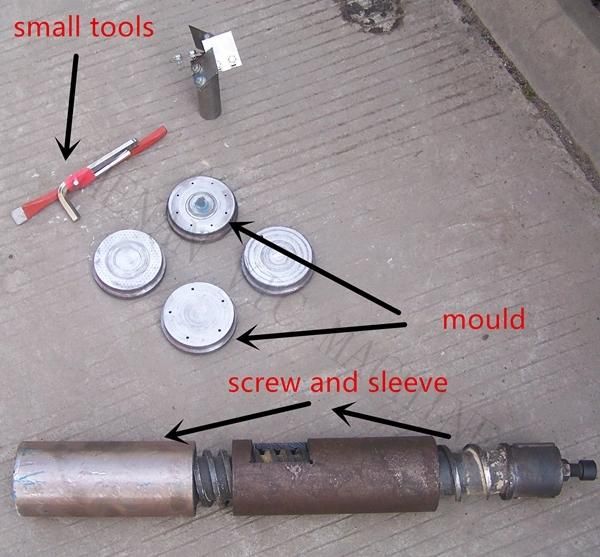

Parts

Package:



4.Main data:

Model	Capacity(t/h)	Main power(KW)	Feeder power(KW)	Screw diameter(mm)	Cutting power(KW)	Packing weight(kg)
DGP40-C	0.03-0.04	5.5	0.4	Φ40	0.4	280
DGP50-C	0.06-0.08	7.5-11	0.4	Φ50	0.4	360
DGP60-C	0.12-0.15	15	0.4	φ60	0.4	386
DGP70-B	0.18-0.2	18.5	0.4	φ70	0.4	640
DGP80-B	0.2-0.25	22	0.4	φ80	0.6	750
DGP90-B	0.32-0.35	37	0.6	φ90	0.8	1050
DGP120-B	0.5-0.6	55	1.1	φ120	2.2	1880
DGP135-B	0.7-0.8	75	1.1	φ133	2.2	2100
DGP160-B	1-1.2	90	1.5	φ155	2.2	2500
DGP200-B	1.8-2.0	132	1.5	φ195	3.0	3000

5.Maintenance
 Equipment operation after each time inside and outside clean, especially the expansion chamber may not retain any material, in order to avoid hard to clean up after cooling agglomeration;

1. Snack cavity spindle pulley should pay attention to often clean, shall not be dust is too much, or you will make the belt imbalance caused by swelling cavity vibration, check the firmness of the belt;
2. Extrusion chamber bearing box adopts high temperature resistant butter, regular replacement, using a machine can be switched on for the first time to use again after 1-2 hours with grease gun is filled.
3. Remove the screw head, shall not be knocking heave.
4. To keep the extrusion machine and its surroundings clean.
5. Monthly check belt firmness
