Zoomlion 190HP Wheeled Wheat Combine Harvester 4m Cutting Width
Zoomlion Heavy Industry Science & Technology Co., Ltd.- Type：Horizontal Cut Harvester
- Application：Rice, Corn, Wheat
- Power Source：Diesel
- Harvest method：Cutting
- Drive Type：Hydrostatic Drive
- Transmission：Mechanical Drive
Base Info
- Model NO.：4LZ-10BZH
- Certification：ISO9001:2008, CE
- Color：Green
- Condition：New
- Application Field：Agriculture
- Structure (Self-Propelled)：Stripping,Threshing Type
- Fuel Tank Capacity：300L
- Operating Width：3680mm
- Minimum Ground Clearance：300mm
- Transport Package：SKD
- Specification：40HQ
- Trademark：zoomlion
- Origin：Anhui, China
- HS Code：84335100
- Production Capacity：10000sets,Year
Description
Basic Info.
Model NO. 4LZ-10BZH Certification ISO9001:2008, CE Color Green Condition New Application Field Agriculture Structure (Self-Propelled) Stripping/Threshing Type Fuel Tank Capacity 300L Operating Width 3680mm Minimum Ground Clearance 300mm Transport Package SKD Specification 40HQ Trademark zoomlion Origin Anhui, China HS Code 84335100 Production Capacity 10000sets/YearProduct Description

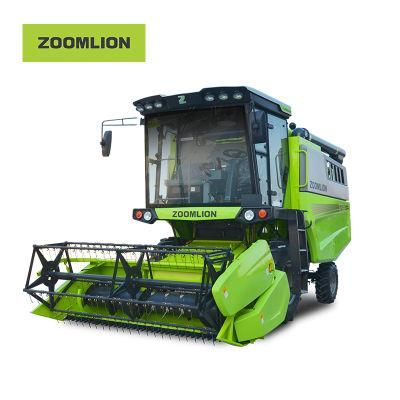

TE100 Wheeled Wheat Combine Harvester

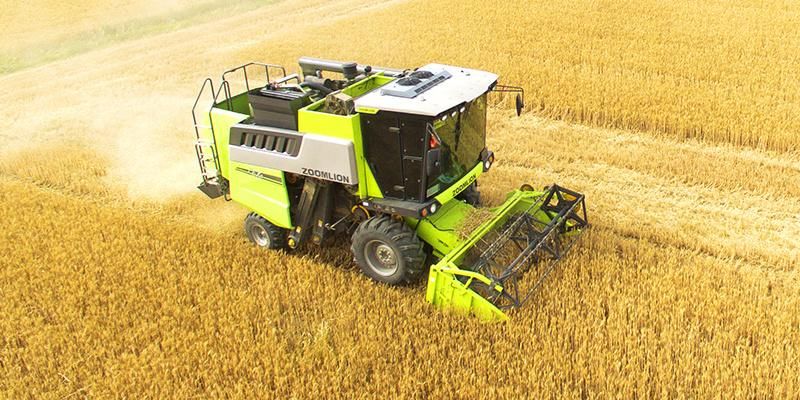

Strong power, high efficiency and high reliability
- Yuchai 190 horsepower high pressure common rail engine provides high torque reserves and strong power;
- Hydrostatic drive travel system is applied, which can operate flexibly and improve efficiency;
- Reinforced wobble box and grain unloading gearbox with longer service life;

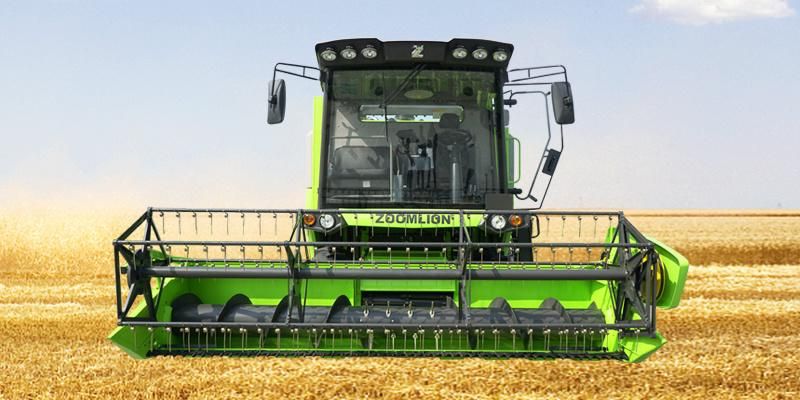

- The wheat header is increased to 4 m width.
Comfortable and safe driving

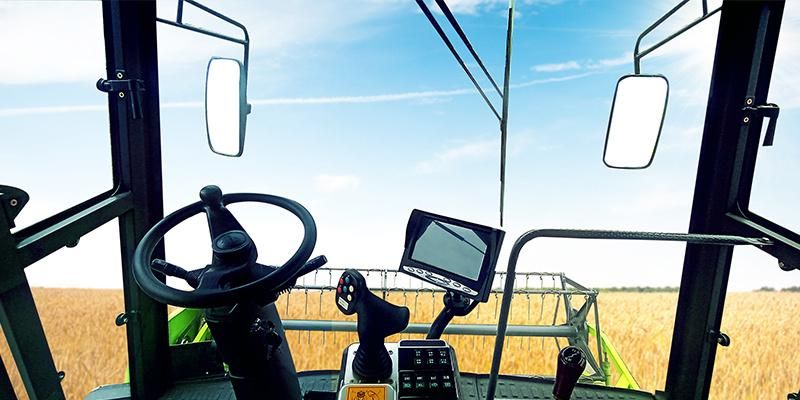

- Air-conditioned cab with ergonomics optimization design is featured with dust prevention, shock absorption, noise reduction and more comfortable driving;
- Multi-functional mono-lever control, which is convenient and comfortable;
- Hydraulic main clutch for more labor-saving operation.
Excellent performance and high operation efficiency
- Single longitudinal axial flow threshing unit has stronger threshing ability with more thorough separation;
- The cleaning chamber is brodened with stronger cleaning ability; the recess plate is changed to detachable type for convenient maintenance;

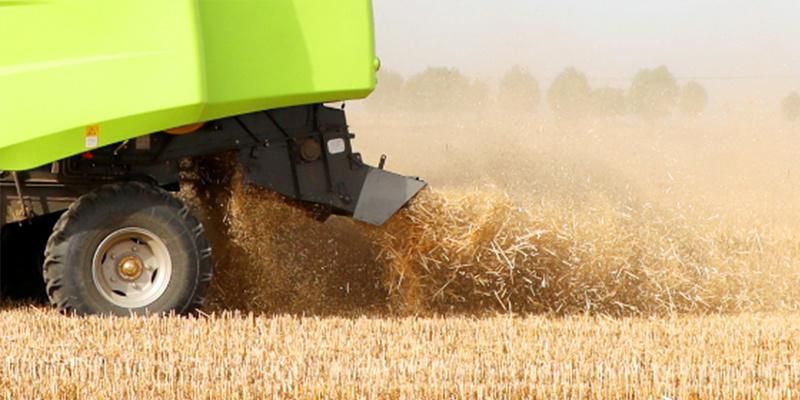

- Rear-mounted free-swinging knife slaw cutter for good chopping effect and even scattering;
- It can harvest corn, sorghum and other crops.
Technical parameters:
| Type | Unit | TE100( 4LZ-10BZH) |
| Overall dimension (L × W× H) | mm | 7600×3300×3420 |
| Minimum ground clearance | mm | 330 |
| Total weight | kg | 6900 |
| Engine emission | / | National Emission Standard III |
| Engine power | kw/hp | 140/190 |
| Fuel consumption rate | kg/hm² | ≤35 |
| Type of gearbox | / | Mechanical speed change + hydraulic stepless speed change |
| Cutting width | mm | 2750/2900/4000 |
| Feed quantity | kg/s | 10 |
| Type of thresher device | / | Single longitudinal axial flow |
| Diameter of drum × length | mm | φ620×3058 |
| Type of separation unit | / | Grid type |
| Cleaning mechanisms type | / | Wind screen type |
