• Model NO.：TQSF-80
• Certification：ISO9001, Ce, Soncap, SGS, CIQ
• Voltage：Customized
• Series：5-12.5 T,H (Count by Wheat)
• Model：Tqsf-60,80,100,125
• Transport Package：Wooden Case or Container
• Specification：7.5 T,H
• Trademark：SYNMEC
• Origin：China
• HS Code：8437109000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. TQSF-80 Certification ISO9001, Ce, Soncap, SGS, CIQ Voltage Customized Series 5-12.5 T/H (Count by Wheat) Model Tqsf-60/80/100/125 Transport Package Wooden Case or Container Specification 7.5 T/H Trademark SYNMEC Origin China HS Code 8437109000 Production Capacity 30 Sets/Month

Product Description

TQSF Long grain rice corn coffee bean destoner



Model: TQSF-80
Capacity: 7500kg/h
Function: remove stones, glass, metal , soilblock etc from grain

Introduction of TQSF-80 Grain Seed Beans Soya Destoner Stone Removing Machine
TQSF-80 stone separating equipment is applied for efficient separation of stones and pebbles, glass, and other high-density impurities from the grain or seed.

Principle of TQSF-80 Grain Seed Beans Soya Destoner Stone Removing Machine

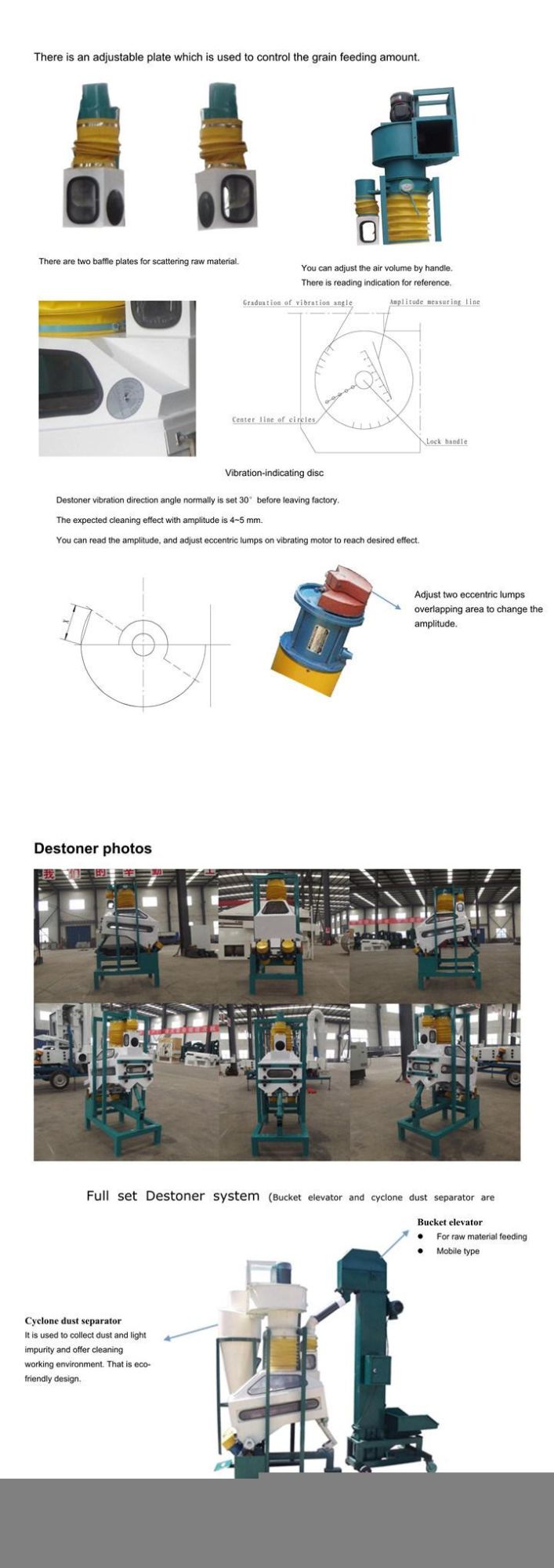

TQSF-80 stone separating equipment is the suction type destoner, and its work principle is based on the difference in specific weight of materials. The working table is covered with a woven wire mesh bed, through which air flows from below. Heavy impurity such as stone is not lifted by the air cushion and stay on the mesh bed. The vibratory motion of the table causes the heavy impurity transported to the beginning of the regulating plate at far end of the machine.

Features of TQSF-80 Grain Seed Beans Soya Destoner Stone Removing Machine
The TQSF-80 stone separating equipment is widely used for processing all kinds of grains or seeds, and it has the reliable performance and large capacity. This destoner with small size is very convenient to operate.

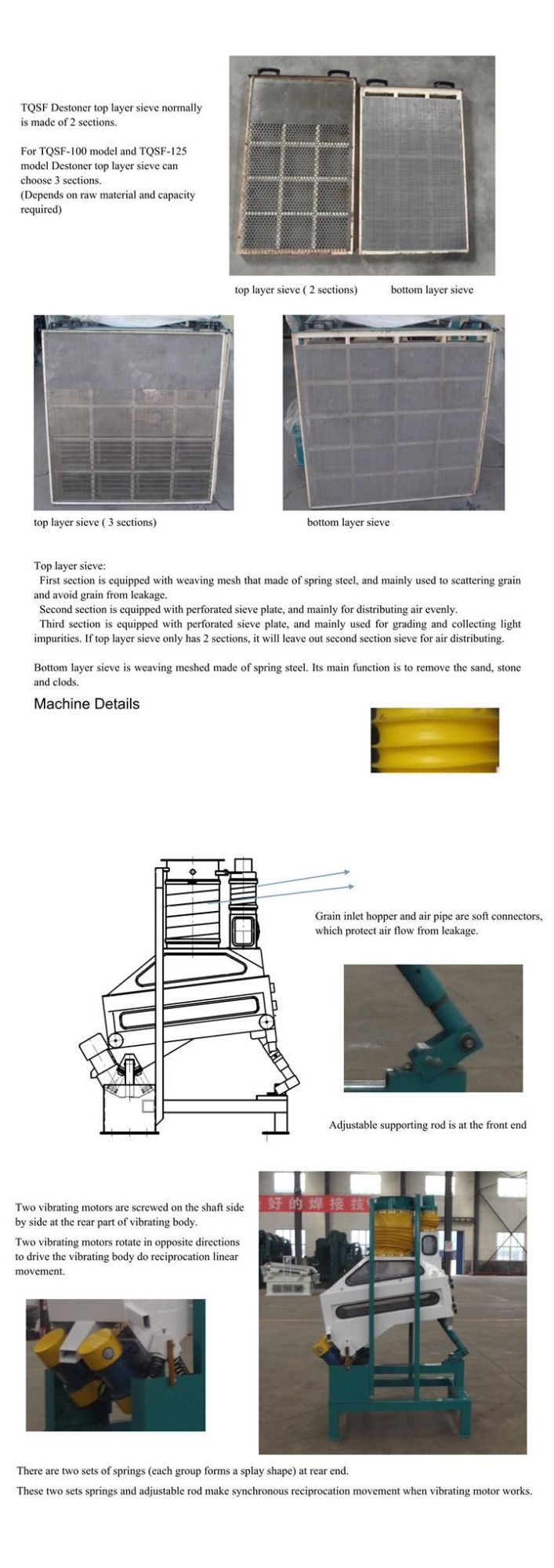

There are two sieve layers in inside the vibrating body. The first sieve layer is mainly used for removing large impurities. The second sieve layer is used to remove the stones.

Specifications of Grain Seed Beans Soya Destoner Stone Removing Machine

Model	TQSF-60 Destoner	TQSF-80 Destoner	TQSF-100 Destoner
Capacity	5000 kg	7500 kg	10000 kg
Power	3.5 KW	3.5 KW	3.5 KW
Dimension (L*W*H)	1450×876×1800 mm	1450×1046×1800 mm	1450×1216×1800 mm
Weight	320 kg	400 kg	480 kg
