• Model NO.：740
• Origin：Henan, China
• Production Capacity：50 Set,Sets Per Month

Basic Info.

Model NO. 740 Origin Henan, China Production Capacity 50 Set/Sets Per Month

Product Description

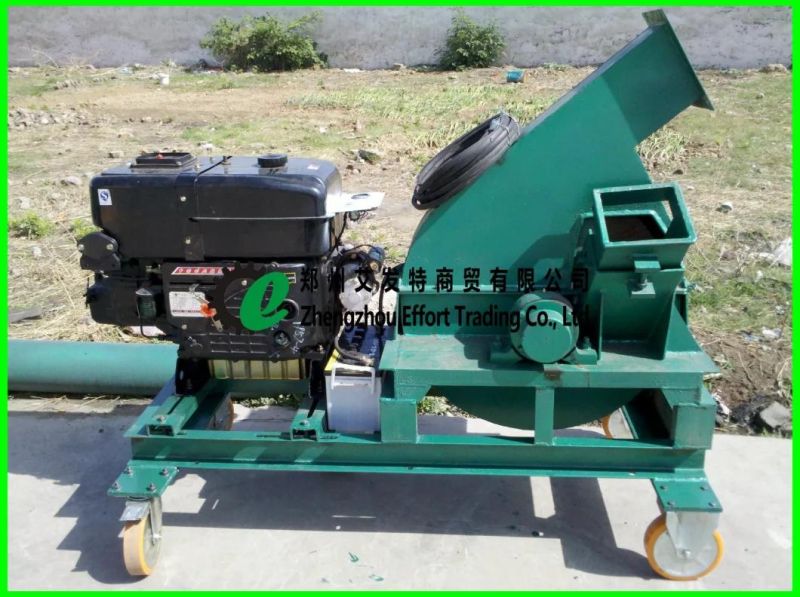

High quality diesel engine wood chips machine with low price

Introduction of Disk Timber Chipping Machine:
Effort wood chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.




1. Application:

It is the ideal chips making machine which suitable for paper-making production, fiberboard plant, shaving board factory, etc. Chips processing factory, raw material processing for mushroom, and also for park fertilizer.

2. Features:

Horizontal Chipper Machine Horizontal feed openings it is our popular and new-developed machine,it can processing log,wood slab,veneer,bamboo,wood branches,corn stalk,cotton stalk,reeds,or other non-wood fiber material into uniform chips.

Final chips size can adjustable according to your requirement.

Model	EFT-745	EFT-1150	EFT-1410
Cutter disk diameter(mm)	745	1150	1410
Blades quantity( pcs)	4	4	4
Motor power( Kw)	30	55	90
Rotating speed(r/m)	550	800	500
Feed opening diameter( mm)	200	320	450
Feeding conveyor length(m)	3	3	3
Output conveyor length (m)	3	3	3
Final chips size (mm)	2-5	2-5	2-5
Production capacity( T/H)	3-8	6-12	8-15
