• Model NO.：FB
• Computerized：Computerized
• Certification：CE
• Condition：New
• Material：PVC & Galvanize
• Auger：From South Africa
• Level Senser：From Israel
• Voltage：380V,220V,415V
• Frequency：50,60Hz
• Installation：Technician Guidance
• Service Life：Over 20 Years
• Transport Package：Export Standard Package
• Specification：according to chicken shed size
• Trademark：FUBOKAIYUAN
• Origin：China
• HS Code：84369100
• Production Capacity：6000sets,Year

Basic Info.

Model NO. FB Computerized Computerized Certification CE Condition New Material PVC & Galvanize Auger From South Africa Level Senser From Israel Voltage 380V/220V/415V Frequency 50/60Hz Installation Technician Guidance Service Life Over 20 Years Transport Package Export Standard Package Specification according to chicken shed size Trademark FUBOKAIYUAN Origin China HS Code 84369100 Production Capacity 6000sets/Year

Product Description

QINGZHOU FUBO KAIYUAN INDUSTRY CO.,LTD is a professional manufacturer of feeding & drinking system, ventilation, cooling, humidification and heating equipments. We have more than 10 years experience in this industry with more than 4 producing lines.


Feature & Advantage
1. Save time and labor, one shed just need one person.
2. Increase survival rate.
3. Easier to operate.
4. Easier to install and clean.
5. Longer service life.
6. Competitive price.
7. Complete controlled poultry equipment.

Introductions:
    This pan feeding system consist of feeding system, delivery system, feeding storage and control system.

1) Feeding system: This system is including hopper,conveying pipe (auger inside),pan feeder,feed sensor and driving motor, suspensiog lifting system,motor system.

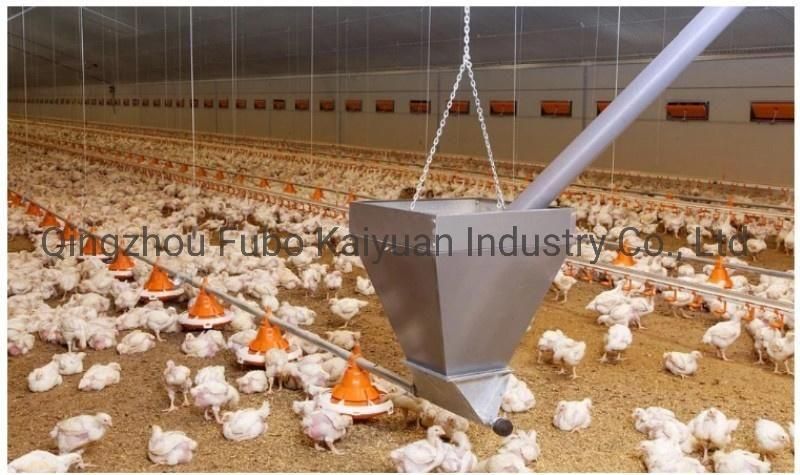

Hopper:
Bin volum: 115 L 200L, material: hot-dip galvanized sheet
material thickness: 1mm

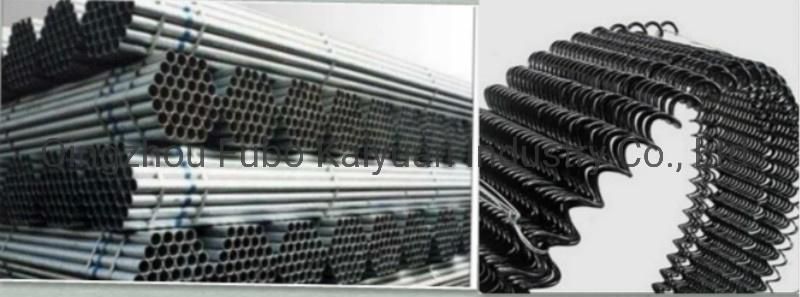

Conveying pipe & Auger:
Feeding pipe material: hot dip galvanize steel pipe (275g zinc coating)
Conveying pipe: 3m with 3 pans or 4 pans
Dia.: 45mm, 1.2mm thickness
Auger: imported from South Africa
Feeding ability: 450kg/h

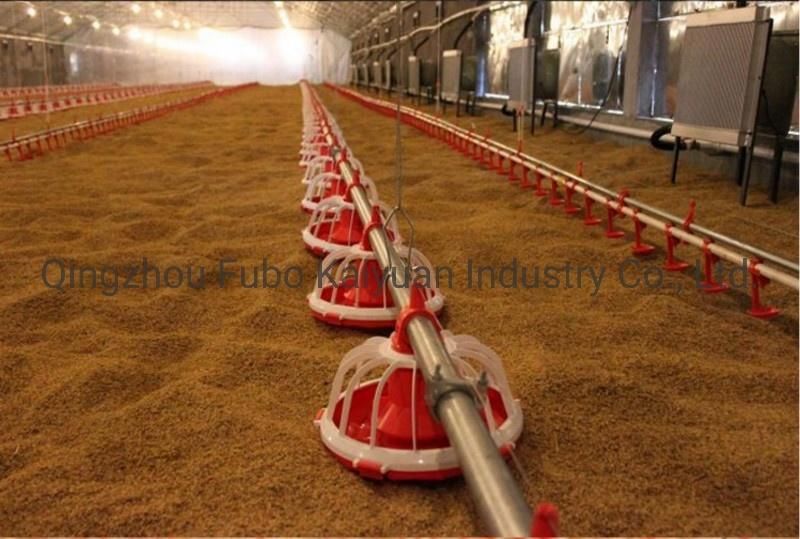

Feeder pan:
Plasson type feed pan/Big herdsman type feed pan/Valco type feed pan/UBT type feed pan All is New PP material.

Feeding line motor:
Power: 0.75kw voltage: 380v, frenquency:50hz, 3phases
Transmission speed: 450kg/h

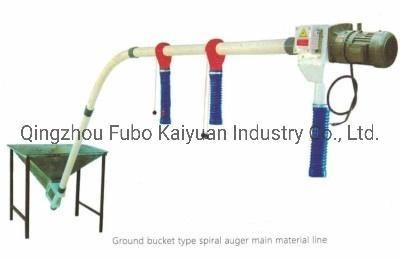

2) Delivery system:
The function of delivery system is to transmit the feed outside shed to the hopper of feeding system inside, control system indicates delivery system to work automatically.

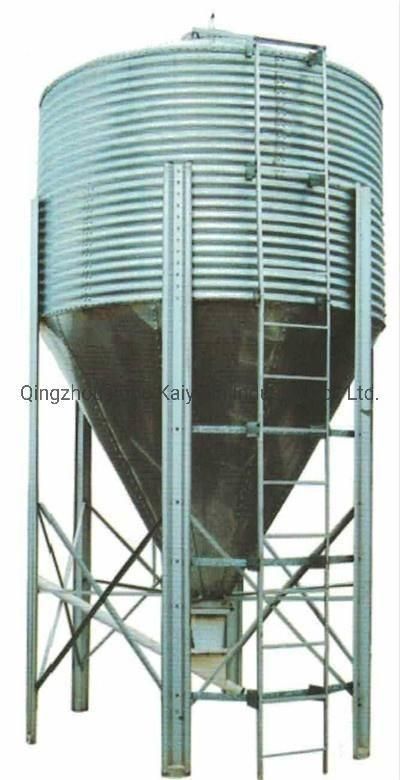

3) Feeding storage:
Feed of poultry raising farm is stored in the silo, so as to save large account of feed, and also to ensure the good condition of feed. Different specifications of silos are alternative to choose according to the daily consumption and the size of silo. Materials of silo consist of galvanized sheet and glass fiber reinforced plastic.


4) Control system:
Control box control the whole system. The control box works sensitively and steadily is extremely important, sensitivity and steady are the base of choosing electronic components. In order to avoid unnecessary waste.


Projects







FAQ

1. Are you factory or trade company?
--We are the professional manufacture of ventailation exhaust fans, fiber glass cone fan, cooling pad equipment, heating products, feeding & drinking system for poultry houses.

2. Can you do make our own brand?
--Yes, we can provide the OEM &ODM service.

3. Any guarantee for your products?
--Our company's culture is "Quality is our culture!" All of our products with
12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!

4. How about the delivery time?
--Usually for sample order 1-2 days, for mass order 7-15 days.
