• Model NO.：FDSP
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Output：20tph
• Finished Products：Pellets
• Batching Style：Automatic Batching
• Main Motor：Siemens(China)
• Main Power(Kw)：160
• Main Bearing：NSK
• Transport Package：Pallet
• Specification：CE, ISO
• Trademark：Liangyou
• Origin：Jiangsu China
• HS Code：8436100000
• Production Capacity：20t,H

Basic Info.

Model NO. FDSP Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Output 20tph Finished Products Pellets Batching Style Automatic Batching Main Motor Siemens(China) Main Power(Kw) 160 Main Bearing NSK Transport Package Pallet Specification CE, ISO Trademark Liangyou Origin Jiangsu China HS Code 8436100000 Production Capacity 20t/H

Product Description

Jiangsu LiangyouZhengda Co., Ltd., specializing in the production of feed machinery and engineering, can provide customers withcomplete sets of equipment solutions for livestock feed (pig, etc.), poultry feed (chicken, duck, goose,etc.), ruminant feed (cattle, sheep, etc.), common aquatic feed (four major Chinese carps, etc.), special aquatic feed (shrimp, crab, etc.), extruded aquatic feed (floating and sink fish feed, shrimp feed, etc.), premix feed (including all kinds of additives, etc.), and pet food(cat food, dog food, etc.). to meet the different needs of customers.

Best Price chicken Feed Pellets Plant 20tph output
Definition of poultry and livestock feed:
Poultry& livestock feed is generally refers to the food for farmed poultry and livestock , it is the conventional feed in the feed classification.



Introduction of process:

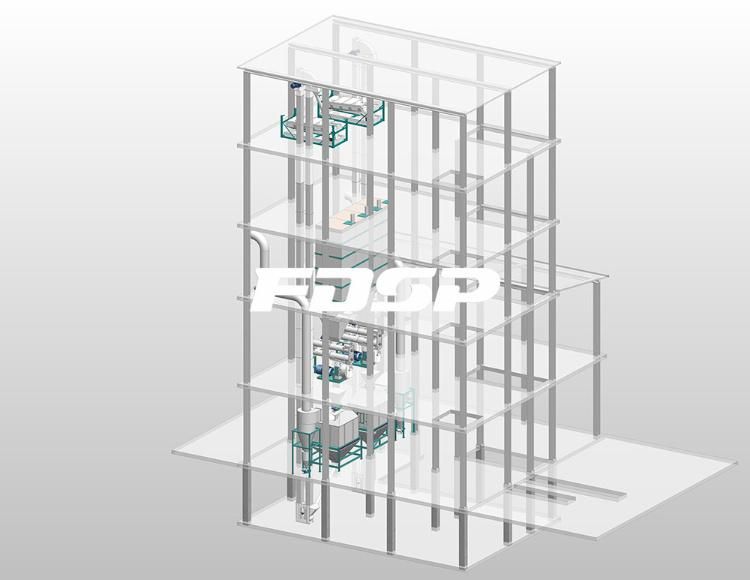

The features of poultry & livestock feed are moderate grinding fineness(screen hole diameter 2-4mm),moderate curing and conditioning requirements(pellet mill adopts two layers conditioners),finished products with big pellet diameter(pellet diameter is around 2.5-4mm). Double SZLH420 poultry & livestock feed process is with 20tph capacity, it adopts two grinding lines, one batching & mixing line, two pelleting lines and two packing lines. The total equipment power is around 725kw. The construction area of the production area is about 16.5×16.5×28m, it equipped with 2T boiler. The whole line is compact in design, reasonable in structure, meeting the requirement of environmental protection, and can be customized designed according to the requirements of customers.

Process diagram:


Process introduction:
Raw materials receiving and cleaning section:In this section, pellet feeding cleaning and powder feeding cleaning are separated independently and separate dust removal. Dust removal effect is good.
Cleaning equipment:granules sifter SCY80,capacity 20-30T/H;Powder cleaner SQLZ60X50X100, capacity 10-15T/H.






Grinding section: This section adopts two hammer mills, and each set allocated with two pre-grinding bins, which can grind different materials at the same time and improve the efficiency. Before entering the bins, the impurities are removed by magnetic separation device to ensure the safe operation of the hammer mill.
Grinding equipment(2sets): Hammer mill SFSP668×800, 110kw, designed to produce 10-15t /h

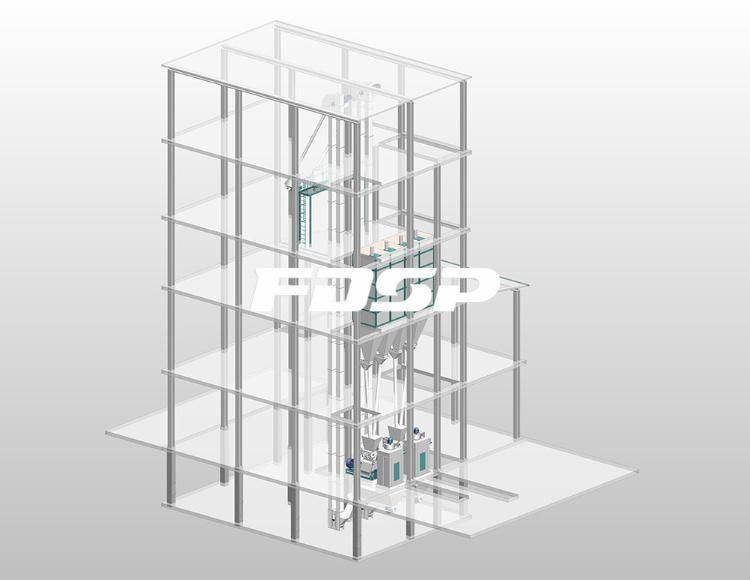

Batching and mixing section: This section adopts 16batching bins.Two sets of batching system work at the same time. It is developed by our company to realize accurate fast and slow feeding, fast batching and high precision.
Weighing equipment: Dosing scale PCS20/PCS10, dosing precision: dynamic ≤3‰, static ≤1‰.
Mixing equipment: mixer SHSJ4, (30KW, 2000kg/ batch), designed to produce 20-30t /h. Mixture uniformity CV ≤5%.

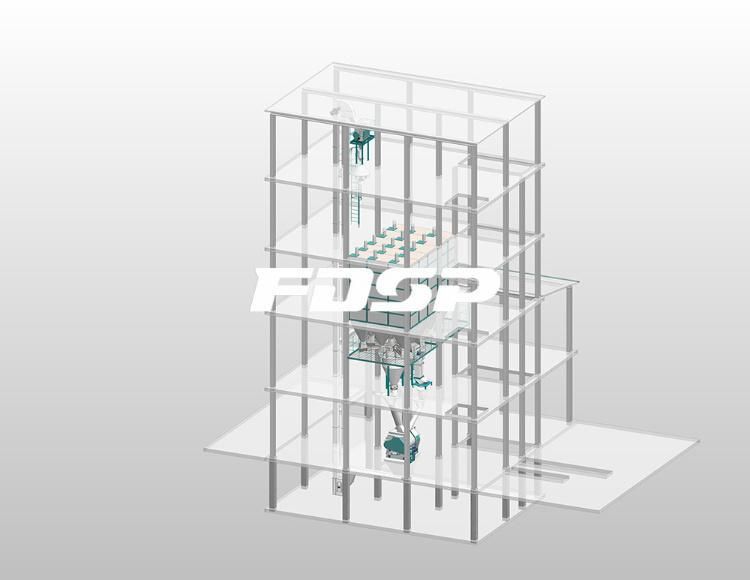

Pelletizing section: This section adopts two sets of double-layer conditioner pelletizer, and each set with two pre-pelleting bins, which is convenient to switch between varieties. After pelleting, they are respectively entered into the cooler and the elevator into the rotary screener in order to be screened, and the finished products are put into the packing bins. The sieved out powder material back to granulation, sieved out large particle material back to crumbler.
Pelleting equipment(2sets) : SZLH420,110KW, designed to produce 10-12t/h/set.
Cooling equipment(2sets) : SKLN6, designed to produce 10-15t/h/set.

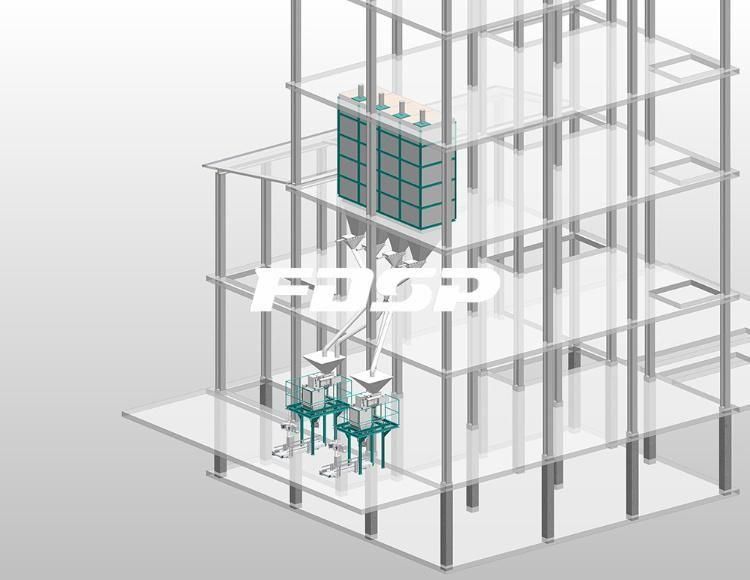

Packing section: There are 4 finished product bins in this section, 3 bins of them are specially used to store pellet feed; There is also one bin for powder material and particle material. The powder material finished products bins are designed special anti - grading device. The pellet or powder is automatically weighed and packed by the packing scale.
Packing equipment: Belt scale(it can be used as powder feed or granule feed), packing range: 20-50kg/ bag, 6-8 bags/minute.

Auxiliary section: Dust removal system to improve workers' working environment; Grease adding system, common mixer place added to improve feed palatability.

According to the needs of different customers, the scheme can be optimized:
1. The scheme adopts the single-point dust removal mode, that is, each rotary distributor (powder material) and pellet cleaner is equipped with a pulse dust filter, which has a good dust removal effect. Single point of dust removal is our company's humanized design, which can provide a better working environment, but the cost increases. Customers can consider whether to use this configuration according to the actual needs;
2. The quantity of bins can also be adjusted according to the formula of customers, the characteristics of raw materials and other factors, so as to achieve the highest utilization rate and effectively control the production cost;
3.Crumbling after the cooler can be selected. If the crumbling capacity is not particularly large, you can consider one set and reserve one set;
4. The finished products can be equipped with bulk storage as required, and the packaging of finished products can also be equipped with mechanical palletizing.
