• Model NO.：SZLH250
• Pellet Mill Type：Ring Die Pelleter
• Condition：New
• Applicable Materials Shape：Powder
• Warranty：1 Year
• Weight：950 Kg
• Power(W)：15,22kw
• Dimension(L*W*H)：1668*800*1463mm
• Delivery Detail：30-45days
• Pellet Size：2-18mm
• Bearing Brand：Imported
• Motor Brand：Siemens
• Output：0.5-1.5tph
• Transport Package：Iron Pallet or Depending on Customers′ Request
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8436100000
• Production Capacity：20 Set,Sets Per Month

Basic Info.

Model NO. SZLH250 Pellet Mill Type Ring Die Pelleter Condition New Applicable Materials Shape Powder Warranty 1 Year Weight 950 Kg Power(W) 15/22kw Dimension(L*W*H) 1668*800*1463mm Delivery Detail 30-45days Pellet Size 2-18mm Bearing Brand Imported Motor Brand Siemens Output 0.5-1.5tph Transport Package Iron Pallet or Depending on Customers′ Request Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8436100000 Production Capacity 20 Set/Sets Per Month

Product Description

We supply poultry feed pellet mill, livestock feed pellet mill, ruminant feed pellet machine, pig granulate feed machine, chicken fodder pellet mill, cow/ cattle feed granulator, horse fodder machine, feedstuff pellet mill, pellets making machine, bird feed pelletizer and so on.

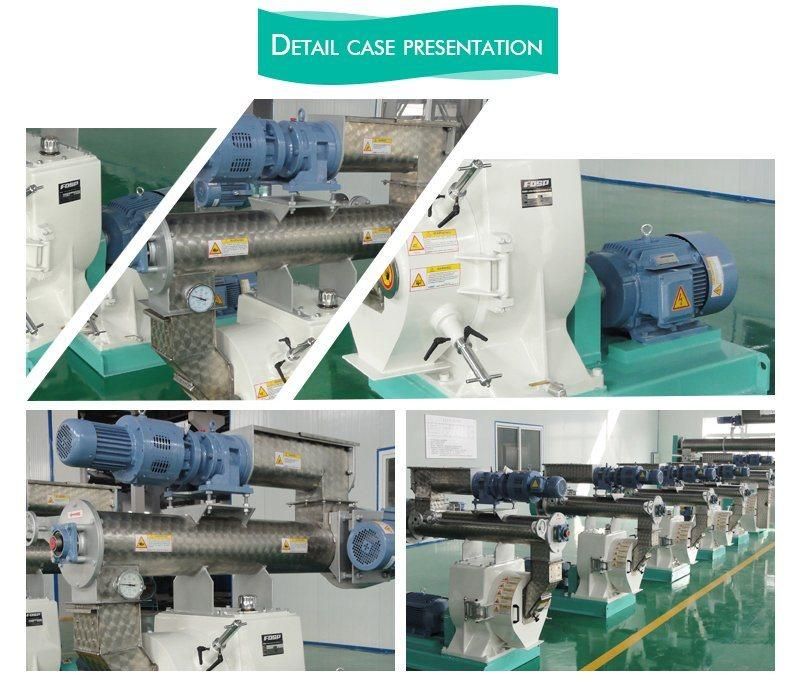

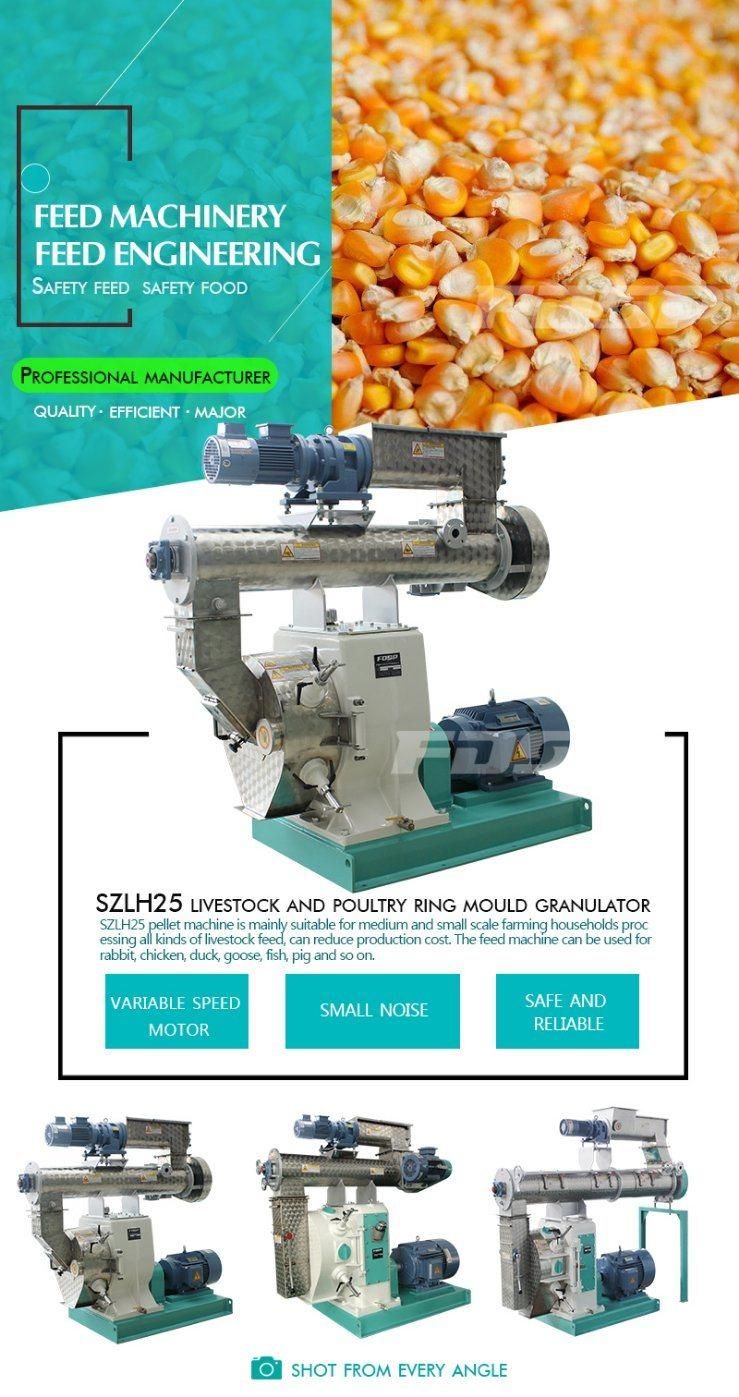

SZLH25 Feed Pellet Machine




Feature:
(1) This feed production machine is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities.
(2) Stainless steel conditioner makes even retention and sufficient cooking effect.
(3) Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to pellet mill driven by belts.
(4) High quality bearings(imported), oil seal( from Germany) is adopted to makes operation smoothly.
(5) Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, toensure smooth driving, low noise and long service life.
(6) S shape coupling is used with advantage of high capability of retrieve displacement.
(7) The die is quickly assembled and disassembled; die hoist is optional.
(8) Applicable for all kinds of high grade animal/livestock/aqua feed. Double or three layers of conditioner is optional.
(9) Speed-adjust feeding, adopted by this machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.
(10) CE approved

Main Power(kw)	15	Capacity(t/h)	0.5-1.5
Power of Feeder(kw)	0.37	Power of Conditioner(kw)	1.5
ID of Die(mm)	ø 250	Pellet Size(mm)	2-18

FDSP has about 25 years of experience in the comprehensive development and utilizationin agriculture field. It covers an area of 15000 square meters, covering
total area of 15,000 square meters with over 200 staffs, located in liyang city, jiangsu province, China, a beautiful and ancient city.
