• Model NO.：3WPQ-5000
• Material：Metal and Plastic
• Type：Tractor Drawn Boom Sprayer
• Nozzle Model：No.3
• Spray Angle：110°
• Tank Capacity：5000L
• Pump：Diaphragm Pump
• Pump Pressure：20-45 Kgf , Cm²
• Pump Flow：360L , Min
• Transport Package：Standard Package for Export
• Specification：4700X3500X2600mm
• Trademark：LIXING
• Origin：Heilongjiang
• HS Code：8424820000
• Production Capacity：500

Basic Info.

Model NO. 3WPQ-5000 Material Metal and Plastic Type Tractor Drawn Boom Sprayer Nozzle Model No.3 Spray Angle 110° Tank Capacity 5000L Pump Diaphragm Pump Pump Pressure 20-45 Kgf / Cm² Pump Flow 360L / Min Transport Package Standard Package for Export Specification 4700X3500X2600mm Trademark LIXING Origin Heilongjiang HS Code 8424820000 Production Capacity 500

Product Description

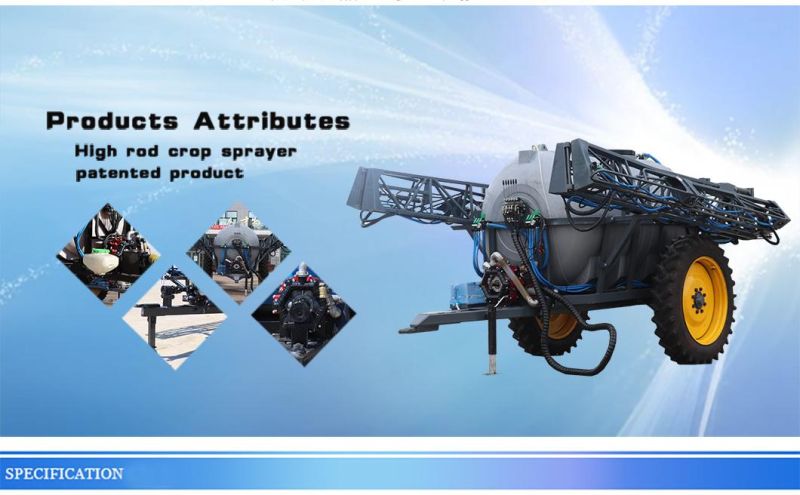

3WPQ-5000 Type Tractor Boom Sprayer

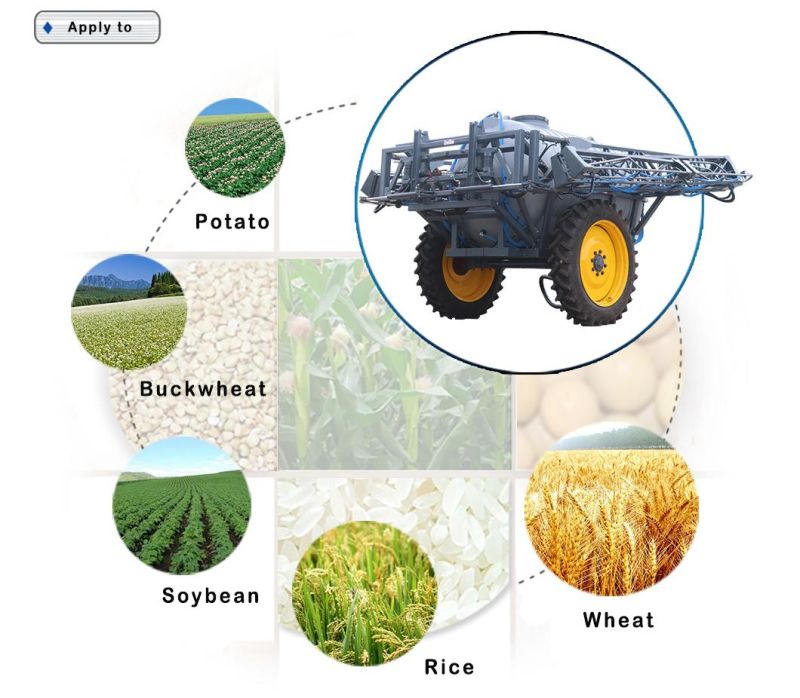

3WPQ-5000 series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.
Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1000L-5000L, the spraying width could be 21m-25m.
Advantages:

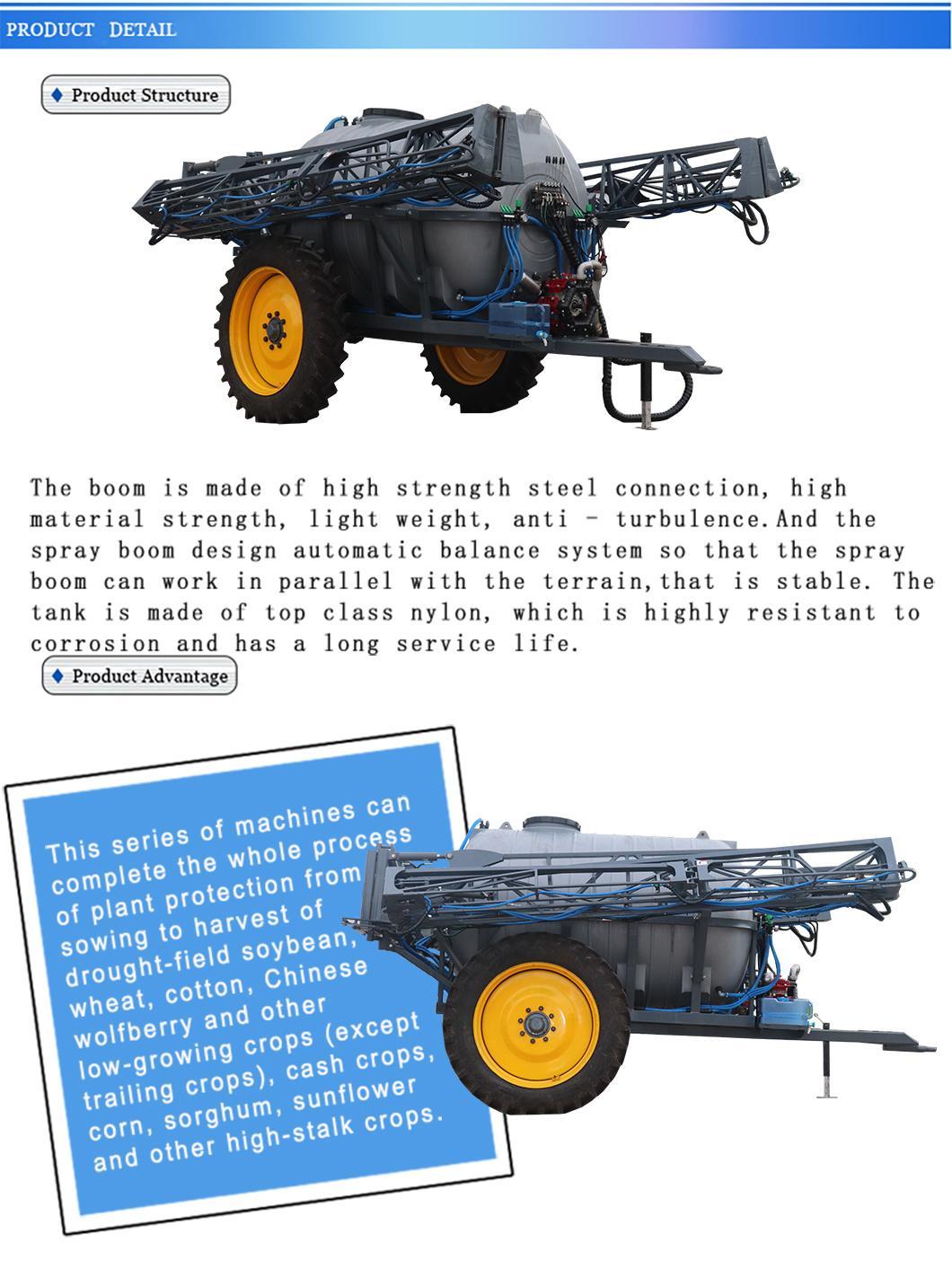

•This kind of boom sprayer is a tractor mounted sprayer.
•Wide working scope,spraying for bean,cotton,corn etc.
•Wide spraying with to be 25m .and the working angle of this tractor sprayer could be adjusted.
•The capacity of mounted boom sprayer could be adjusted to meet different need from the user.

Model	3WPQ-2000 type tractor sprayer	3WPQ-3000 type tractor sprayer	3WPQ-5000 type tractor sprayer
Power	≥50HP	≥70HP	≥100HP
Mixing Way	Circulating water mixing	Circulating water mixing	Circulating water mixing
Folding Way	Hydraulic folding and lifting	Hydraulic folding and lifting	Hydraulic folding and lifting
Ground Clearance	0.5m	0.5m	0.5m
Wheel Track	1.3-1.4m (adjustable)	1.3-1.4m (adjustable)	2-2.6m (adjustable)
3 Filtration System	Tank inlet, pump inlet, nozzle	Tank inlet, pump inlet, nozzle	Tank inlet, pump inlet, nozzle
System Work Pressure	0.3-0.5Mpa	0.3-0.5Mpa	0.3-0.5Mpa
Walking Speed	4-20km / h	4-20km / h	4-20km / h
Tire Specifications	7.5-20	9.5-20	11.2-38
Overall Dimension	3900 x 3100 x 2500 mm	3900 x 3100 x 2500 mm	4700 x 3500 x 2600 mm
Weight	1350kg	1450kg	2100kg
Pump Type	Diaphragm pump	Diaphragm pump	Diaphragm pump
Pump Pressure	2.5Mpa	2.5Mpa	2.5Mpa
Pump Model	MB6360	MB6360	MB6360
Pump Flow	360L / min	360L / min	360L / min
Pump Speed	600r / min	600r / min	600r / min
Tank Capacity	2000L	3000L	5000L
Boom	21m	21m	25m
Nozzle Model	No.3	No.3	No.3
Spray Angle	110 °	110 °	110 °
Nozzle Flow	1.2L / min	1.2L / min	1.2L / min
Water Tank	15L	15L	15L

Q:Are you a factory or trading company?

A:We are a factory.

Q:How does your factory do regarding quality control?

A:Quality is priority. we  always say great importance to quality controlling from the very  beginning to the very end.

Q:Do you have a product accessory?

A:Yes, we have the accessories of the product.

Q:Can you customize the product?

A:We can customize the product.

Q:What's your payment terms?

A:Payment terms is T/T or L/C,We accept all reasonable payment.

Q:How about delivery time of your machine?

A:The delivery time is in 60 working days. It depending your quantity.
