• Model NO.：4LZ-1.6Z
• Portable Harvester Type：Self Propelling
• Certification：ISO9001:2008, CE, CNAS
• Color：Red and Yellow
• Condition：New
• Application Field：Agriculture
• Transport Package：Naked Packing
• Trademark：K-BOS
• Origin：Deyang City, Sichuan Province
• HS Code：84335100
• Production Capacity：3000

FEATURES
Model 4LZ-1.6Z is the first multi-functional small longitudinal axial flow combine harvester in China.

Equipments:Four Cylinder diesel engine,Power range from 45HP to 60HP. 50 Gearbox, 28CC HST, 400mm Width Rubber, With Reverse Device for Conveying transmission,  Low consumption,Light weight,easy -maintenance

Multi-functional : Rice, Wheat, Soybean, Maize,Rapeseeds, and other granular crops.

High Efficiency:Strong Power,Flexible Walking,High capacity.  Theoretical harvest speed:0.4-0.5hectare/hour, as fast as the double thresher type with 2Meter harvester.  6-7 times fast more than the Hand-held mini harvester

Adaptability: Specially design for Hilly area,Small field,  the light weight 1850kg offer our machine a low ground pressure and lower fuel consuption of 16 Litre per hectare.

This machine is easy for operation and maintence, it is a safety and energy-saving machine.


 SPECIFICATION Overall DimensionLength×Width×Heights ( mm ):   4200×2035×2080Weight (kg)1850Feeding Capacity( kg/s )2.2Harvesting Capacity(hm²/h): 0.2-0.4EngineEngine Model:   N490, 490BT-10
 Rated Power ( kw/hp ):   34KW/45HP,  44KW/60HP

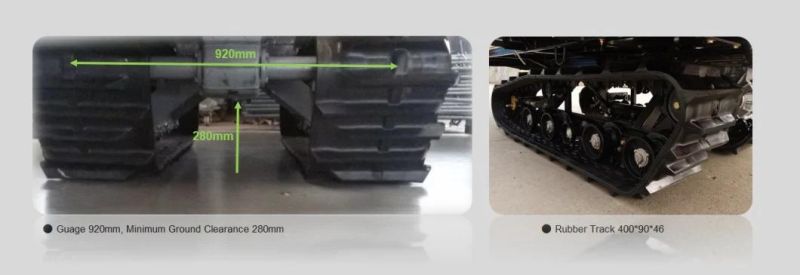

 Engine Type:   Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel.Driving SystemCrawlers(mm):  400*90*43
 Minimum Ground Clearance (mm):   280
 Type of Gearbox:   Mechanism + HST(3F, 3R)Cutting headerPickup Reel:   Type:Tooth ( off-centre );  Diameter( mm ): 900;  Nos: 5
 Cutting Bar Length ( mm ):   1530
 Type of Cutting Bar Auger:   Screw Conveying.
 Rape Seed Extension: OptionalThreshing & SeparatingThreshing System:   Spiked Tooth Axial Flow& Cleaning SystemThreshing Cylinder Size Diameter × Length ( mm ):   550*1505

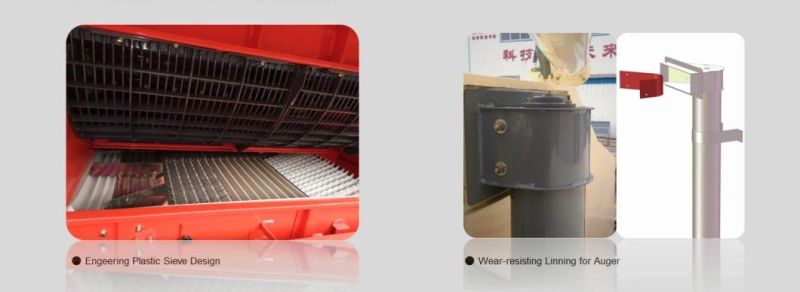

 Vibrating Sieve:  Adjustable sieve or Round hole sieve.
 Blower Fan:   Type: Swirl;  Diameter( mm ): 355;  Nos: 1Grain StoringOption 1: Big Grain Tank with 90 Unloading Auger, Capacity ( L):   950  Option 2: Big Grain Tank with 360 Unloading Pipe, Capacity(L):950
 Option 3: Small Grain Tank:    Manual Operation.

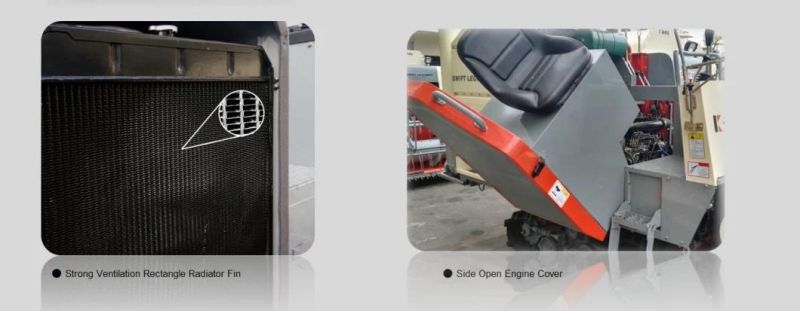

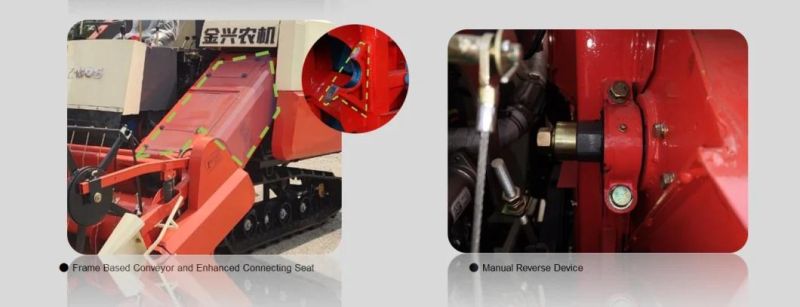

 PRODUCT DETAILS


 EXIHIBITION

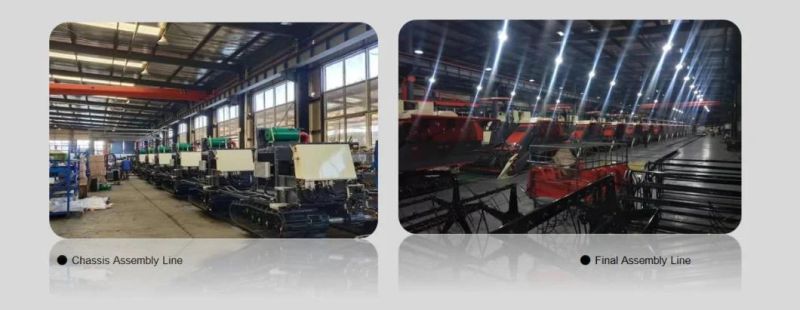

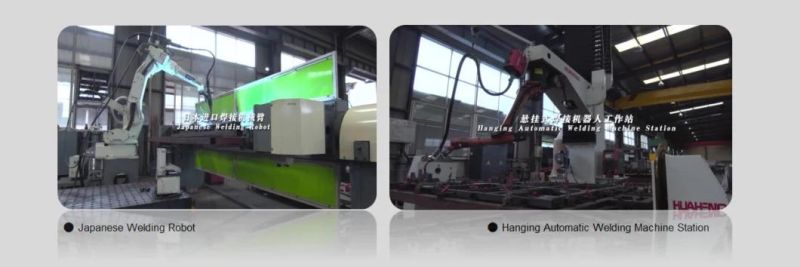

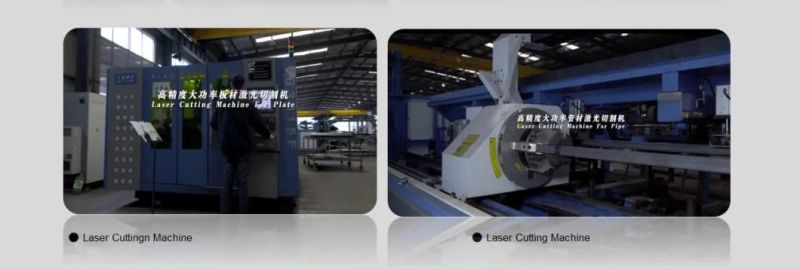

 PRODUCTION ENVIROMENT
