All Terrian Rubber Track Chassis Vehicles 2250mm*1150mm*1330mm

Shanghai Puyi Industrial Co., Ltd.
  • Type:Steel Pick
  • Usage:Agricultural Products Processing, Farmland Infrastructure, Tillage, Harvester, Planting and Fertilization, Grain Threshing, Cleaning and Drying
  • Material:Rubber and Steel
  • Weight:570kg
  • Length:2250mm
  • Width:1150mm

Base Info

  • Model NO.:DP-KN-250
  • Height:1330mm
  • Load Bearing Weight:1000kg
  • Length of Chassis:1700mm
  • Width of Chassis:1000mm
  • Height of Chassis:450mm
  • Ground Length:1200mm
  • Warranty:12 Months Under Normal Ues
  • Transport Package:Bare Packing or Wooden Pallet
  • Specification:2250mm*1150mm*1330mm
  • Trademark:No Marks or As Buyer′s Requests
  • Origin:Shanghai, China
  • HS Code:8708996000
  • Production Capacity:1000 Sets,Month

Description

Basic Info.

Model NO. DP-KN-250 Height 1330mm Load Bearing Weight 1000kg Length of Chassis 1700mm Width of Chassis 1000mm Height of Chassis 450mm Ground Length 1200mm Warranty 12 Months Under Normal Ues Transport Package Bare Packing or Wooden Pallet Specification 2250mm*1150mm*1330mm Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8708996000 Production Capacity 1000 Sets/Month

Product Description

All Terrian Rubber Track chassis Vehicles 2250mm*1150mm*1330mm

 Length*Width*Height of transport 2250mm*1150mm*1330mm
 The model of Diesel engine HP188
 The power of the Diesel engine 7.6/3600
(11horsepower
 The minimum height from the ground 220mm
 The usage Multi terrain transport
 Loading 1T
 Weight 570kg

All Terrian Rubber Track Chassis Vehicles 2250mm*1150mm*1330mm

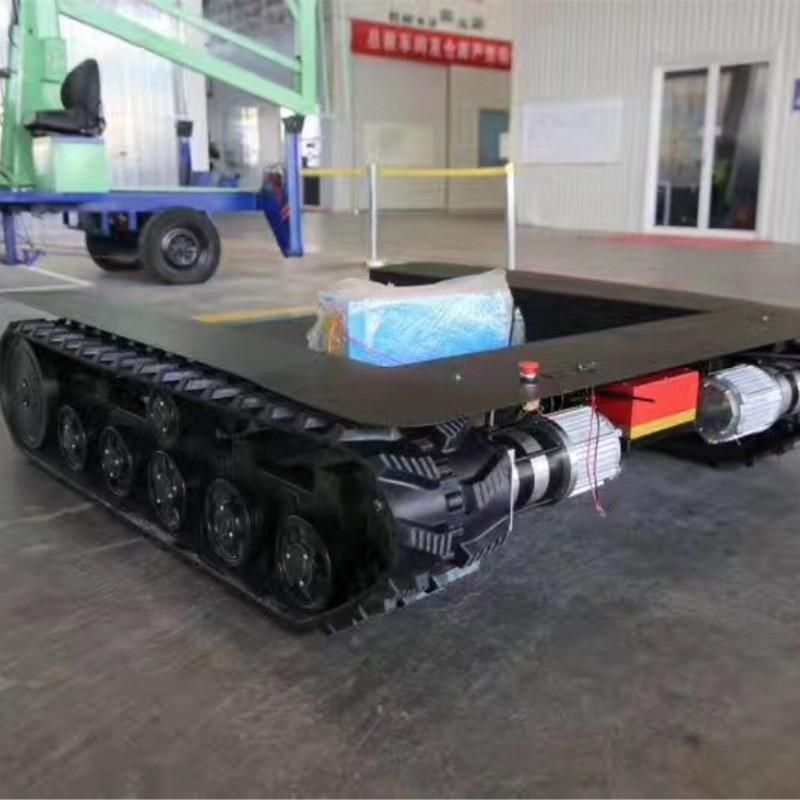

Item: Rubber track undercarriage

Main Parts:Rubber track;construction frame;tensioning screw,drive wheel/sprocket; support wheels,and idler,etc.
Material:Steel,rubber,UHMW-PE(wheels)

Description of the rubber track undercarriage:

1. Wide used on snow blower,paver,dumper,mini excavator,small harvester,anti-fire robot,raw mower,and other small or mid size machine design.
2. Easy for vehicles to run on hill land, mud road, sand ground...
3.Max load only 300kgs,if your idea of design is over 300kgs,please contact us for choosing other models.
4.Application: All terrain/season;
5.Warranty: 12 months

Their choice of operating environment and notice are as follows:

(1) rubber track,temperature is generally between -25 ~ + 55'C.
(2) chemical, oil, sea salt will accelerate the aging track, after use in such an environment, need to clean track.
(3) sharp edge (such as steel, stone, etc.) of the road will cause damage to the rubber track.
(4) the curb of the road, rutted or uneven pavement can cause side edge of the ground track pattern to be cracked, but the rubber track can be used continuously if the inside steel cord has no injuries.
(5)gravel, gravel road will result in abrasion earlier where the idlers connect with the rubber track, and formation of small cracks. Serious water ingress, causing iron core loss, wire breakage.
(6)30 degree slope and 15 degree side slope,for climbing

All Terrian Rubber Track Chassis Vehicles 2250mm*1150mm*1330mm

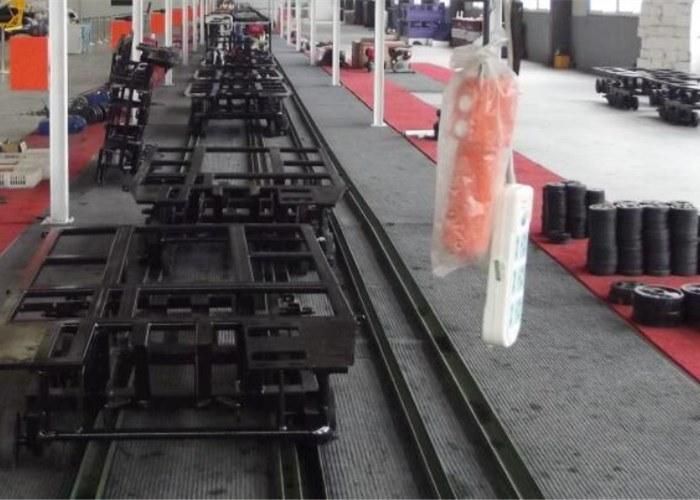

Quality Control:

1.Ex works Inspection

2.Products Audits/Examination(Strict inspection according to customer's request)

3.Production Procedure Audit/Examination(Entire Procedure Control)

4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)

Warranty

one year normal use.
