Shutter (Drop Hammer Type) Cone Fan Wall Mounted Shutter Box Ventilation Exhaust Fan Poultry Livestock Husbandry Equipment Good Quality
Shandong Yuyun Sanhe Machinery Co., Ltd.- After-sales Service：2 Years
- Type：Poultry House, Greenhouse, Industrial Factory
- Usage：Ventilation and Cooling Equipment
- Application：Chicken Layer Broiler Pig Cow
- Power Source：Electric
- Heating and Ventilation Equipment Type：Air Duct
Base Info
- Model NO.：DJF(c)
- Certification：ISO9001:2008, CE
- Condition：New
- Warranty：2 Years
- Frame Material：Galvanized Sheet
- Drive：Belt Drive
- Belt：Japanese Mitsubishi
- Motor：Quality Chinese Motor
- Bearing：Imported Bearing
- Mounted：Wall Mounted
- Belt Pulley：High Strength Aluminum-Magnesium Alloy
- Power Supply：Electric
- Power：0.37-1.1kw
- Apply：Poultry House, Greenhouse, Industrial Factory
- Name：Djf(C) Shutter(Drop Hammer Type) Cone Fan
- Fuction：Ventilation Air Cooling
- Form：Wall Mounted Shutter Box Ventilation Exhaust Fan
- Transport Package：Standard Paper Carton
- Specification：DFJ(c)
- Trademark：Yuyun Sanhe
- Origin：Shandong China
- HS Code：8414809090
- Production Capacity：300PCS,Day
Description
50 / 60750*750*1080mm DJF(c)-900 Belt 750mm 630rpm 1400rpm 22000 ≤65 370 900*900*1100mm DJF(c)-1000 Belt 910mm 610mm 1400rpm 25000 ≤65 550 1000*1000*1180mm DJF(c)-1100 Belt 1000mm 600rpm 1400rpm 32500 ≤64 750 1100*1100*1280mm DJF(c)-1220 Belt 1100mm 460rpm 1400rpm 38000 ≤64 750 1220*1220*1280mm DJF(c)-1380 Belt 1250mm 439rpm 1400rpm 44000 ≤64 1100 1380*1380*1480mm
Product Description:
Cone and Shutter
1.Reasonable Cone design for bigger exhaust power, Large airflow and steady air output
2.Aluminum alloy shutters for light weight and attractiveness.
Hot Galvanized sheet with zinc thickness of 275g/sqm, avoiding rust effectively.
Rubber Sealing
Rubber sealing device is equipped for the double door close to avoid the air backflow. Greatly improved the running efficiency compared with the same power fan
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
Brand: Mitsuboshi belt (Japanese)
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
Product Description:
1.Reasonable Cone design for bigger exhaust power, Large airflow and steady air output
2.Aluminum alloy shutters for light weight and attractiveness.
Frame
Hot Galvanized sheet with zinc thickness of 275g/sqm, avoiding rust effectively.
Rubber Sealing
Rubber sealing device is equipped for the double door close to avoid the air backflow. Greatly improved the running efficiency compared with the same power fan
Bearing
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
Blade Support Base
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided
Belt Pulley
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
Belt
Brand: Mitsuboshi belt (Japanese)
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.

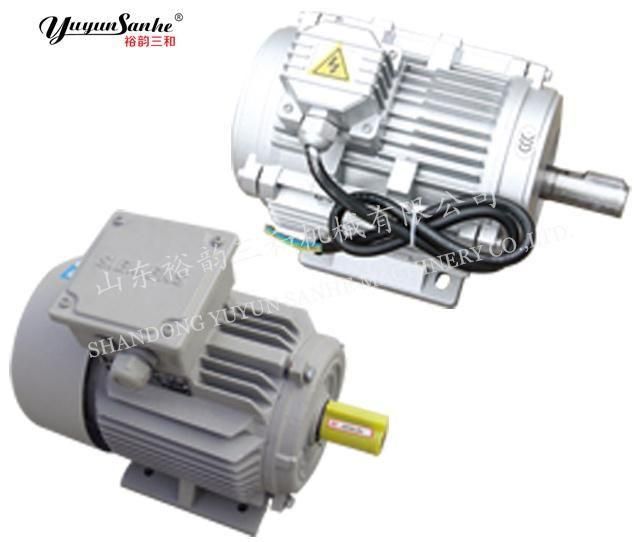

Motor
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

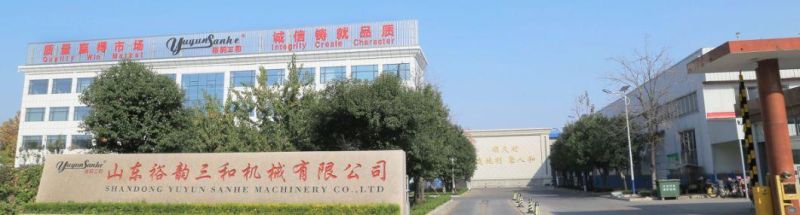

About our Company

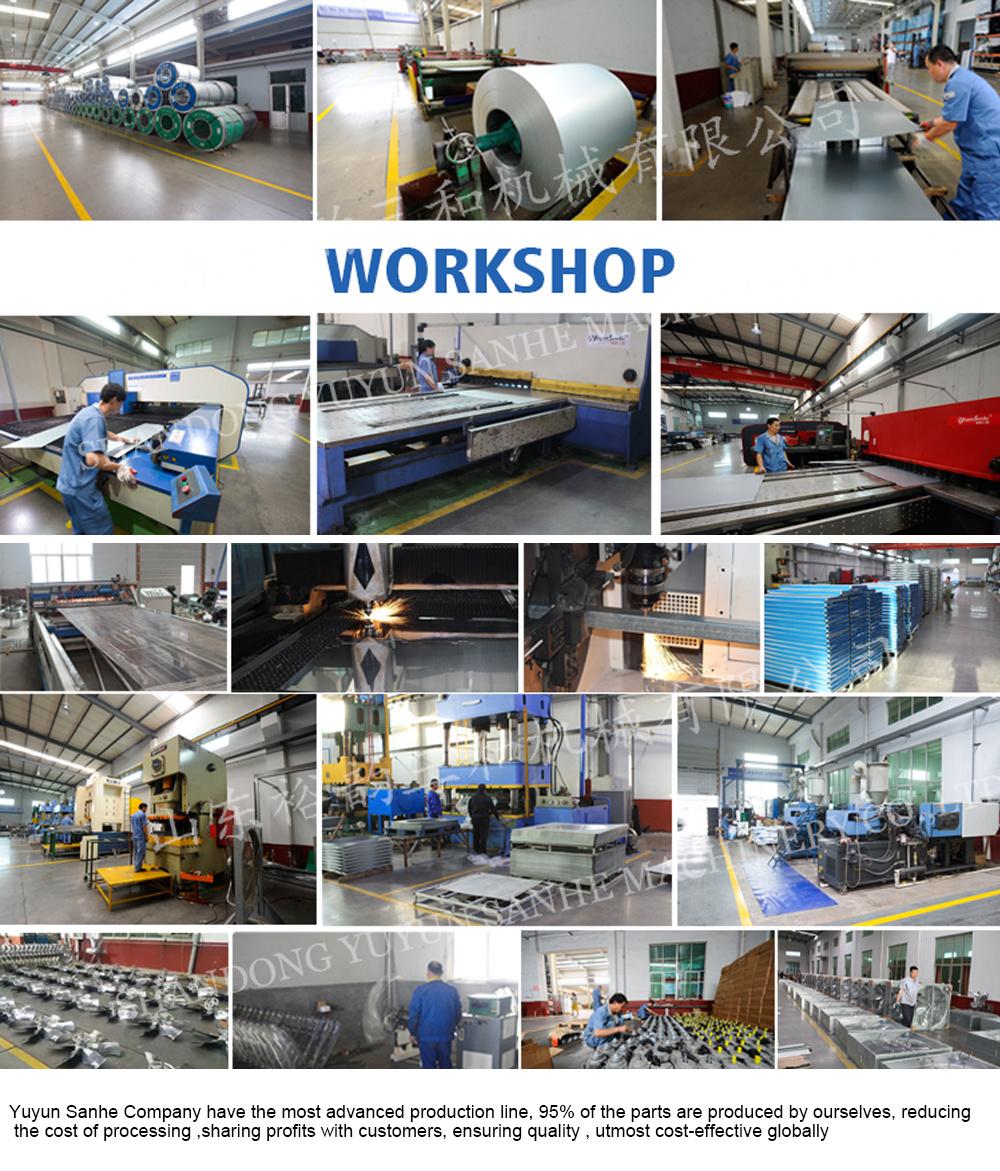

Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in
