Agricultural Machinery

60kg Pesticide Tank Uav Crop Dusting Drones for Spraying Pesticides

Qingdao Zhongfei Intelligent Technology Co., Ltd.
  • Installation:No Installation
  • Liquid Contained:Medicine
  • Spraying Shape:Full Cone
  • Volume:52L
  • Power Supply:Electric
  • Technics:Assembly

Base Info

  • Model NO.:D52L-8
  • Material:Aviation Carbon Fiber and Aviation Aluminum
  • Type:Sprayer Drone
  • Sprayer Type:Pump
  • Usage:Agriculture
  • Applicable Industry:Farms,Home Use,Epidemic Prevention
  • Feature:Anti-Fall
  • Production Material:Aviation Carbon Fiber and Aviation Aluminum
  • Production Folding Size:2760mm*2760mm*850mm
  • Max Pesticide Load:60kg
  • Aircraft Medicine Box Capacity:52L
  • Flight Radius:Less Than 3000m
  • Max Takeoff Weight:107kg
  • Aircraft Weight:30kg
  • Flight Attitude:Less Than 30m
  • Flight Duration:13-30minutes
  • Condition:New
  • Warranty Time:12 Months
  • Transport Package:Professional Package Box
  • Specification:1 CBM
  • Trademark:UNID
  • Origin:China
  • HS Code:8802200090
  • Production Capacity:1000 Unit

Description

Basic Info.

Model NO. D52L-8 Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 2760mm*2760mm*850mm Max Pesticide Load 60kg Aircraft Medicine Box Capacity 52L Flight Radius Less Than 3000m Max Takeoff Weight 107kg Aircraft Weight 30kg Flight Attitude Less Than 30m Flight Duration 13-30minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 1000 Unit

Product Description

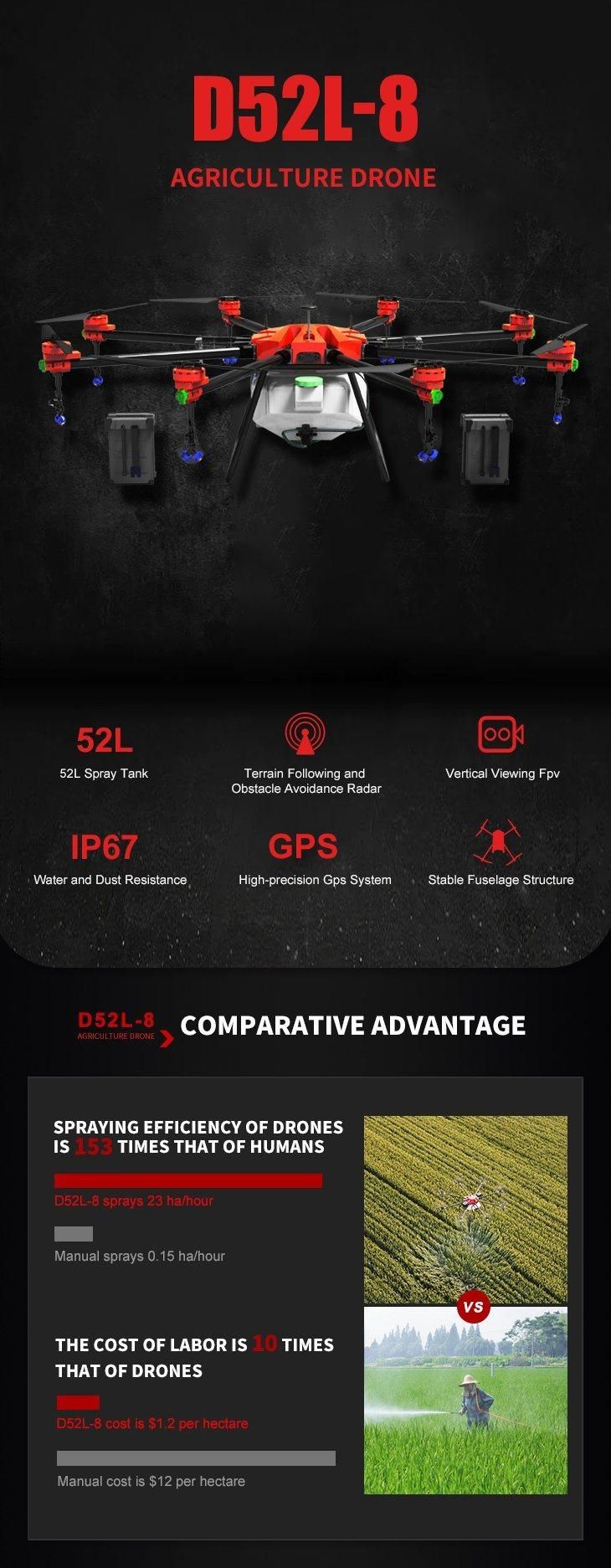

52L payload drone sprayer for farmer big load drone agricultural sprayer
- OEM  & ODM Service -              Our products and services are all over the world, and we are committed to promoting the development of global agricultural automation.At present, more and more countries and regions begin to contact and use our agriculture drone(uav)for spraying and sowing operations.While improving the work efficiency, it greatly reduces the cost of agricultural operations and reduces the working time.We will solve problems for you with our mature technical support and products and services.- Features -1.The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation.
2.Modular design of functional components, easy maintenance and upgrade.
3.Using intelligent plug-in battery
4.Use quick-plug medicine barrel
5.The arm can be quickly disassembled.
6.7075 aviation aluminum (high grade) is used for the folding part.
7.Wear the case, optimize the whole machine, and hide the medicine circuit.
8.High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
9.The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation.
10.The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good automization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration.
11.Alternating spraying function, the spray head can be switched independently.
 Product Parameter -
 Model D52L-8
 Product material Aviation carbon fiber + aviation aluminum
 Product expansion size 3550mm*3550mm*850mm
 Product folding size 2760mm*2760mm*850mm
 Packaging size 1980mm*1130mm*1000mm
 Maximum takeoff weight 109KG
 Aircraft weight 39KG
 Pesticide Barrel 52L
 Flight altitude ≤20 meters
 Fly time(unloaded) 15~25 minutes
 Fly time(loaded) 5~13 minutes when fully loaded
 Flight speed ≤15 m / sec
 Structure lift span ≥10 years
 Spray width 6~15 meters
 Hovering in the air Hovering in any direction
 Spray flow 3-20L/min
 Spray system Imported high pressure anti-floating atomizing nozzle
 Atomization point size 60~90μm
 Fly control Industrial Version GPS and Controller
 Spray efficiency ≥21hectares / hour
 Safe takeoff and landing wind speed ≤5
 Motor speed  5000rpm
 Power system 58.8V  (Full charge)
 Charer  AC Input 100-240V
 Lithium-polymer battery 14S  30000mAh*2
