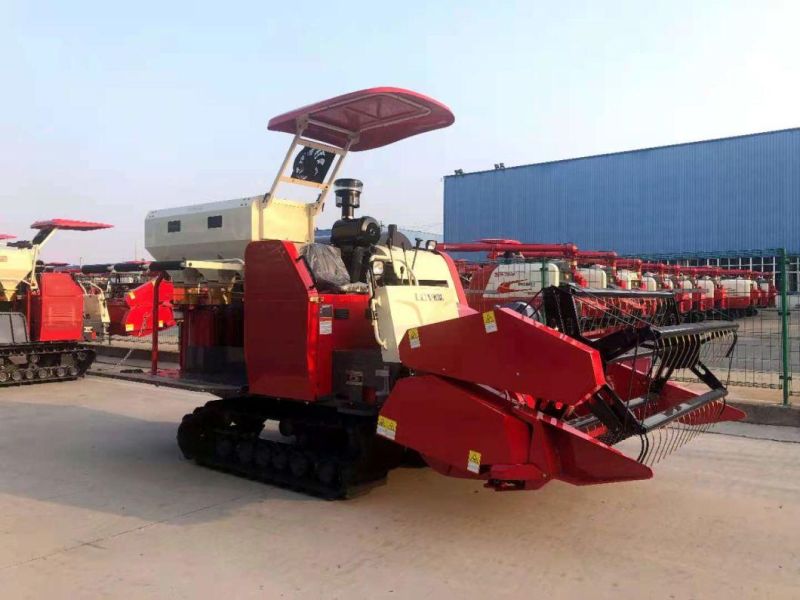

Lovol Af108 Manual Collection Combined Paddy Wheat Soybean Crawler Rice Harvester
Jiangsu Jitian International Trade Co., LTD.- After-sales Service:Online After-Sale Services
- Type:Horizontal Cut Harvester
- Application:Rice, Wheat, Soybean
- Power Source:Diesel
- Harvest method:Cutting
- Drive Type:Gear Drive
Base Info
- Model NO.:AF108
- Transmission:Soft Shaft
- Certification:ISO9001:2008
- Color:Red
- Condition:New
- Application Field:Agriculture, Livestock, Aquaculture
- Engine:Dachai
- Rated Power (Kw):74
- Unloading Method:Hydraulic Control Unloading Drum
- Rated Speed (R/Min):2400
- Min. Ground Clearance (mm):325
- Header Width (mm):2200
- Grain Unloading Tank Volume (L):1400
- Rice Collection Type:Manual
- Hydraulic Oil Tank Volume:21
- Hourly Production:0.3-0.7
- Transport Package:Container Packing
- Specification:5160*2750*2750
- Trademark:LOVOL
- Origin:China
- HS Code:8433510090
- Production Capacity:1000 P,Year
Description
Product InformationProduct Model AF88 AF108 Items Elevated Discharge Specification Dimensions L*W*H 5160*2750*2750 5160*2610*2750 Weight(kg) 2970 2970 Engine Model Dachai-CA498Z-09T2/01 Dachai-CA498Z-10T2/01 Structure Type Water-Cooled Four-Stroke Turbocharged Engine Water-Cooled Four-Stroke Turbocharged Engine Rated Power (kw) 65 74 Rated Speed (r/min) 2400 2400 Fuel type Diesel (0#) Diesel (0#) Fuel Tank Volume 95 95 Movement System Track Specification [Width(mm) Link Pitch (mm)Quantity(Link)] 500×90×51 500×90×53 Gavge(mm) 1150 1150 Min. Ground Clearance (mm) 325 325 Gearbox Type (HST) (HST) Transmission type ( 3-gear Range Shifts) Continuously Variable-Speed Forward and Backward ( 3-gear Range Shifts) Continuously Variable Speed Forward and Backward Theoretical Traveling Speed (km/h) Low Speed 0~3.96 0~3.96 Standard Speed 0~5.14 0~5.14 Walk Speed 0~7.37 0~7.37 Header System Header Width (mm) 2000 2200 Threshing System Threshing type Longitudinal Axial Flow Bar Tooth Type Longitudinal Axial Flow Bar Tooth Type Threshing Cylinder Outer Diameter(mm) Φ620×1954 Φ620×1954 Rotation Speed (r/min) 580 580 Grain Unloading System Tank Volume (L) 1400 1400 Grain Unloading Rotation Range (Degree) 270 / Unloading Grain Height Range (mm) 920~4200 / Electronics and misc Battery Voltage (V) 12 Rotation Driving System Starting relays Rated current (A) 50 50 Voltage (V) 12 Grain Unloading Outlet Height Range(mm) Hydraulic Oil Tank Volume 21 21 Hourly Production(m2/h)(Vertical dry field crops environment) ☆0.3~0.7 ☆0.3~0.7 Rice collection Type Auto Manual Auto Manual Key Features Company profile Jiangsu Jitian International Trade Co., Ltd. is a wholly-owned subsidiary of Jiangsu Jitian Group Co., Ltd., established in 2010, located in Xuzhou, Jiangsu province with convenient transportation and beautiful environment. Our company covers an area of 12,000 square meters and has 80 employees. We specialize in the supply of agricultural & construction machinery and accessories. Our main products include tractors, cultivators, harvesters, diesel engines, trucks, pile drivers, drill machines, excavators, loaders, and so on.We warmly welcome customers at home and abroad to cooperate with us for common success. Certificate
