• Model NO.：ZPH-FL
• Blade Type：Curved Teeth
• Computerized：Computerized
• Certification：ISO9001:2008
• Condition：New
• Transport Package：Standard Export Package
• Specification：100
• Trademark：ZAPHUE
• Origin：China
• Production Capacity：5000sets

Basic Info.

Model NO. ZPH-FL Blade Type Curved Teeth Computerized Computerized Certification ISO9001:2008 Condition New Transport Package Standard Export Package Specification 100 Trademark ZAPHUE Origin China Production Capacity 5000sets

Product Description

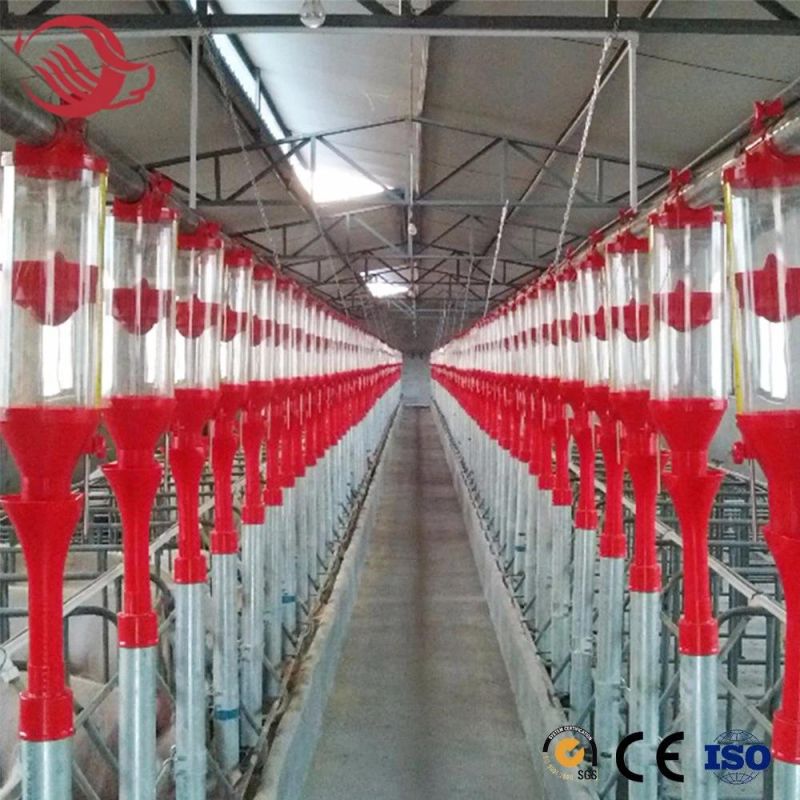

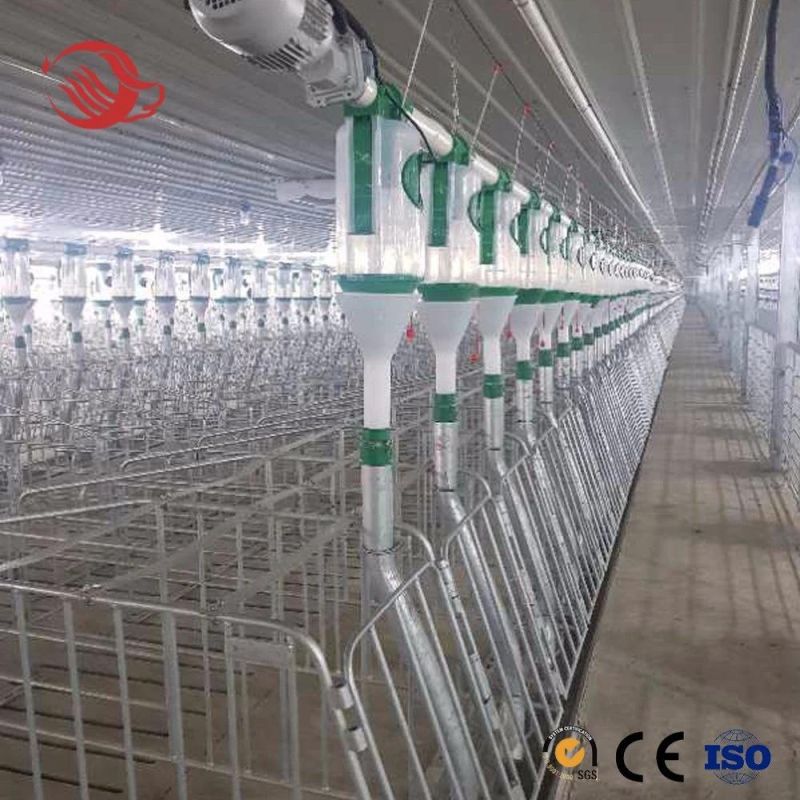

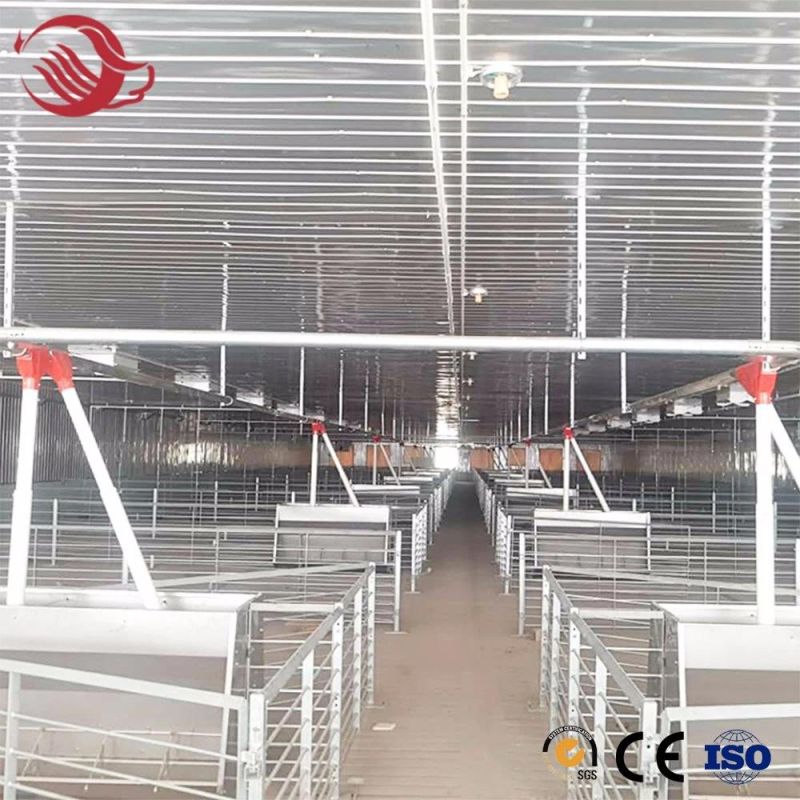

Automatic feeding system

Characters:

1. reasonable design,easy to install, suitable for any requirement
2. delivery smoothly, even vertical pipe can minimize fodder lose
3. there's a calibration device in power supply box, automatically calibrating
4. driving wheel directly connected with axle of main engine, reducing turbulance caused by belt transmission.
5. Utilizing closed cycle theory delivers powdery or particle fodder to different places through driving main enginee. Equipped with 90 degree corner wheel can realize all-around delivery. Adjustable feed meter can realize accurate individual feeding. Material level sensor and clock controler makes whole system automation come true.

Advantages:

1. Fixed quantity and time saves fodder
2. Efficiently avoid pig stress reaction
3. Cut off the transmission route of desease
4. Avoid fodder waste, save labor force, improve efficiency

Main accessaries:

1. Driving device
2. Back to the hopper
3. Delivery pipe with wirerope or chain
4. 90 degree corner
5. Stop sensor
6. Feed meter automatic release device
7. Feed opening with switch, stretch pipe
8. Feed meter/doser
9. Auger driver
10. Contoler device

Main engine driving system(patent No.ZL 201220416561.6):

1. stainless outside shell:strong corrosion resistance, indoor and outdoor installation
2. imported or made-in-china motor. Equipped with automatic tensioning device
3. Reducer: cycloid cam, worm and gear
4. Chain wheel and auxiliary wheel made from Japan glass fiber reinforce nylon
5. The same material with jack panel greatly reduce damage and noise caused by friction
6. adopt import brand Inner capacitance components to guarantee equipments working normally

Delivery pipe(patent No.ZL 201220416456.8):
galvanized pipe, wall thickness:1.6mm, outside diameter:60mm
Chain: carburizing treatment after welding forming increases surface hardness, wear-resisting, contact and bending fatigue strength,improving service life and drawing force.
Chain plate: made from imported Japan glass fiber reinforced nylon through injection-compression, high wear-resistance strength, 45mm diameter greatly improving delivery capacity.
Corner (patent No.ZL201220416445.4)
Outside shell: made from imported American Polycarbonate through pressure casting, high impact resistance, good size stability, electric insulation, corrosion resistance, wear resistance, colorless and transparency, strong adaptation to temperature difference.
Inner corner: The same material with chain plate greatly reduces damage caused by friction. Equipped with national standard double sealed bearing makes noise lower 40% than congeneric products.
Fastener: stainless bolts strengthen corrosion resistance and convenience of maintenance.
Auger:

1. adopt spring steel with good quality and high tenacity
2. apply to all kinds of farm house constructure
3. strong conveying ability
4. easy and quick to install
5. driven by triangular belt motor or gear motor

Why choose us?
1.Our company established by two famous manufacture with many years experience on farm equipment and livestock raising instrument.
2.We also have 20 branch companies in different city, so we know market very well,and  could source,supply all kinds of live stock equipment.
3.We have strong professional engineer team, could design farm for customers.
