• Model NO.：XINhe-L509
• Mechanization：Automatic Planting Machine
• Ditching Mode：Continuous Ditching
• Sowing：Drilling Seeder
• Condition：New
• Transport Package：Wood
• Trademark：Xinhe
• Origin：China
• HS Code：94069000

Basic Info.

Model NO. XINhe-L509 Mechanization Automatic Planting Machine Ditching Mode Continuous Ditching Sowing Drilling Seeder Condition New Transport Package Wood Trademark Xinhe Origin China HS Code 94069000

Product Description

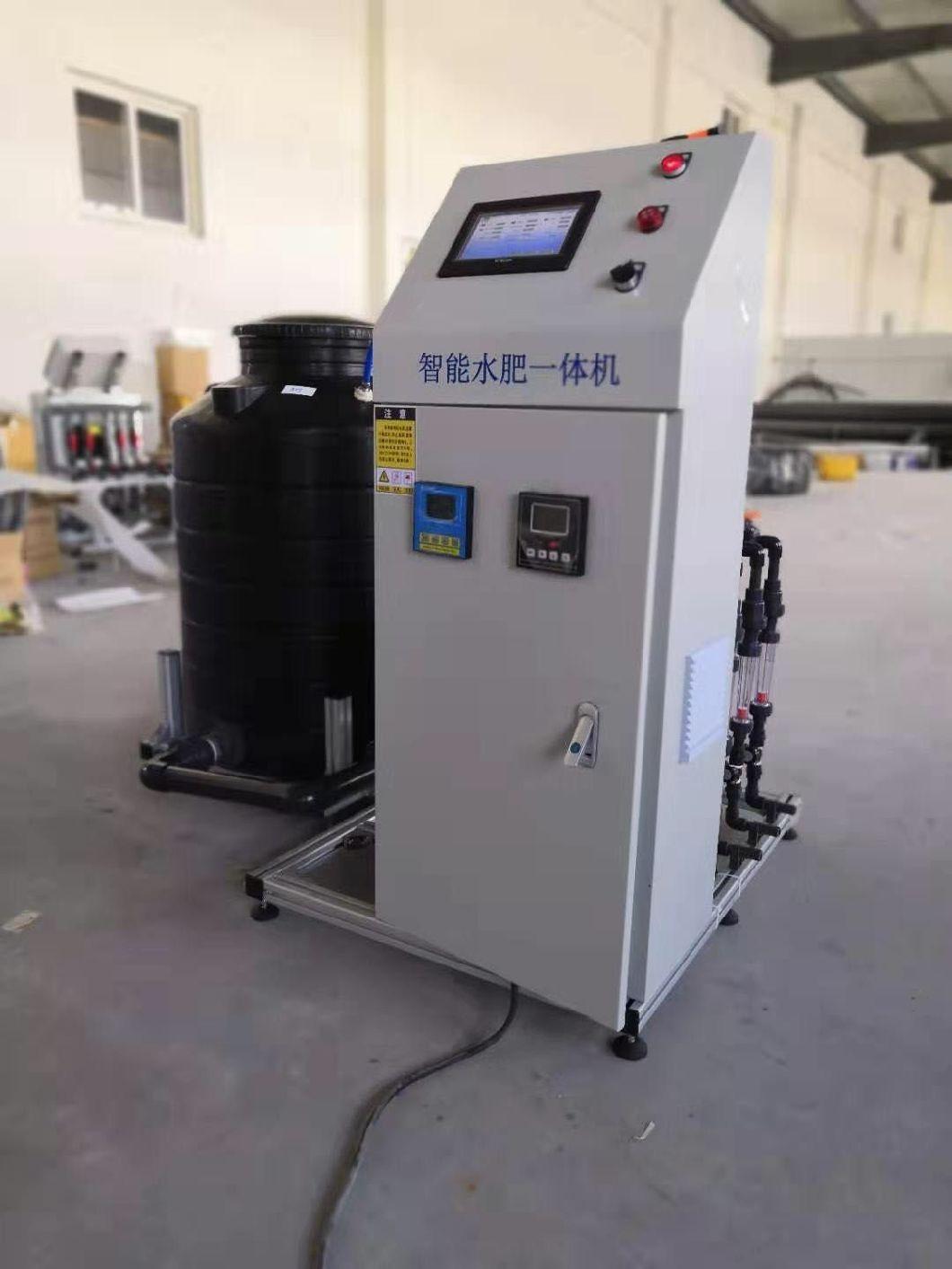

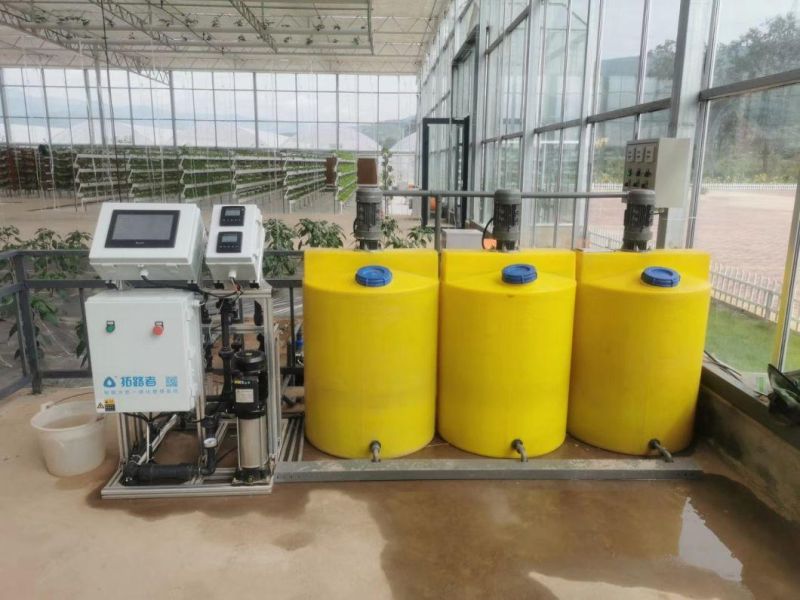

             Modern Agricutural Fertilizer Dosing System for Irrigation Drip

Features of fertilizer control system
1. The combination of fertilization and control can control the operation of the external hydraulic control valve in addition to the suction channel and the fertilizer injection pump, and can also control a main valve or a water pump to meet the user's requirements. Extremely accurate and reliable, prevents water and fertilizer waste while reducing environmental pollution.

2. There are two modes of manual control and automatic control. The two modes can be switched freely. Optional mobile phone remote connection control with Android or IOS system.

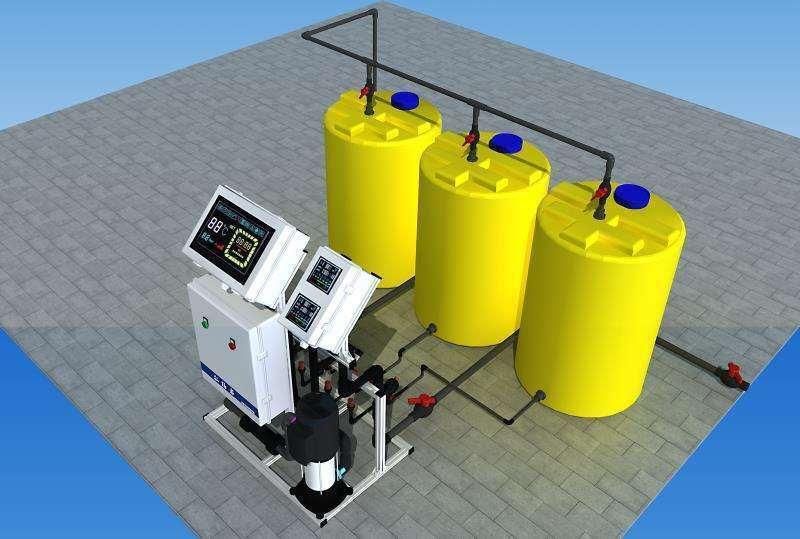

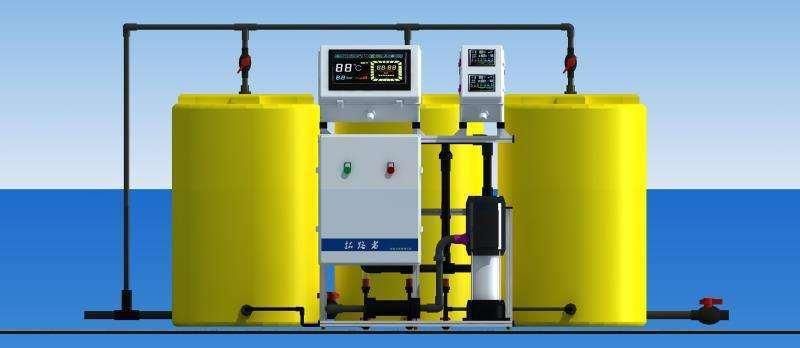

3.The suction channel adopts Xinhe Venturi suction device, the system is reliable and easy to install and maintain system. With 3 channels as standard. which can be equipped up to 8. The suction volume of single suction channel can be adjusted from 25L/H up to 1000L/H.

4. EC, PH sensor can monitor the EC and PH value of the fertilizing liquid in real time and display it in EC and PH panel. It is convenient for the user to adjust the rate of fertilization in real time according to the need. The amount of fertilizer can be adjusted by controlling the valve on the fertilization channel. Ensures very precise and homogeneous nutrient dosing for greenhouse crops.
5. With system inlet pressure monitoring and alarm function, it has the automatic protection function. When abnormal operation of the equipment, the system can automatically stop.

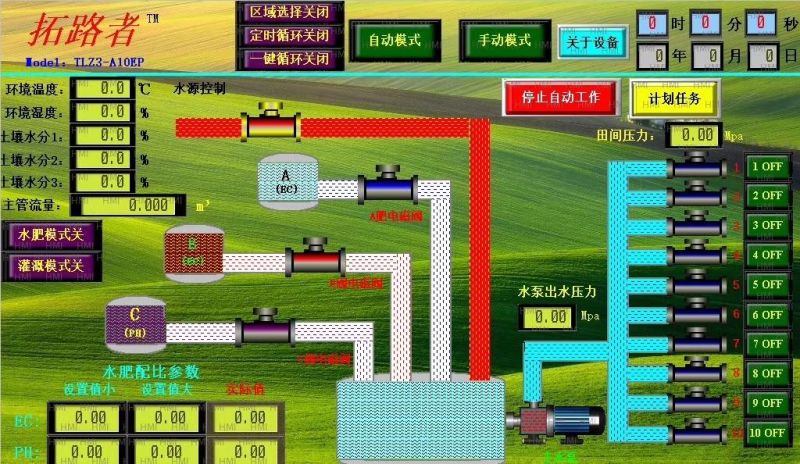

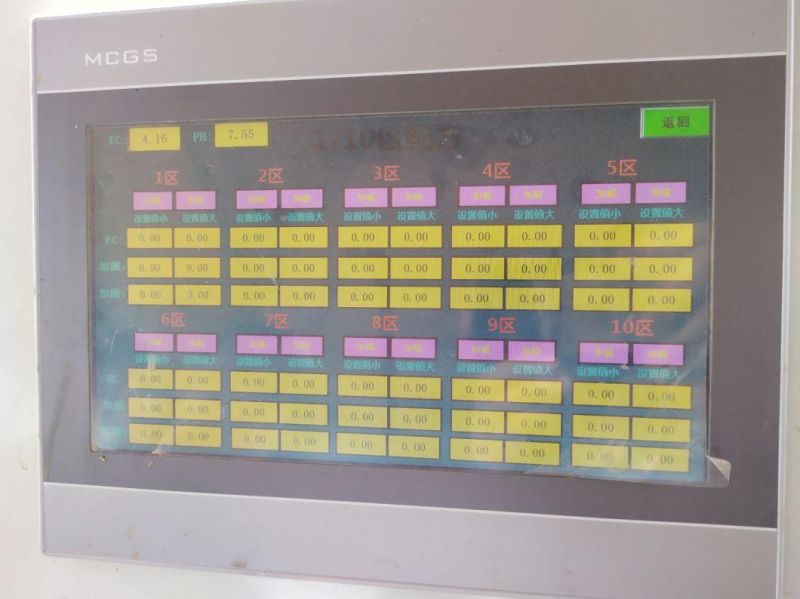

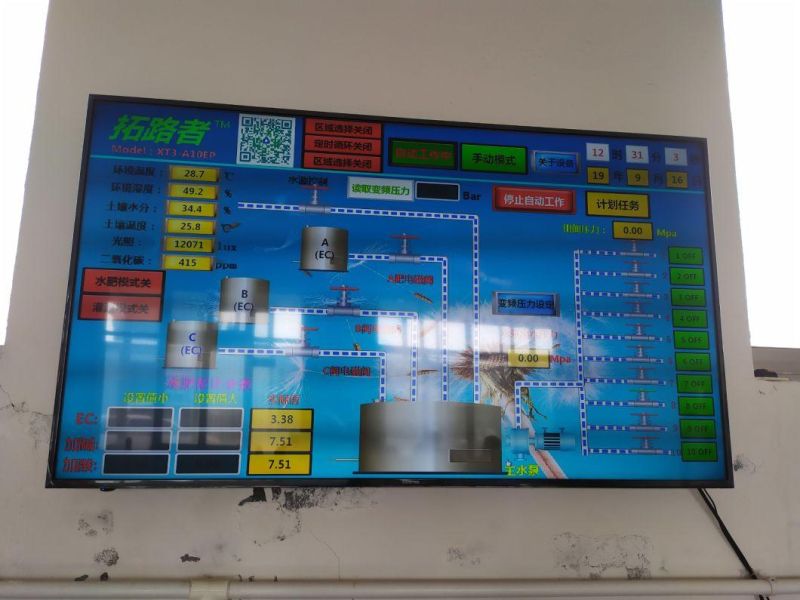

6. All operation interfaces are in English and industrial-grade LCD touch screens are used to facilitate the user's observation, operation and use at the scene.

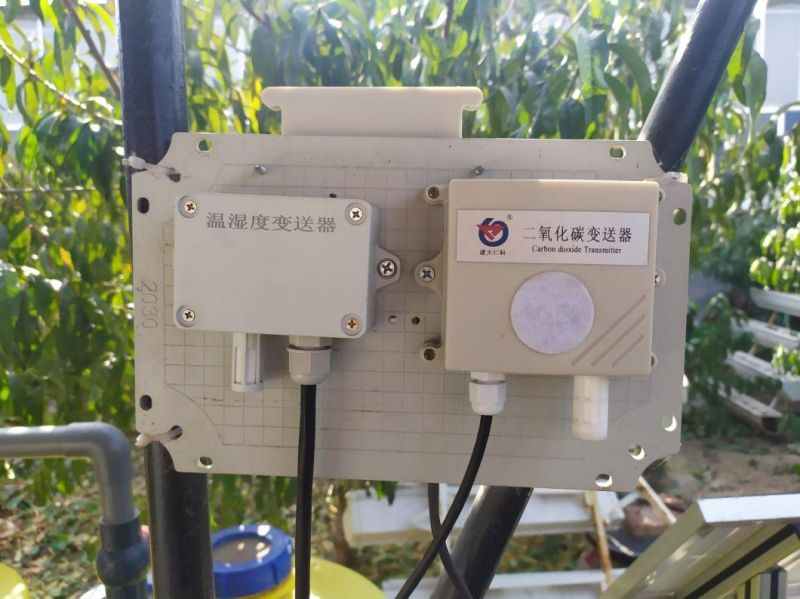

7. Using advanced intelligent sensor technology, PLC technology, computer control technology, control system adopts 2-tier network topology, Siemens PLC and industrial grade 1 LCD touch screen at the bottom. Easy to operate, reliable performance.

8. Rich historical records and data curves, storage methods can be saved and exported with commonly used SD card or U disk. And there is optional remote control for remote viewing













Our factory:

Qingzhou XinHe Greenhouse horticulture Co., LTD is a professional company which sets greenhouse and supporting facility design, manufacture and research&development in one. The major products include flower market greenhouses, planting greenhouses, aquaculture greenhouses, livestock breeding greenhouses, ecological restaurant greenhouses, glasshouses, spherical greenhouses, sunlight-plate greenhouses, photovoltaic solar energy greenhouses, thin film greenhouses and corresponding accessories.
