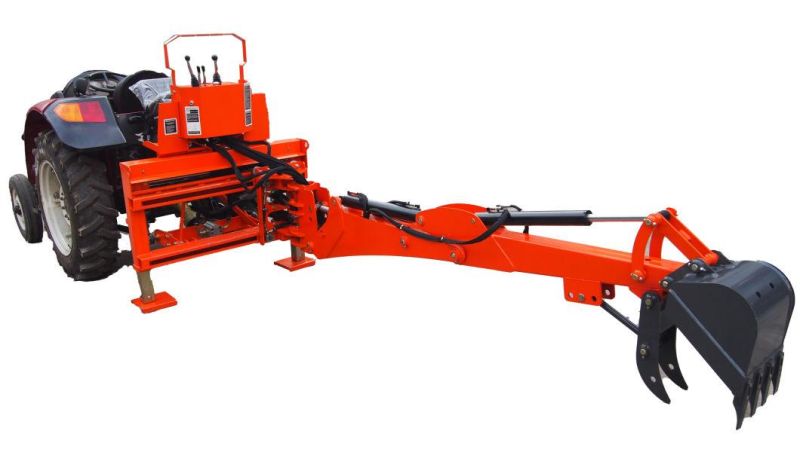

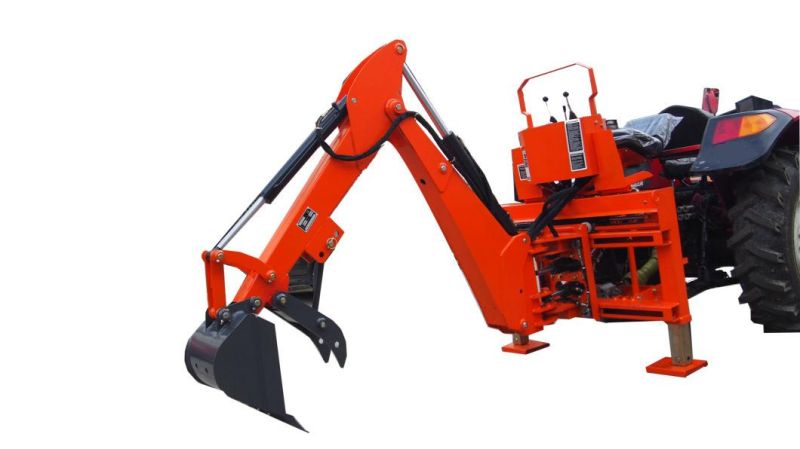

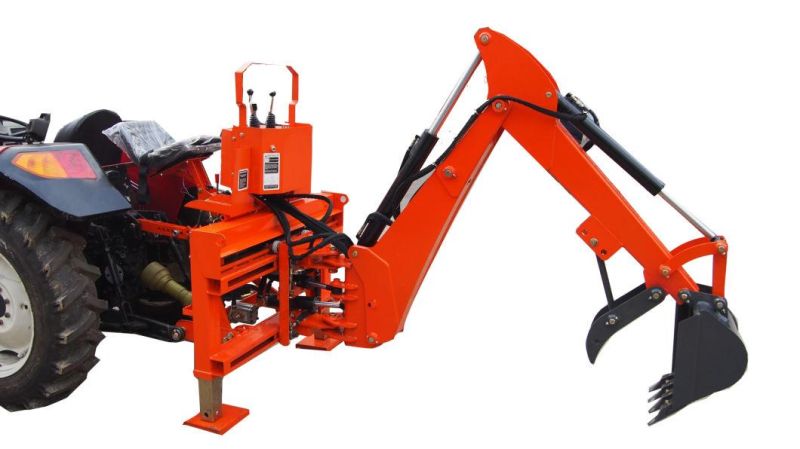

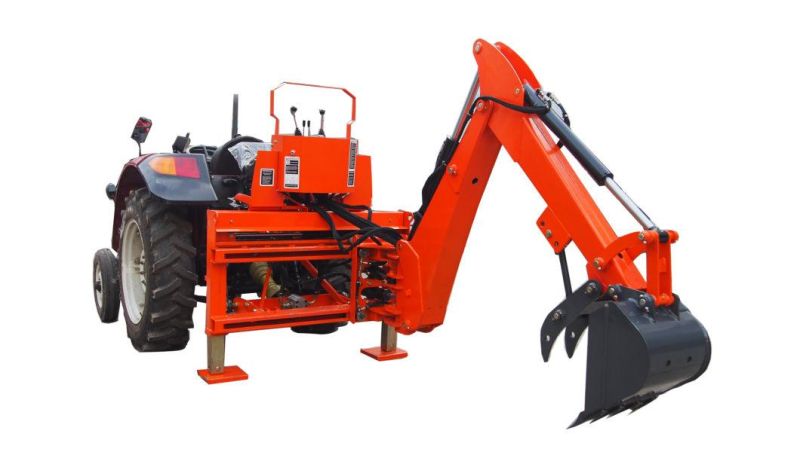

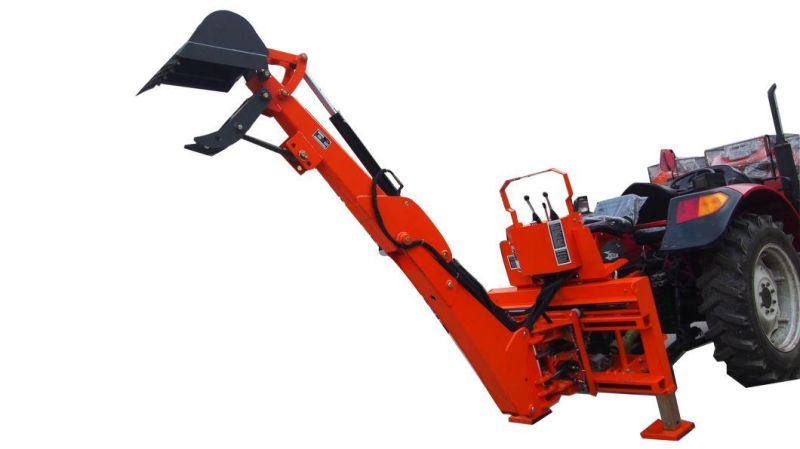

Side Shift Backhoe Bsh Series
Changzhou Qianyi Machinery Technology Co., Ltd.- After-sales Service：One Hour
- Warranty：One Year
- Transport Package：Iron Frame Transport
- Trademark：qianyi
- Origin：China
Base Info
- Model NO.：BHS
Description
Basic Info.
Model NO. BHSProduct Description
| MODEL | BHS-175 | BHS-195 | BHS-225 |
| Tractor HP | 25-30hp | 30-45hp | 45-60hp |
| 3-point linkage | Cat-1 | Cat-1 | Cat-1 |
| Structure Weight | 520kg | 560kg | 750kg |
| (A) Working length | 2600mm | 2900mm | 3300mm |
| (B) Digging Depth | 1750mm | 1950mm | 2250mm |
| (C) Extend height | 3120mm | 3170mm | 3450mm |
| Unload height | 1800mm | 2000mm | 2300mm |
| Leg Spread | 1700mm | 1700mm | 1700mm |
| Swing Angle (Boom) | 180° | 180° | 180° |
| Bucket Width | 300mm | 300mm | 400mm |
Features:
-Side-shift boom
-Suits all types of tractors with Cat 1 or 2,3-point linkage kit
-Joustick style control console
-Tough and reliable hydraulic arm
-Individially controlled support legs
-Boom lockout pins for transport
We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control and abundant technical force, our machines are mainly exported to European, North American and Southeast Asian countries.
All of our machines are with one year warranty. We often insist on one principle"Better quality!Better service!Better price!"
