• Model NO.：SFSP668-1000
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Output(T/H)：10-50
• Voltage：380V 50Hz
• Spare Parts：Hammer and Screen
• Main Power(Kw)：55-220
• Transport Package：Pallet
• Specification：1000KG
• Trademark：FDSP
• Origin：China
• HS Code：8436100000
• Production Capacity：10-50tph

Basic Info.

Model NO. SFSP668-1000 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Output(T/H) 10-50 Voltage 380V 50Hz Spare Parts Hammer and Screen Main Power(Kw) 55-220 Transport Package Pallet Specification 1000KG Trademark FDSP Origin China HS Code 8436100000 Production Capacity 10-50tph

Product Description

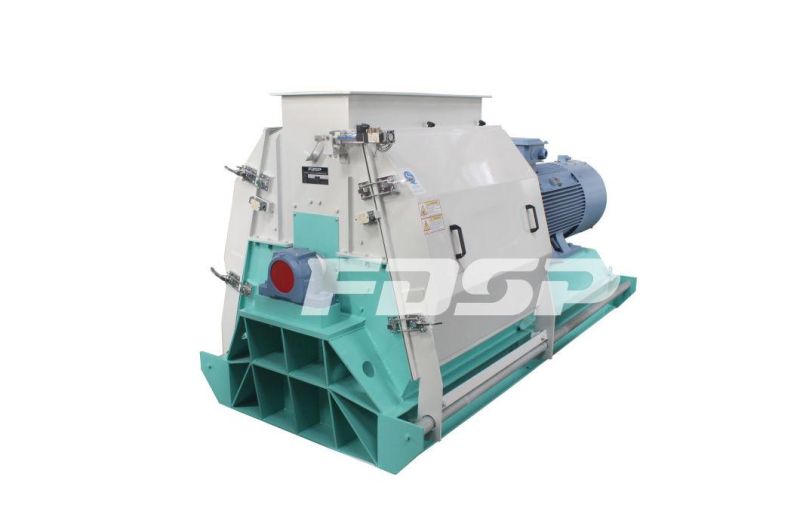

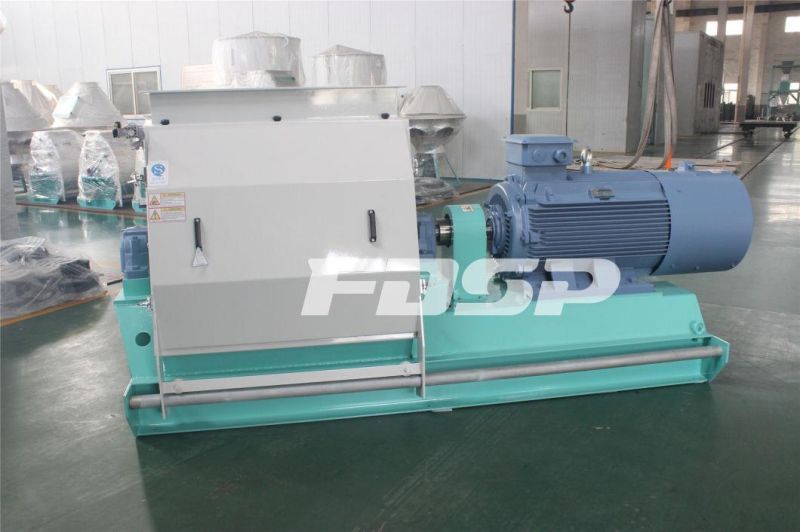

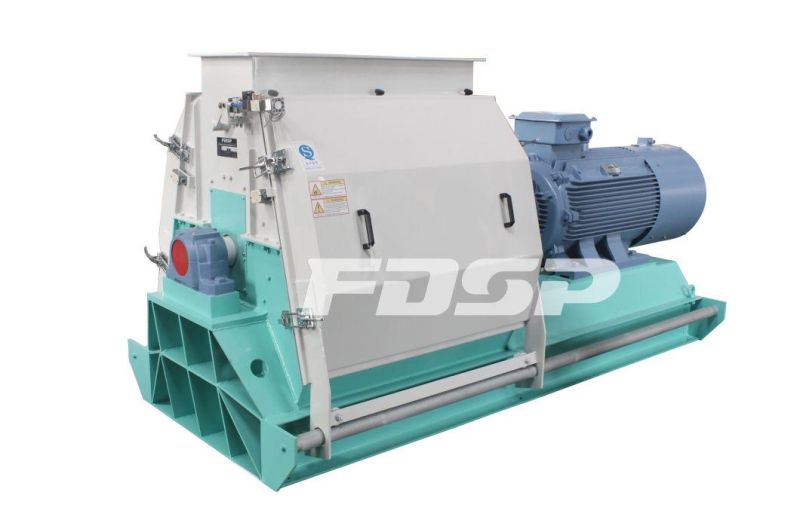

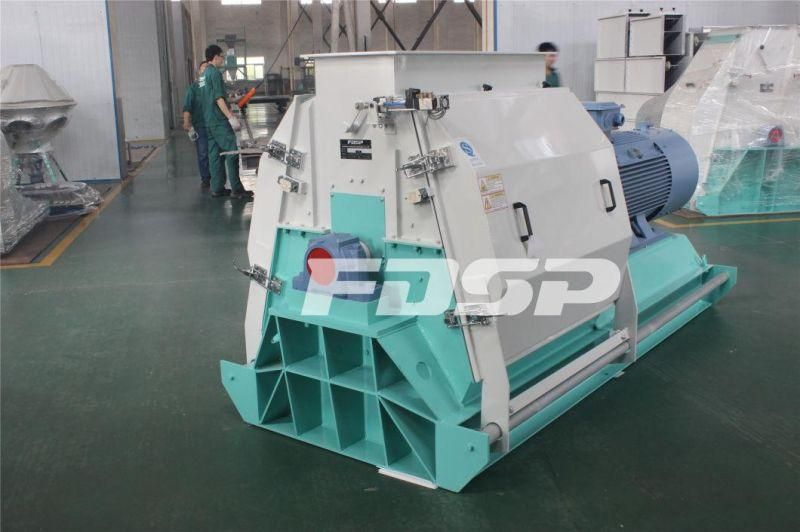

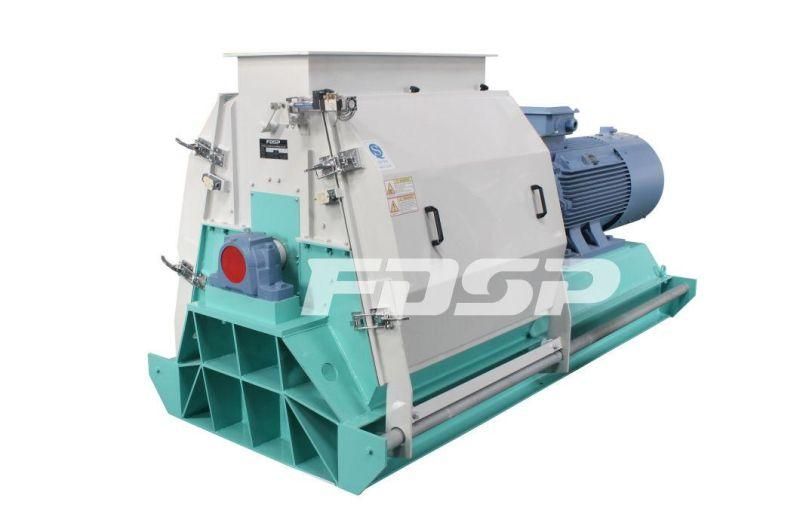

CE ISO Hot Sale Low Vibration SFSP668 Feed Grinding Machine

Features:
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The Bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. Rotor passes accurate dynamic balancing test, resulting in low equipment noise and smooth running.
4. Both coarse and fine grinding is realized through adjusting the gap between beater and screen;

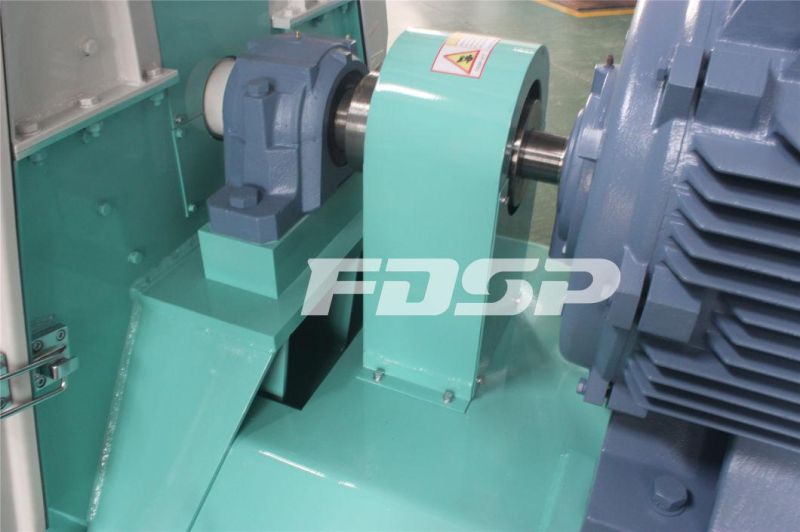

5. New type S shape coupling directly connecting driving results in big offset travel and effectively avoid the heating of bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported products are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.

Model Parameters	SFSP998-I	SFSP998-II	SFSP998-III	SFSP998-IV
Dia. Of Rotor(mm)	1200	1200	1200	1200
Width Of Grinding Chamber(mm)	300	400	500	600
Speed Of Rotor(rpm)	1480	1480	1480	1480
Power(kw)	55/75	90/110	110/132/160	180/200/220
Output(t/h)	10-15	12-20	25-35	38-50
