• Certification：CE, ISO9001:2008
• Condition：New
• Type：Hand Self-Propelled
• Weight：340kg
• Power：Gasoline Engine 3.5HP
• Rows：2
• Working Capacity：0.1-0.13 HEC,H
• Transport Package：Wooden Box

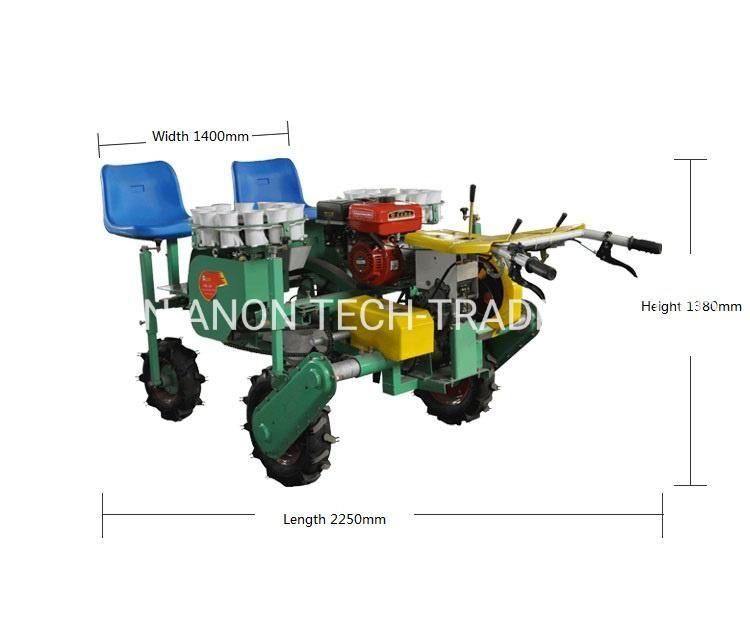

• Specification：2250*1400*1380mm
• Trademark：ANON
• Origin：China
• HS Code：84323939
• Production Capacity：5000PCS,Month

TypeHand self-propelledSize2250*1400*1380mmWeight340kgPowerGasoline engine 3.5hpRated speed1800 r/minWheel track800-1100/850-1200 mmWheel base80mmWheel model4.00-10/4.00-7Planting typeDuck mouth hanging cupRows2Working speed1-1.5 km/hWorking capacity0.1-0.13 hec/hWalking speed1-2.6 km/hRow spacing250-500 mm(adjustable)Planting Depth60-120 mmOperation people3
Specification and Function:

This machine has many practical functions such as automatic driving, transplanting, horizontal seedling throwing, etc.

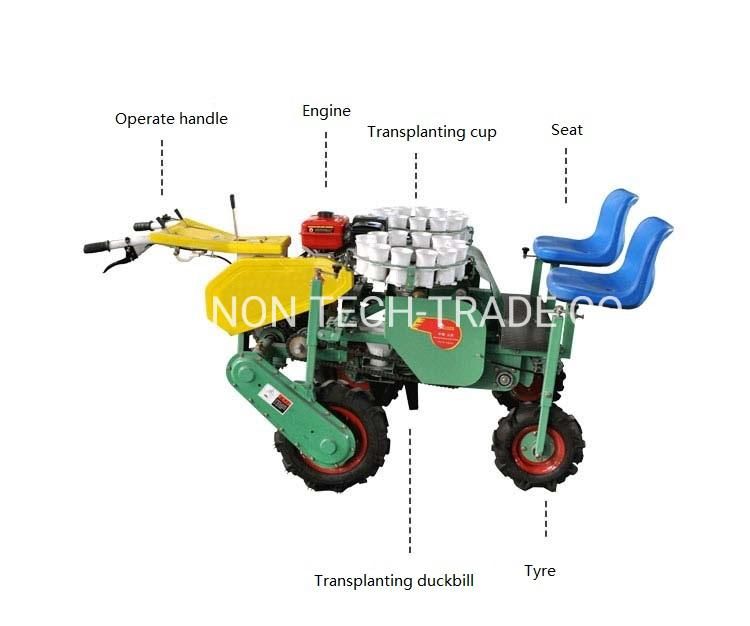

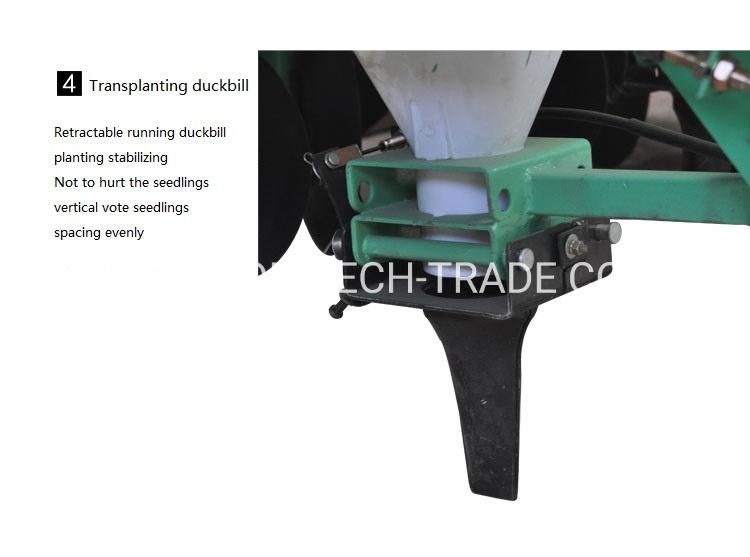

The engine is equipped with a gasoline engine to generate power, and the operation of various components is controlled through a gearbox and clutch. The power generated by the engine is transmitted to the main shaft through the gearbox, and the main shaft drives the driving wheels through a chain drive to drive the machine to travel. The user can adjust the gearbox position to achieve different driving speeds as needed. The transplanting parts are driven by a chain wheel that runs synchronously with the main shaft through a chain drive, and are driven by each drive shaft on the transplanting main board to rotate the double crank linkage mechanism, thereby driving the transplanting duckbill to complete the reciprocating circular motion. The movement is combined with the forward movement of the machine, which can ensure the vertical rise and fall of the duckbill and realize the vertical transplanting of crops. The opening and closing of the transplanted duckbill is controlled by a pull wire. In the non-transplanting area, the user can adjust the clutch according to the needs to decide the machine is transplanting or not, the operation is convenient.

Changing the adjusting sprocket of the transplanting transmission mechanism with different numbers of teeth can adjust the planting distance of crops and realize the adjustable plant spacing to meet the planting needs of different crops. The horizontal seedling throwing device is adopted for the seedling placement to ensure that the operators have enough time to drop the seedlings, which effectively reduces the rate of transplanting seedlings.
The transplanting machine is especially suitable for transplanting many kinds of seedling crops with nutrition pots, such as tobacco, pepper, eggplant, tomato, sugar beet, etc. in small plot areas such as mountainous areas, hills, and plastic greenhouses.

Details:
