• Model NO.：roller
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Share Part：Roller
• Application：in Ring Die Pellet Mill
• Pattern：Teeth, Honey-Comb
• Brand：Pellet Mill of Cpm, Muyang,Bulher
• Transport Package：iron case
• Specification：100KG
• Trademark：FDSP
• Origin：Jiangsu China
• HS Code：84361000
• Production Capacity：5000PCS Per Quarter

Basic Info.

Model NO. roller Pellet Mill Type Ring Die Pelleter Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Share Part Roller Application in Ring Die Pellet Mill Pattern Teeth, Honey-Comb Brand Pellet Mill of Cpm, Muyang,Bulher Transport Package iron case Specification 100KG Trademark FDSP Origin Jiangsu China HS Code 84361000 Production Capacity 5000PCS Per Quarter

Product Description

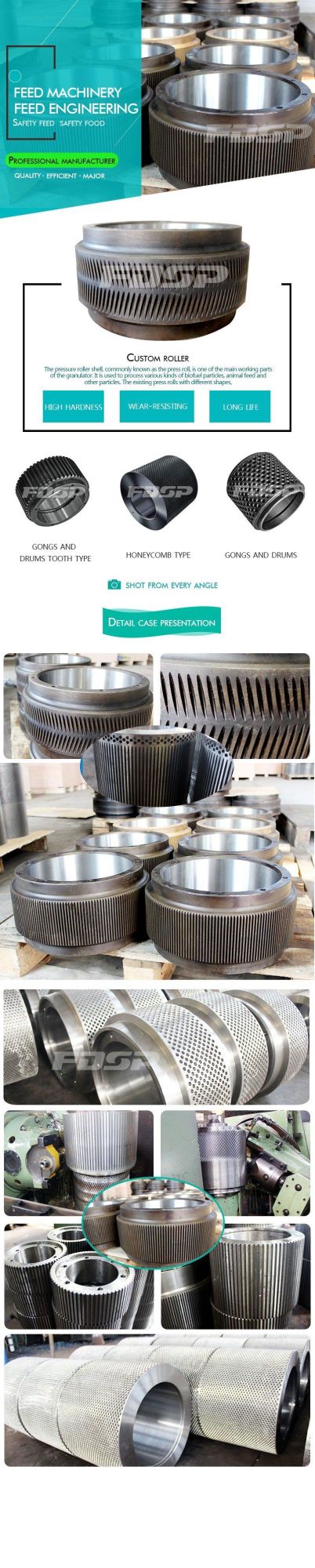

Animal Feed Pellet Roller Shell Assembly Feed Machinery Wearing Parts
we can custom-made press dies and rollers, roller assembly for various of both dometic and abroad pellet mill according to the drawing and technical parameters.such as CPM,PROCESS.etc

SHART PART

ROLLER



Material type	Dia hole dia.
Livestock poultry feed pellet	2-6mm
Aquatic feed pellet	1.5-3.5mm
Compound fertilizer pellet	3-6mm
Hop pellet	5-6mm
Chrysanthemum pellet	5-6mm
Peanut shell pellet	5-6mm
Cottonseed hull pellet	5-6mm
Trurf pellet	3-6mm
Wood pellet	5-16mm



Type	honey-comb type, teeth or customized
Application	spare parts for pellet mill, like feed pellet mill, bio-mass pellet mill
	Our roller shell is for pellet mill from CPM, BULHER, MUYANG, ETC

 Feature of FDSP roller shell
1Roller shell,made of wear resistant alloy raw material, processed by fine and heat treatment;
2Made of bearing steel, high hardness, good wearing resistance, long life, different tooth depth and shape at option;
3 Tooth surface forms of roller shell, good to pelleting performance
4 Frequently-used roller shell tooth form:honeycomb,scallop shape and scallop shape with edge banding
5 Honeycomb,scallop shape, the two types of roller shell is mainly used in livestock and poultry feed pelleting.
6 The advantage of honeycomb rolller shell is the even wearing of ring die, but coil performance is bad.
7Scallop-shaped roller shell features good coil performance, widely used among feed mills, but wearing of ring die is not even.
8Scallop shape with edge banding, this kind of roller shell is applicable for aqua feed. Feed is not easy to slide towards both sides when being extruded.
In addition now we are looking for distributor, trader, and whole seller for roll shell in Asia, America, Australia and Europe

Product Description:
Roller shell, commonly known as roller, is one of the main work parts in pellet mill and is applied for processing various kinds of biomass fuel granule, animal feed pellet and other pellets. It is made of wear resistant alloy steel with carburization heat treatment, featuring even hardness and long service life. It is divided into tooth through type, tooth no through type and pass type. Rolling parts such as inner eccentric shaft are precise in size, facilitating space adjustment by customers between roller and ring die according to production requirement. It is also characterized by ease of mounting and replacing.
