• Model NO.：5XZC-7.5DS
• Service：on Site Traning
• Warranty：1 Year
• Application：All Type Grain Seed
• Cleaning Rate：98%
• Transport Package：20 Gp
• Specification：ISO
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. 5XZC-7.5DS Service on Site Traning Warranty 1 Year Application All Type Grain Seed Cleaning Rate 98% Transport Package 20 Gp Specification ISO Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 50 Sets/Month

Product Description

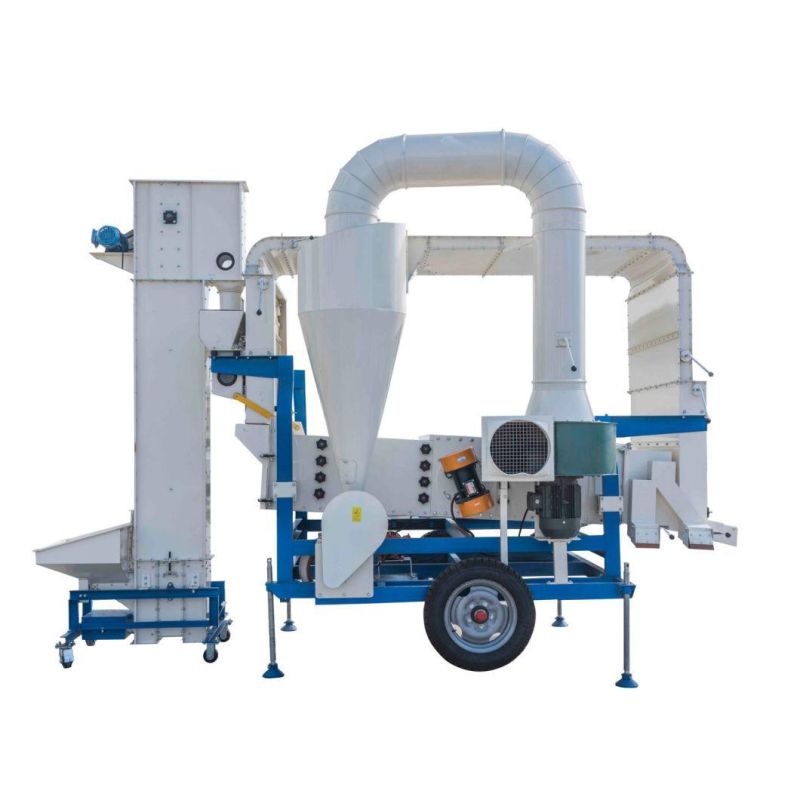

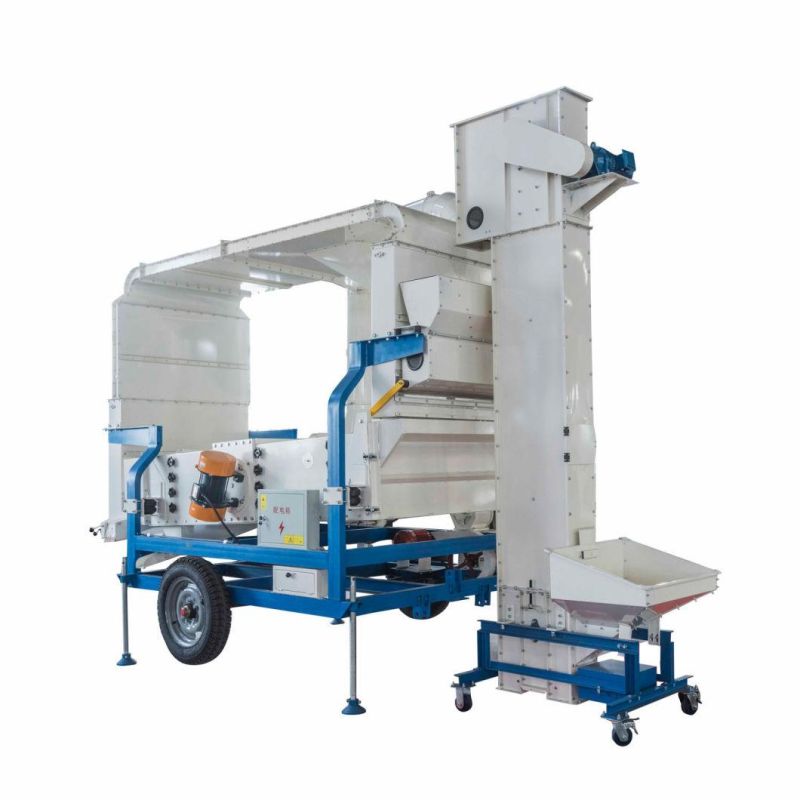

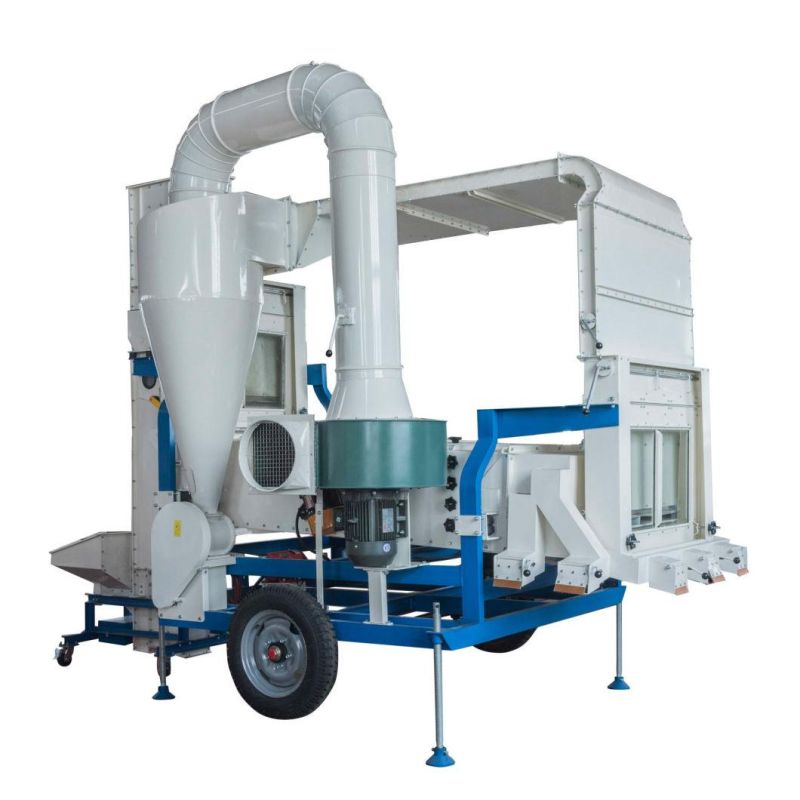

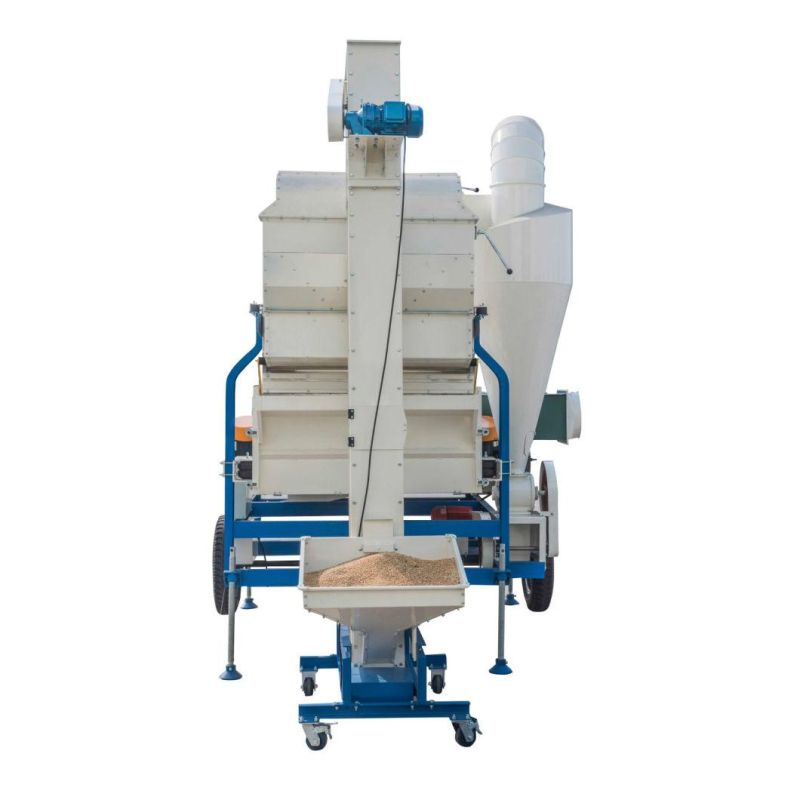

sunflower seed cassia seed sesame seed cleaning machine
INTRODUCTION

 Seed Cleaner & Grader is the main grain seed cleaning equipment. It will remove the dust, light impurity, big and small impurity out. 5XZC-7.5DS model is our new model. It has two air cleaning systems, which is suitable for light raw material which is sensitive to air volume changing.

WORKING PRINCIPLE

After grain seed fed into the machine by bucket elevator, the dust and light impurity were removed by air aspiration system, and then materials enter to sieving trunk which has multi sieve layers, finally, the material was graded to a different level by size, at the same time all the oversize and undersize impurities were removed.


FEATURES

Customized various sieve's size and amount of sieve layer that make the seed cleaner & grader has a wide range of applications and high grading efficiency.
Cyclone dust separator protects working environment.
Double as aspiration system with stone removing platform lead to higher cleaning result.

PARAMETER


Model	5XZC-7.5DS
Dimension (L×W×H)	3920×2430×3440mm
Dimension of sieves	2400×1250mm
Capacity	7500kg/h
Weight	1770kg
Power	9.9KW
Remarks	double air cleaning system
