• Model NO.：JLGC-200
• Portable Harvester Type：Automatic Type
• Certification：ISO9001:2008, CE
• Color：Customized
• Condition：New
• Application Field：River,Lake,Canal,Coastal Area
• Cruising Ability：24h
• Transport Package：in Container,Bulk Ship
• Specification：Customized
• Trademark：Julong
• Origin：China
• HS Code：89051000
• Production Capacity：50 Sets,Year

Basic Info.

Model NO. JLGC-200 Portable Harvester Type Automatic Type Certification ISO9001:2008, CE Color Customized Condition New Application Field River/Lake/Canal/Coastal Area Cruising Ability 24h Transport Package in Container/Bulk Ship Specification Customized Trademark Julong Origin China HS Code 89051000 Production Capacity 50 Sets/Year

Product Description

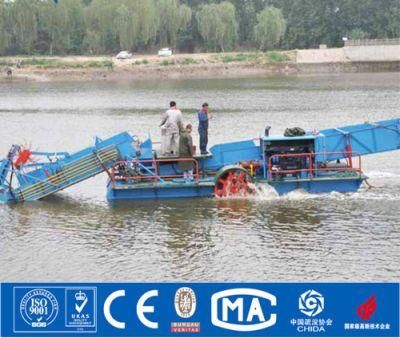

Julong New Garbage Salvage Ship/Aquatic Weed Harvester


Product Description:
Julong Garbage Salvage Ship/Aquatic Weed Harvester can remove aquatic plant from sea bottom completely, including the root. It's equipped with a hobbing cutter to dig sand and aquatic plant from the seabed. The aquatic plant will be collected by the front chain belt and stored by the back chain belt. When the back chain belt is full, the machine will sail to the bank or some barges to discharge the aquatic plant out.

Specification:

Length Overall	16m	Collecting Width	1.5m
Total Width	3.95m	Displacement	18.2t
Total Depth	4.8m	Loading Capacity	3t
Pontoon Length	11.6m	Engine Power	110kw
Pontoon Depth	0.95m	Designed Speed	10km/h
Pontoon Width	4m	Working Speed	3km/h
Full Loaded Draft	0.5m	Cruising Ability	24h
Empty Loaded Draft	0.4m	Propelling Method	Paddle Wheels

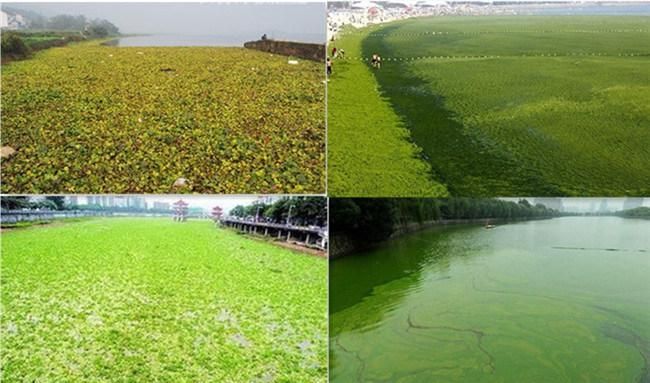

Working Area:


How the harvester work
1. The full automatic aquatic weed harvester is used to clean the aquatic weed, water hyacinth, reed, floating garbage etc.

2. The full automatic aquatic weed harvester is one of engine, propelled by two paddle wheels with hydraulic system. It's fully automatic aquatic weed harvester. It is equipped with horizontal cutter under the front collecting convryor, and also with anti-crash protection device to protect cutter motor, and with rotary cutting device at both sides of the collecting cabin.

3. The collecting cabin could move up and down by the hydraulic lifting system. It will be adjusted according to the collecting depth. Front collecting cabin, middle collecting cabin and rear collecting cabin are all conveyed by stainless steel conveyor belt.

4. It can be remotely controlled in the operation cabin including the navigation, collecting water weed, collecting floating trash and unloading job.

Workflow Chart:


Product Show:

                    Product in Workshop                                   Product in Work Site

Our Certificates:


Any interesting in our product, please feel free to contact me!

Welcome to Julong!
