• Model NO.：YZLXQ140
• Application：All
• Appearance：Uniaxial
• Condition：New
• Customized：Non-Customized
• Press Materials：Peanut, Palm Kernel, Sunflower, Cottonseed, Soybean
• Processing Capacity：9-11tons,24h
• Size：2120*1610*2000mm
• Driving Force：Electricity
• Press Method：Hot or Cold Press
• Oil Press Power：18.5 or 22kw
• Power for Filtration：1.5kw
• Temperature Cotrol Power：3.0kw
• Oil Content of Dry Cake：<7.6%
• Weight：1360kg
• Spiral Axes Rotate Speed：32-46r,Min
• Advantage：Press Ability Is Stronger, Oil Yield Is Higher
• Port：Shanghai, Qingdao, Ningbo, Chongqing.etc
• Transport Package：Fumigated Wooden Box Packing or as Per Customer′s
• Specification：ISO, SGS, BV
• Trademark：GUAGNXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

Basic Info.

Model NO. YZLXQ140 Application All Appearance Uniaxial Condition New Customized Non-Customized Press Materials Peanut, Palm Kernel, Sunflower, Cottonseed, Soybean Processing Capacity 9-11tons/24h Size 2120*1610*2000mm Driving Force Electricity Press Method Hot or Cold Press Oil Press Power 18.5 or 22kw Power for Filtration 1.5kw Temperature Cotrol Power 3.0kw Oil Content of Dry Cake <7.6% Weight 1360kg Spiral Axes Rotate Speed 32-46r/Min Advantage Press Ability Is Stronger, Oil Yield Is Higher Port Shanghai, Qingdao, Ningbo, Chongqing.etc Transport Package Fumigated Wooden Box Packing or as Per Customer′s Specification ISO, SGS, BV Trademark GUAGNXIN Origin Sichuan, China HS Code 8479200 Production Capacity 400 PCS/Month

Product Description

YZLXQ140 Combined Sunflower Peanut Soybean Palm Oil Press Machine with Air Pressure with Capacity 9-11TPD

30YEARS FACTORY OF OIL PRESS MACHINE ---GUANGXINOil Press Oil Mill Oil Extraction Oil Processing Machine Oil Filter Oil Refinery Seeds Roaster Machine

Suitable oil seeds

Guangxin Brand spiral oil press made by our company is suitable for squeezing many kinds of vegetable oil, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds, sesame seeds, corn germ, palm kernel, etc.

COMBINED SPIRAL OIL PRESS YZLXQ140
Processing Capacity (t/24h) 9-11Tons Per Day

Applicable oil producing business 1. Small or medium oil refinery use it on oil production line. 2. Personal users use it in farmer's market, either to make oil to sell or for clients with supplied material and earn the processing fee. Client could see how the oil being extracted from the machine, so trust the oil quality. This type of business is very popular in developping and undevelopping countries.
 Guangxin Single Oil Press Machine Processing Capacity 1.3~20TPD (t/24h)

Model	Processing Capacity (t/24h)	Motor Power (kw)	Weight (kg)	Measurement(mm)(L*W*H)	Oil Content of Dry cakes (%)	Spiral Axes Rotate Speed (r/min)
YZYX70	1.3	4	195	1180*405*1120	≤7.8	33-42
YZYX90	3	5.5	285	1250*550*1140	≤7.8	32-42
YZYX10(95)	3.5-4	7.5 or 11	528	1650*730*1340	≤7.8	32-40
YZYX10-6/8/9	4.5	11	590	1760*730*1340	≤7.8	32-40
YZYX10J-2	4.5	11	600	1770*730*1340	≤6.0	32-40
YZYX120	6.5	11 or 15	680	1860*740*1275	≤7.0	28-40
YZYX130	8	15 or 18.5	825	2020*742*1420	≤7.6	32-40
YZYX140	9-11	18.5 or 22	806	2010*750*1430	≤7.6	32-40
YZYX120J	7	11 or 15	718	2110*780*1350	≤6.0	35-40
YZYX130GX	8-10	18.5	998	2100*820*1400	≤7.8	30-40
YZYX140GX	9-11	18.5 or 22	1000	2150*820*1420	≤7.8	30-40
YZYX140CJ	9-11	22	980	2220*750*1420	≤7.8	32-40
YZYX140CJGX	9-11	22	1100	2300*820*1420	≤7.8	30-40
YZYX168	20	37 or 45	1820	2750*1100*1830	≤7.4	36-44

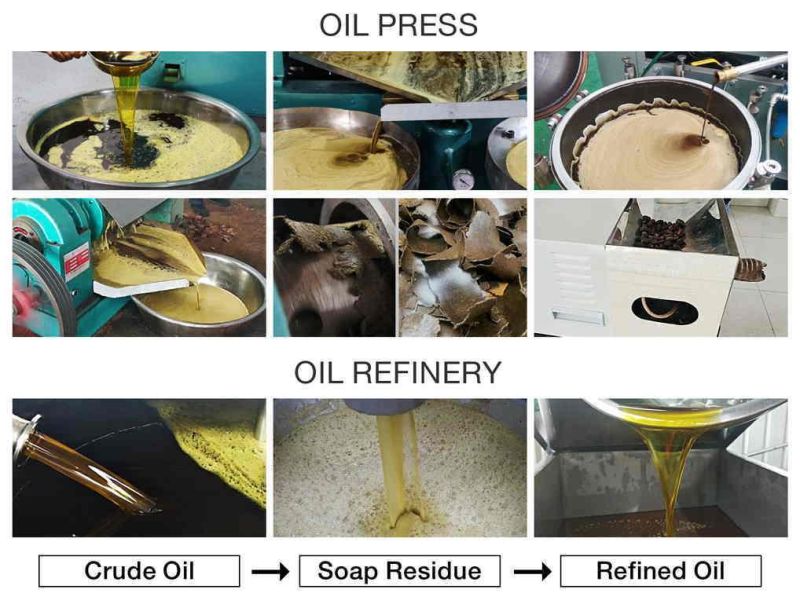

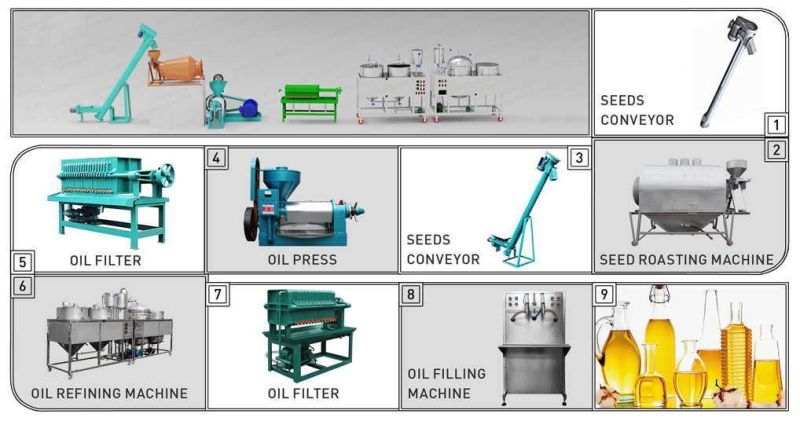

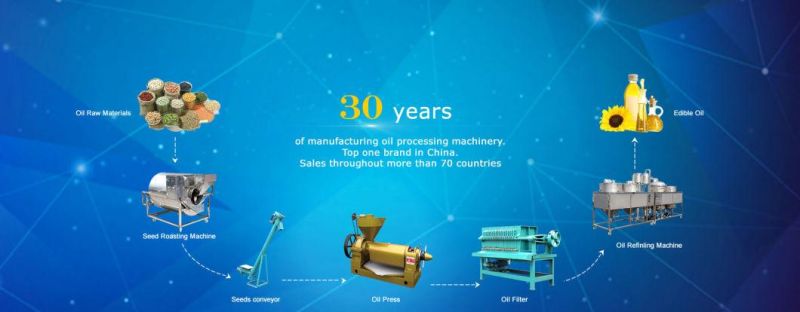

OIL MAKING PROCESS

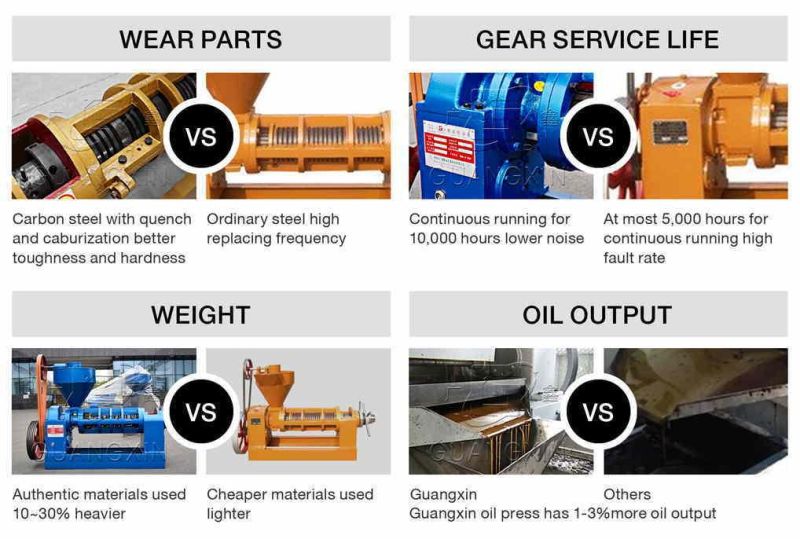

COMPARED WITH PEER

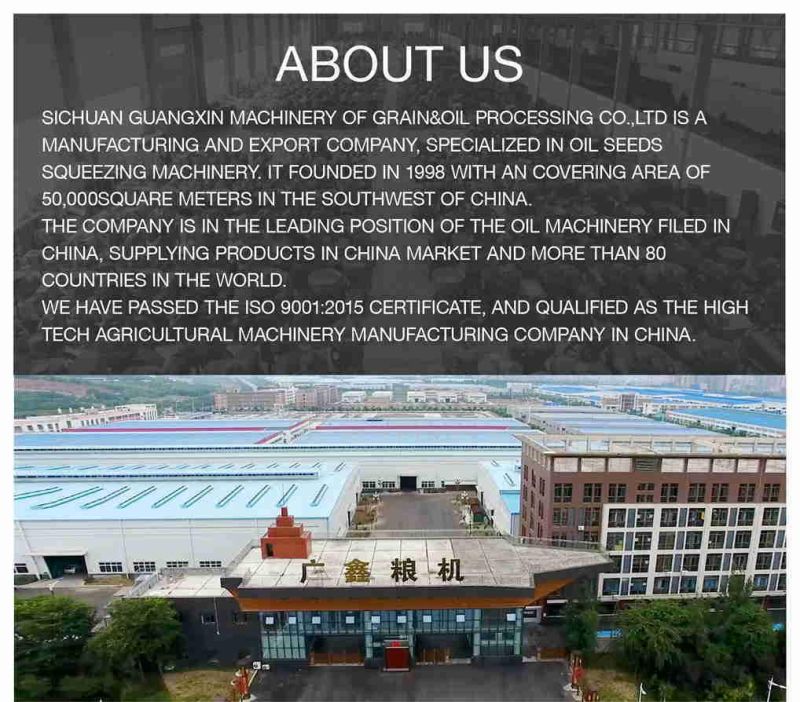

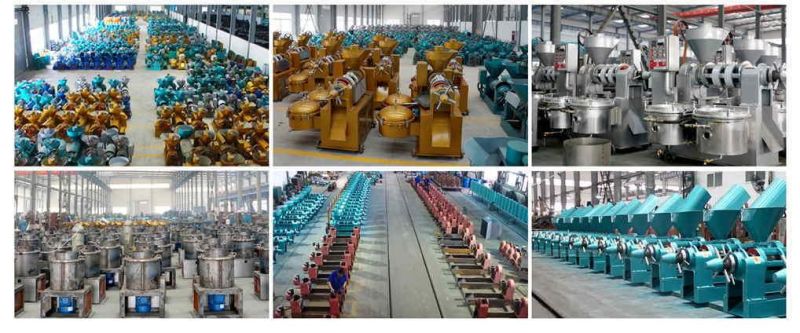

Company Information



 We will appreciated if these following 2 tips contained in your inquiry.
Tips1.The raw material is:_______
Tips2.The capacity of the machine you need is:______
Thank you and looking forward to your inquiry,we will response immediately.

Make order right now! And why?

One of our clients called us for buying wearing parts and he told us that his machine bought from us in 1990s. Its really! So, don't worry about the quality. Its beter than your think!


30YEARS FACTORY ---------- your honest partner
