• Model NO.：3WPZ-5000GX4
• Power Supply：Diesel Engine

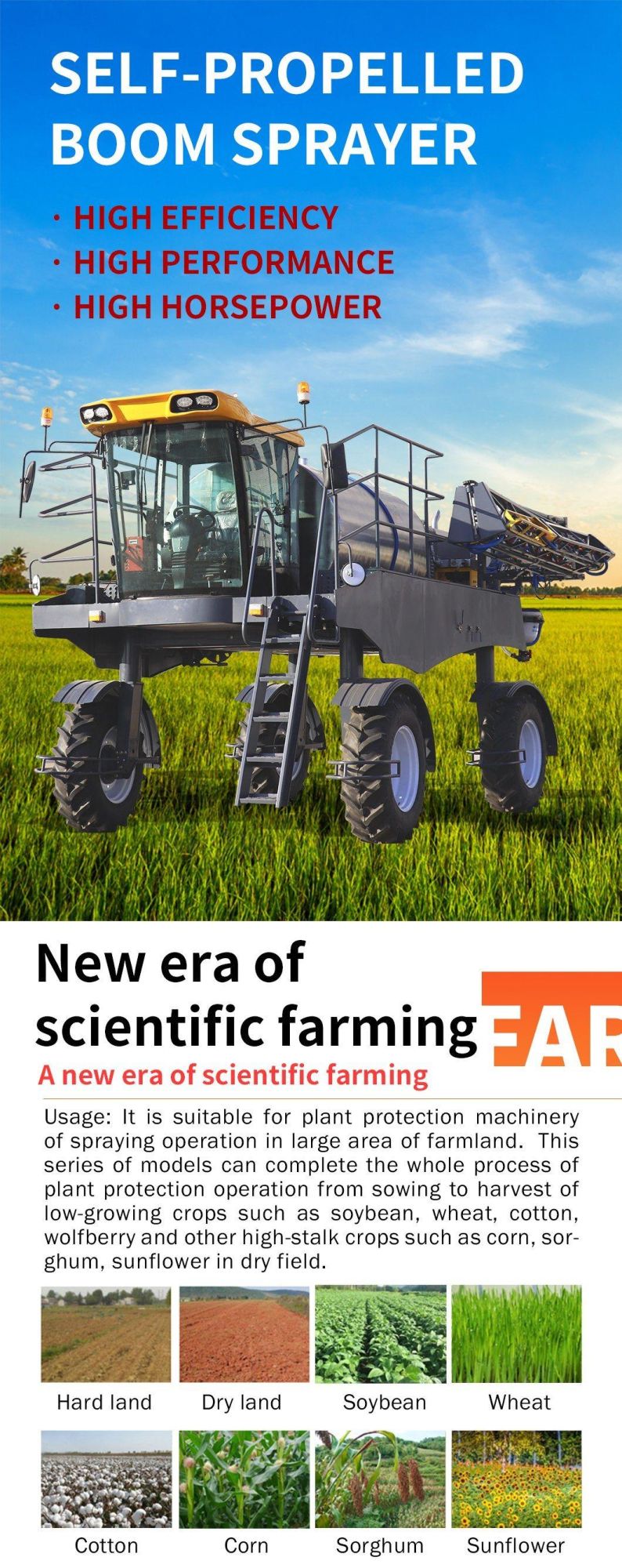

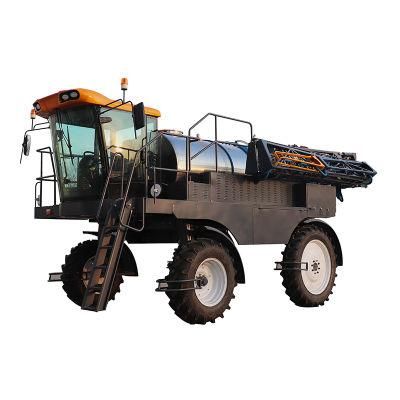

• Type：Self Propelled Boom Sprayer
• Boom：27m
• Ground Clearance：1.7m
• Transport Package：Standard Package for Export
• Specification：7700x4200x3800mm
• Trademark：YAODA
• Origin：China
• HS Code：8424490000
• Production Capacity：30 PCS,Month

Basic Info.

Model NO. 3WPZ-5000GX4 Power Supply Diesel Engine Type Self Propelled Boom Sprayer Boom 27m Ground Clearance 1.7m Transport Package Standard Package for Export Specification 7700x4200x3800mm Trademark YAODA Origin China HS Code 8424490000 Production Capacity 30 PCS/Month

Product Description

Model	3WPZ-4000GX2	3WPZ-5000GX4
Engine model	FAW CA4DF3-14GAG3U 4-clinders turbocharged diesel engine	FAW CA4DF3-14GAG3U 4-clinders turbocharged diesel engine
Power / speed	103kWt/140hp 2300r/min	103kWt/140hp 2300r/min
Displacement level	Displacement is 4.75L China III	Displacement is 4.75L China III
Bore and Stroke	110x125mm	110x125mm
Compression ratio	17:1	17:1

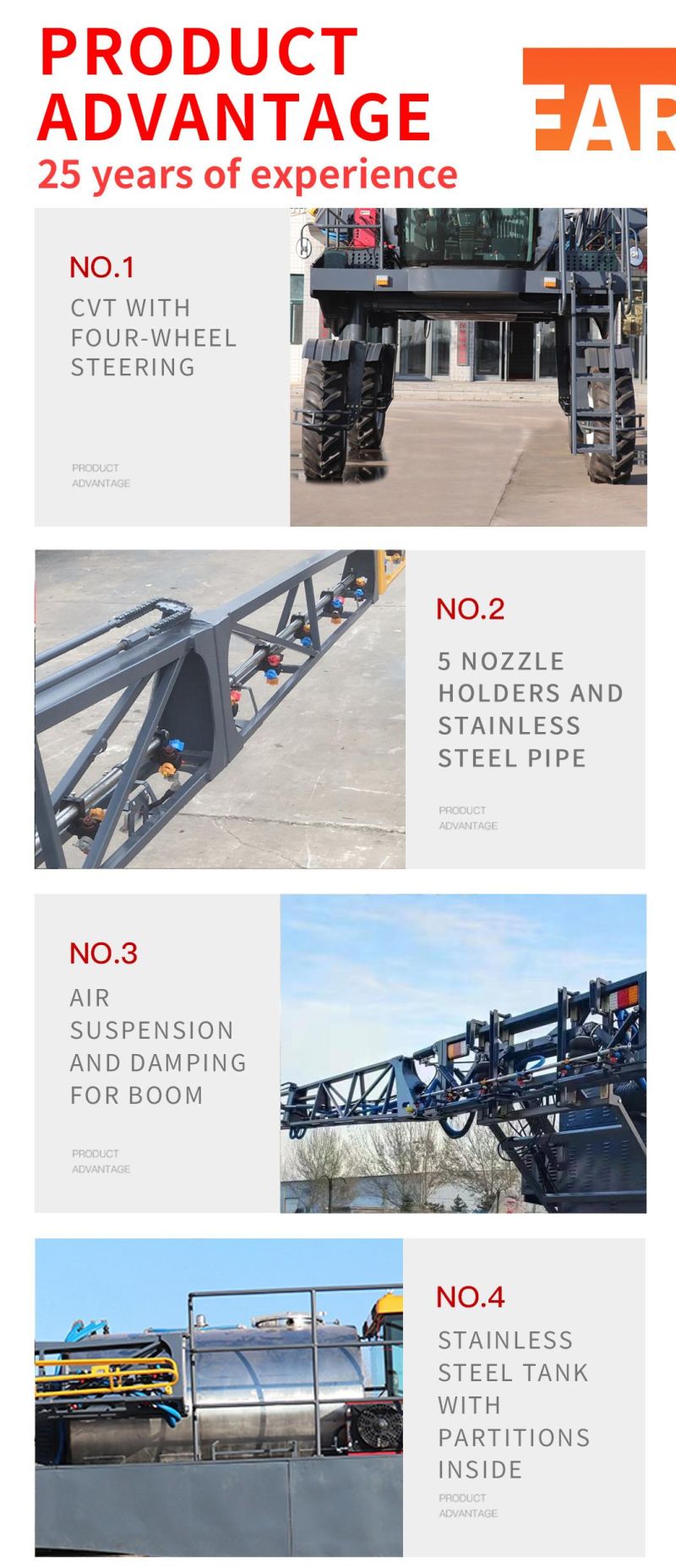

Gear	CVT	CVT
Drive mode	Two-wheel drive,mechanical parking break	Four-wheel drive,mechanical parking break
Steering mode	Hydraulic steering	Hydraulic steering
Tank	stainless steel tank with partitions inside	stainless steel tank with partitions inside
Tank capacity	4000L	5000L
Mixing way	Jet mixing - premixer in the tank	Jet mixing - premixer in the tank
Chemical mixer	ARAG brand mixer	ARAG brand mixer
Folding way	Hydraulic folding	Hydraulic folding
Boom	24M	27M
Ground clearance	1.5M	1.7M
Wheel track	2.8M(fixed)	2.6-3.2m
Walking speed	Max 30km/h without working. 18km/h is working speed on the field for spraying	Max 30km/h without working. 18km/h is working speed on the field for spraying
Overall dimension	6700x4200x3600mm	7700x4200x3800mm
Weight	7700kg	8500kg
Pump type	6-cylinders diaphragm pump	6-cylinders diaphragm pump
Pump model	MB6360	MB6360
Pump pressure	3.0Mpa	3.0Mpa
Pump flow	360L/min	360L/min
Pump speed	≤600r/min	≤600r/min
Spray height	0.5-3.0m	0.5-3.0m
Nozzle model	F110-02, F110-03, F110-04, F110-05, F110-06 (5 nozzle holders)	F110-02, F110-03, F110-04, F110-05, F110-06 (5 nozzle holders)
Nozzle flow	0.8L/min,1.2L/min,1.6L/min, 2.0L/min, 2.4L/min (5 nozzle holders)	0.8L/min,1.2L/min,1.6L/min, 2.0L/min, 2.4L/min (5 nozzle holders)
Distance between nozzles	50cm	50cm
Spray angle	110 °	110 °
System work pressure	0.3-0.5Mpa	0.3-0.5Mpa
3 filtration system	Tank inlet, pump inlet, nozzle	Tank inlet, pump inlet, nozzle
Battery	12V/120AH	12V/120AH
Front tire model	14.9-26 12ply, load 2360kg (dia1280mm)	14.9-26 12ply, load 2360kg (dia1280mm)
Rear tire model	13.6-38 10ply, load 2215kg (dia1520mm)	14.9-26 12ply, load 2360kg (dia1280mm)
Cleaner water tank	22L	22L
Fuel tank capacity	150L	150L
Hydraulic oil tank capacity	90L	90L
Spray system	Electric control,Premixer,Automatic spray system	Electric control,Premixer,Automatic spray system
Main pump control switch	Yes	Yes
Mixer inside of tank	Yes	Yes
Tank cleaning system	Yes	Yes
Locks on lifting cylinders for the boom	Yes	Yes
N type support for lifting boom	Yes	Yes

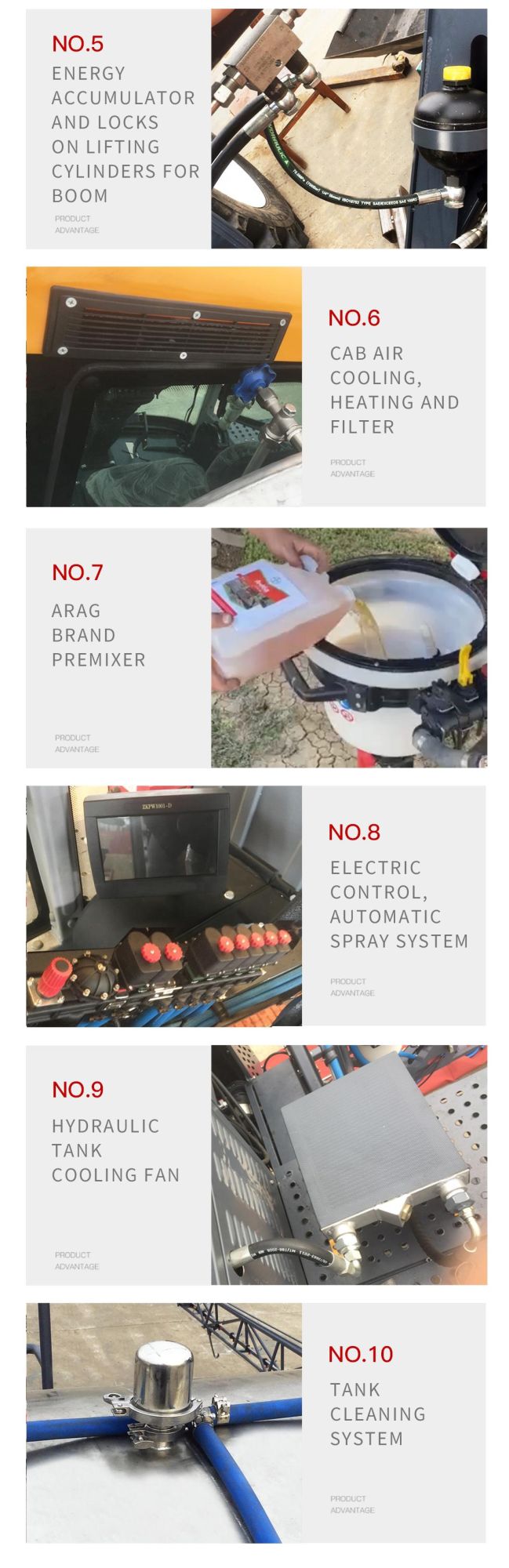

Energy accumulator on boom	Yes	Yes
Air suspension and damping on boom	Yes	Yes
1"stainless steel spraying pipes	Yes	Yes
Working light on booms	Yes	Yes
Protection shields under all machine	Yes	Yes
Protectors on boom against hitting the ground	Yes	Yes
Wheels fenders ,Wheels deviders	Yes	Yes
Self filling with water	Yes(gasoline water pump with hoses)	Yes(gasoline water pump with hoses)
Backup camera	Yes	Yes
Cab air cooling	Yes	Yes
Cab heating	Yes	Yes
Cab filter	Yes	Yes
Door ventilation device	Yes	Yes
Rubber under the tank	Yes	Yes
Rubbers on booms for striking	Yes	Yes
Rubbers on position of boom	Yes	Yes
Hydraulic tank cooling fan	Yes	Yes
