• Model NO.：WLJ600 fertilizer making machine
• Certification：CE
• Color：Selected
• Name：Wlj600 Fertilizer Making Machine
• Pellet Size：2-5mm
• Pellets Shape：Ball Pellets
• Press：Clay , Poultry Manure.....
• Weight：3t
• Capacity：1-1.5t,H
• Power：45kw
• Transport Package：Suitable for Sea Transport
• Specification：CE ISO SGS
• Trademark：YULONG
• Origin：Shandong, China
• HS Code：84793000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. WLJ600 fertilizer making machine Certification CE Color Selected Name Wlj600 Fertilizer Making Machine Pellet Size 2-5mm Pellets Shape Ball Pellets Press Clay , Poultry Manure..... Weight 3t Capacity 1-1.5t/H Power 45kw Transport Package Suitable for Sea Transport Specification CE ISO SGS Trademark YULONG Origin Shandong, China HS Code 84793000 Production Capacity 100 Sets Per Month

Product Description

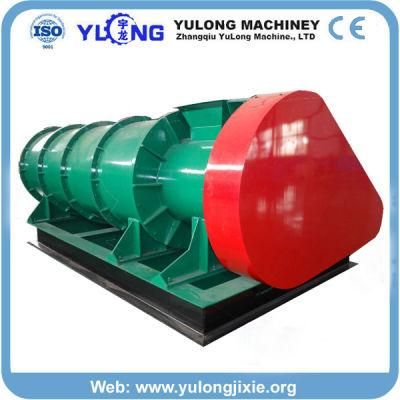

Introduction to Manufacturer Fertilizer Making Machine  CE

1). Summary of Manufacturer Fertilizer Making Machine  CE

We have specialized in R&D organic fertilizer equipment 15 years, since established in 1998and have got many innovation in this field.
The WLJseries organic fertilizer granulator is our latest innovation which have been patented by the National Patent office.
The WLZL adopt special granulating theory, which is low consumption but high efficiency.

2). Working theory for Manufacturer Fertilizer Making Machine  CE

The inner rotor of WLJseries organic fertilizer granulator rotate centrifugally with high speed, when it working.

At the same time the powder material is fed into the inner rotor by the frequency screw automatically.
Under the action of centrifugal force, the powder material rotate centrifugally with high speed in the cylinder

Creating enormous friction and high temperature, in which condition
The organic powder material will have adhesiveness and be formed to ball shape.

3). Main characteristics of Manufacturer Fertilizer Making Machine  CE

1. WLJOrganic fertilizer granulator adopts special shaping and granulating theory, no need die pelletizing,
So the processing cost is low and efficiency is high.

2. The final granule produced by WLJOrganic fertilizer granulator have smooth surface, high uniform size, good fluidity, high density etc.

3. The temperature reach to 60-100 ° C in the granulating cylinder when the WLJgranulator working, which will reducing the drying cost greatly.

4. The formation rate of WLJgranulator >95%, which have been approved by ISO9001 and other authorities.

5. The using cost of WLJfertilizer granulator is very low compare to other die pelletizing granulator.

Model	Power(kw)	External Diameter(mm)	Length(mm)	Capacity(t/h)
WLJ600	45	630	4400	1 -1.5
WLJ800	75	820	4500	1.5-3
WLJ1000	110	1020	4500	3 - 5
WLJ1200	132	1220	4500	4 - 6
WLJ1400	160	1420	4500	5 .5 -8
