• Model NO.：TZY500
• Portable Harvester Type：Melon Seed Harvester
• Certification：ISO9001:2008, CE
• Color：Blue
• Condition：New
• Application Field：Agriculture
• Name：Melon Seeds Extruder Machine
• Model：Tzy500
• Capacity：More Than 200kg,H
• Cleaning Rate：More Than 80%
• Breakage Rate：Less Than 5.0%
• Efficiency：3-5km,H
• Structural Quality：About 378kg
• Size：2000X1750X1450mm
• Min Power Needed：18(25)Kw,HP
• Max Power Limited：33(45)Kw,HP
• Transport Package：Fumigation-Free Wooden Box Packaging
• Specification：2000x1750x1450mm
• Origin：China
• HS Code：84335100
• Production Capacity：50pieces,Month

Basic Info.

Model NO. TZY500 Portable Harvester Type Melon Seed Harvester Certification ISO9001:2008, CE Color Blue Condition New Application Field Agriculture Name Melon Seeds Extruder Machine Model Tzy500 Capacity More Than 200kg/H Cleaning Rate More Than 80% Breakage Rate Less Than 5.0% Efficiency 3-5km/H Structural Quality About 378kg Size 2000X1750X1450mm Min Power Needed 18(25)Kw/HP Max Power Limited 33(45)Kw/HP Transport Package Fumigation-Free Wooden Box Packaging Specification 2000x1750x1450mm Origin China HS Code 84335100 Production Capacity 50pieces/Month

Product Description

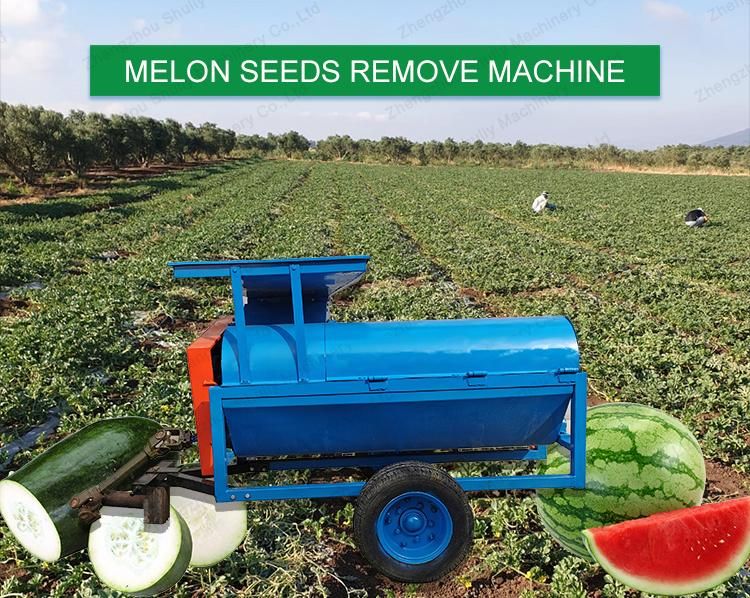

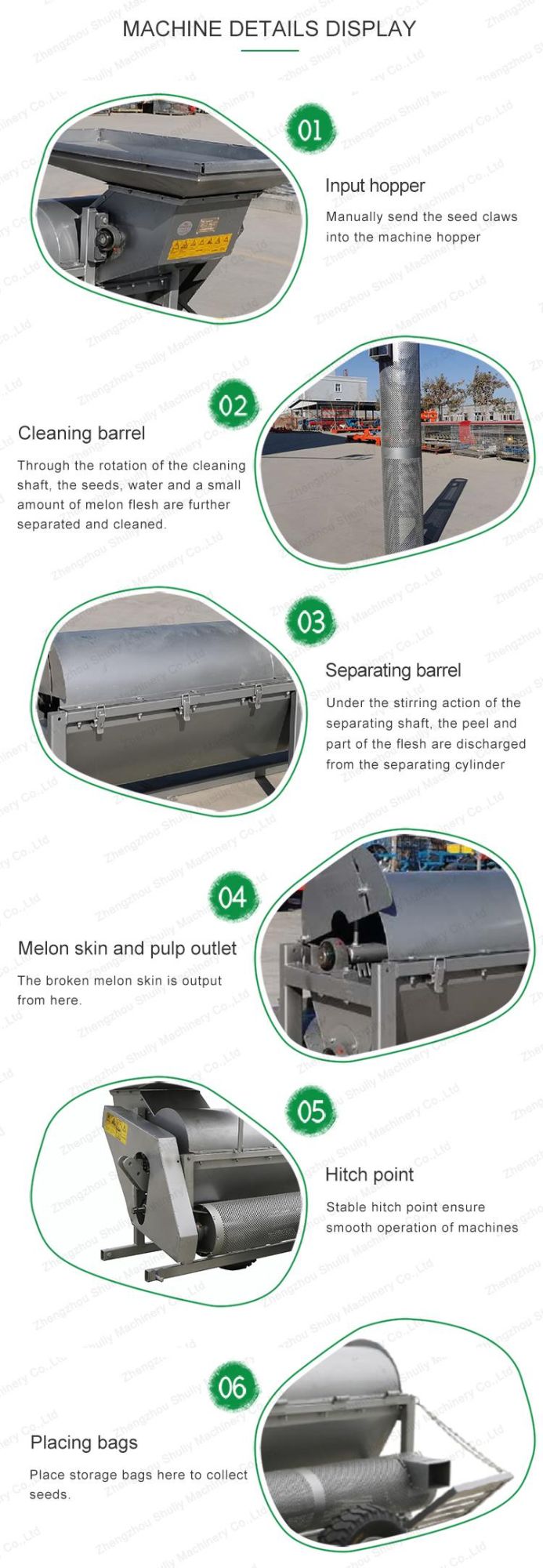

Melon Seeds Remove Machine is a compound work tool that can complete multiple operations such as crushing, squeezing, separation, and cleaning at one time. This machine is mainly used for harvesting and deseeding of pumpkins, watermelons and other melons.

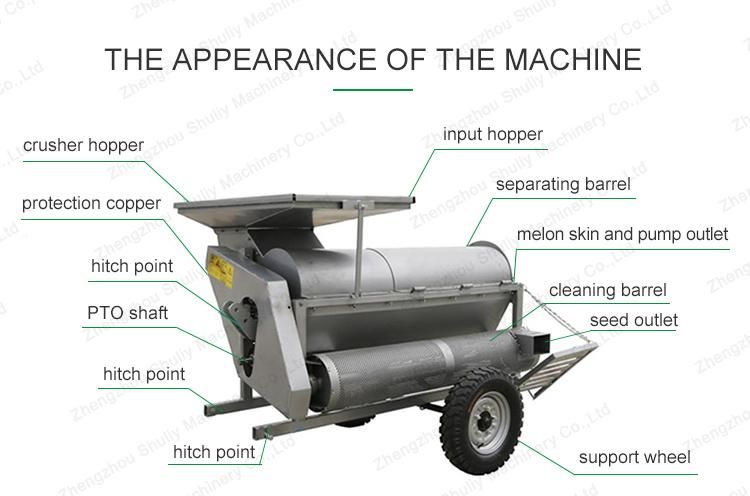

The appearance of this product is fully configured, and the configuration and color of the purchased product are subject to the actual order. The drive shaft and supporting wheel are optional parts. Please note that different models are slightly different. The power input can be changed to electric motor, diesel engine, etc. according to user requirements.

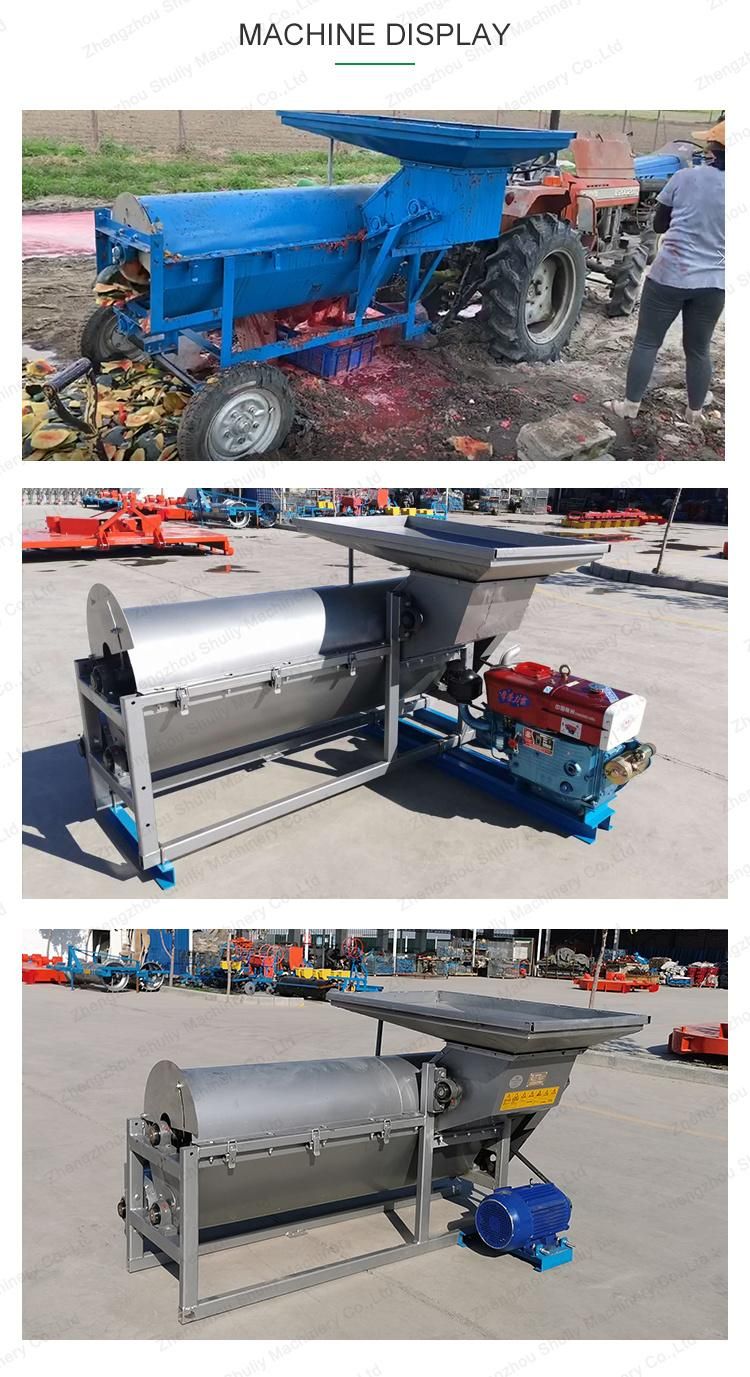

The machine can be drived by tractor , electric motor or diesel engine , you can chose one according to your need .Maintenance1.Before starting any maintenance and repair work, the machine must be steadily placed on the ground;
2. If you need to raise the tool for maintenance, be sure to support the tool firmly;
3. Regularly check whether the bolts and nuts are tight.If the protective device that is easy to wear is damaged, please replace it immediately;
4. Before repairing the tractors and implements, first remove the cables from the generator and battery;
5. Use cold or warm water to flush the mud on the machine, but pay special attention not to spray directly on the bearing parts.
6.if necessary, you can use a degreasing agent, but not acid or alkaline cleaning agents.
